dsp.CICCompensationDecimator

Compensate for CIC decimation filter using FIR decimator

Description

You can compensate for the shortcomings of a CIC decimator, namely its passband droop and wide transition region, by following it with a compensation decimator. This System object™ lets you design and use such a filter.

To compensate for the shortcomings of a CIC filter using an FIR decimator:

  1. Create the dsp.CICCompensationDecimator object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Description

ciccompdec = dsp.CICCompensationDecimator returns a System object, ciccompdec, that applies an FIR decimator to each channel of an input signal. Using the properties of the object, the decimation filter can be designed to compensate for a preceding CIC filter.

ciccompdec = dsp.CICCompensationDecimator(decim) returns a CIC compensation decimator System object, with the DecimationFactor property set to decim.

ciccompdec = dsp.CICCompensationDecimator(cic) returns a CIC compensation decimator System object, with the CICRateChangeFactor, CICNumSections, and CICDifferentialDelay properties specified in the dsp.CICDecimator System object, cic.

ciccompdec = dsp.CICCompensationDecimator(cic,decim) returns a CIC compensation decimator System object, ciccompdec, with the CICRateChangeFactor, CICNumSections, and CICDifferentialDelay properties specified in the dsp.CICDecimator System object cic, and the DecimationFactor property set to decim.

ciccompdec = dsp.CICCompensationDecimator(___,Name=Value) returns a CIC compensation decimator object with properties specified by one or more name-value pair arguments. Unspecified properties have default values.

example

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Specify the rate-change factor of the CIC filter being compensated as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the number of sections of the CIC filter being compensated as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the differential delay of the CIC filter being compensated as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the decimation factor of the compensator System object as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Since R2024a

Option to set frequencies in normalized units, specified as one of these values:

  • true –– The passband frequency Fpass and stopband frequency Fstop must be in the normalized frequency units and must be in the range Fpass < Fstop < 1.0.

    When you set the NormalizedFrequency property to true while creating the object and you do not set the passband and stopband frequencies, the object automatically sets the default values to normalized frequency units using the default sample rate of 1200 kHz.

    ciccompdec = dsp.CICCompensationDecimator(NormalizedFrequency=true)

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 0.1667
            StopbandFrequency: 0.6667
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


    When you set the NormalizedFrequency property to true after you create the object, you must specify the passband and stopband frequencies in normalized units before you run the object algorithm.

    ciccompdec = dsp.CICCompensationDecimator
    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: false
        DesignForMinimumOrder: true
            PassbandFrequency: 100000
            StopbandFrequency: 400000
               PassbandRipple: 0.1000
          StopbandAttenuation: 60
                   SampleRate: 1200000


    To specify the normalized frequency value, set NormalizedFrequency to true and manually convert the frequency value in Hz to the normalized value using the input sample rate in Hz. For example, if the input sample rate Fs is 1200 kHz, the corresponding passband frequency value in normalized units is FpassHz/(Fs/2) and the corresponding stopband frequency in normalized units is FstopHz/(Fs/2).

    ciccompdec = dsp.CICCompensationDecimator;
    ciccompdec.NormalizedFrequency = true;
    ciccompdec.PassbandFrequency = 100000/(1200000/2);
    ciccompdec.StopbandFrequency = 400000/(1200000/2)

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 0.1667
            StopbandFrequency: 0.6667
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


  • false –– The passband and stopband frequency values are in Hz. You can specify the input sample rate through the SampleRate property.

Data Types: logical

Specify whether to design a filter of minimum order or a filter of specified order as a logical scalar. The default is true, which corresponds to a filter of minimum order.

Specify the order of the decimation compensator filter as a positive integer scalar.

Dependencies

To enable this property, set the DesignForMinimumOrder property to false.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Passband edge frequency Fpass, specified as a positive real scalar in Hz or in normalized frequency units (since R2024a).

If you set the NormalizedFrequency property to:

  • false –– The value of the passband frequency is in Hz and must be in the range Fpass < Fstop < Fs/2, where Fstop is the stopband frequency and Fs is the input sample rate.

  • true –– The value of the passband frequency is in normalized frequency units and must be in the range Fpass < Fstop < 1.0.

    When you set the NormalizedFrequency property to true while creating the object and you do not set the passband frequency, the object automatically sets the default passband frequency to normalized frequency units using the default sample rate of 1200 kHz.

    ciccompdec = dsp.CICCompensationDecimator(NormalizedFrequency=true)

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 0.1667
            StopbandFrequency: 0.6667
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


    When you set the NormalizedFrequency property to true after you create the object, you must specify the passband frequency in normalized units before you run the object algorithm.

    ciccompdec = dsp.CICCompensationDecimator

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: false
        DesignForMinimumOrder: true
            PassbandFrequency: 100000
            StopbandFrequency: 400000
               PassbandRipple: 0.1000
          StopbandAttenuation: 60
                   SampleRate: 1200000


    To specify the normalized frequency value, set NormalizedFrequency to true and manually convert the frequency value in Hz to the normalized value using half the input sample rate in Hz. For example, if the input sample rate Fs is 1200 kHz, the corresponding passband frequency value in normalized units is FpassHz/(Fs/2).

    ciccompdec.NormalizedFrequency = true;
    ciccompdec.PassbandFrequency = 100000/(1200000/2)
    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 0.1667
            StopbandFrequency: 400000
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


(since R2024a)

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Stopband edge frequency Fstop, specified as a positive real scalar in Hz or in normalized frequency units (since R2024a).

If you set the NormalizedFrequency property to:

  • false –– The value of the stopband frequency is in Hz and must be in the range Fpass < Fstop < Fs/2, where Fpass is the passband frequency and Fs is the input sample rate.

  • true –– The value of the stopband frequency is in normalized frequency units and must be in the range Fpass < Fstop < 1.0.

    When you set the NormalizedFrequency property to true while creating the object and you do not set the stopband frequency, the object automatically sets the default stopband frequency to normalized frequency units using the default sample rate of 1200 kHz.

    ciccompdec = dsp.CICCompensationDecimator(NormalizedFrequency=true)

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 0.1667
            StopbandFrequency: 0.6667
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


    When you set the NormalizedFrequency property to true after you create the object, you must specify the passband frequency in normalized units before you run the object algorithm.

    ciccompdec = dsp.CICCompensationDecimator

    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: false
        DesignForMinimumOrder: true
            PassbandFrequency: 100000
            StopbandFrequency: 400000
               PassbandRipple: 0.1000
          StopbandAttenuation: 60
                   SampleRate: 1200000


    To specify the normalized frequency value, set NormalizedFrequency to true and manually convert the frequency value in Hz to the normalized value using half the input sample rate in Hz. For example, if the input sample rate Fs is 1200 kHz, the corresponding stopband frequency value in normalized units is FstopHz/(Fs/2).

    ciccompdec.NormalizedFrequency = true;
    ciccompdec.StopbandFrequency = 400000/(1200000/2)
    ciccompdec =
      dsp.CICCompensationDecimator with properties:

          CICRateChangeFactor: 2
               CICNumSections: 2
         CICDifferentialDelay: 1
             DecimationFactor: 2
          NormalizedFrequency: true
        DesignForMinimumOrder: true
            PassbandFrequency: 100000
            StopbandFrequency: 0.6667
               PassbandRipple: 0.1000
          StopbandAttenuation: 60


(since R2024a)

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the filter passband ripple as a positive real scalar expressed in decibels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the filter stopband attenuation as a positive real scalar expressed in decibels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the input sample rate Fs as a positive real scalar expressed in hertz.

Dependencies

To enable this property, set the NormalizedFrequency property to false.

Data Types: single | double

Fixed-Point Properties

Rounding method for output fixed-point operations, specified as a character vector. For more information on the rounding modes, see Precision and Range.

Word and fraction lengths of coefficients, specified as a signed or unsigned numerictype object. The default, numerictype(1,16) corresponds to a signed numeric type object with 16-bit coefficients and a fraction length determined based on the coefficient values, to give the best possible precision.

This property is not tunable.

Word length of the output is same as the word length of the input. Fraction length of the output is computed such that the entire dynamic range of the output can be represented without overflow. For details on how the fraction length of the output is computed, see Fixed-Point Precision Rules for Avoiding Overflow in FIR Filters.

Usage

Description

y = ciccompdecim(x) returns the filtered and downsampled values, y, of the input signal, x.

example

Input Arguments

expand all

Data input, specified as a vector or a matrix. The System object treats a Ki-by-N input matrix as N independent channels, decimating each channel over the first dimension.

The number of input rows Ki can be arbitrary and does not have to be a multiple of the decimation factor.

This object supports variable-size input signals, that is, the frame length (number of rows) of the signal can change even when the object is locked. However, the number of channels (columns) must remain constant.

This object does not support complex unsigned fixed-point data.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fi
Complex Number Support: Yes

Output Arguments

expand all

Filtered and downsampled signal, returned as a vector or matrix.

When the input is of size Ki-by-N, and Ki is not a multiple of the decimation factor M, the output signal has an upper bound size of ceil(Ki/M)-by-N. If Ki is a multiple of the decimation factor, then the output is of size (Ki/M)-by-N. The number of channels (columns) does not change.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fi
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

freqzFrequency response of discrete-time filter System object
freqzmrCompute DTFT approximation of impulse response of multirate or single-rate filter
filterAnalyzerAnalyze filters with Filter Analyzer app
infoInformation about filter System object
costEstimate cost of implementing filter System object
coeffsReturns the filter System object coefficients in a structure
outputDelayDetermine output delay of single-rate or multirate filter
polyphasePolyphase decomposition of multirate filter
generatehdlGenerate HDL code for quantized DSP filter (requires Filter Design HDL Coder)
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

collapse all

Create a dsp.CICCompensationDecimator object with default settings. While creating the object, set the NormalizedFrequency property to true so that the passband and the stopband frequencies are in normalized frequency units.

CICCompDecim = dsp.CICCompensationDecimator(...
    NormalizedFrequency=true)
CICCompDecim =
  dsp.CICCompensationDecimator with properties:

      CICRateChangeFactor: 2
           CICNumSections: 2
     CICDifferentialDelay: 1
         DecimationFactor: 2
      NormalizedFrequency: true
    DesignForMinimumOrder: true
        PassbandFrequency: 0.1667
        StopbandFrequency: 0.6667
           PassbandRipple: 0.1000
      StopbandAttenuation: 60

  Use get to show all properties

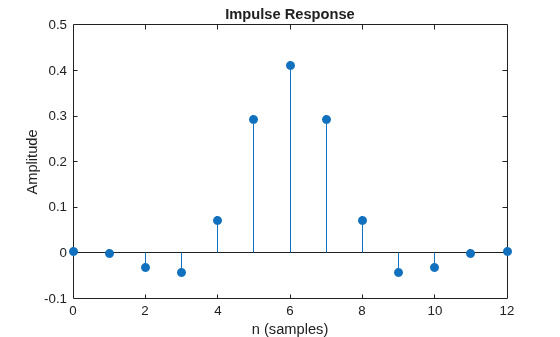

Plot the impulse response.

impz(CICCompDecim)

Figure contains an axes object. The axes object with title Impulse Response, xlabel n (samples), ylabel Amplitude contains an object of type stem.

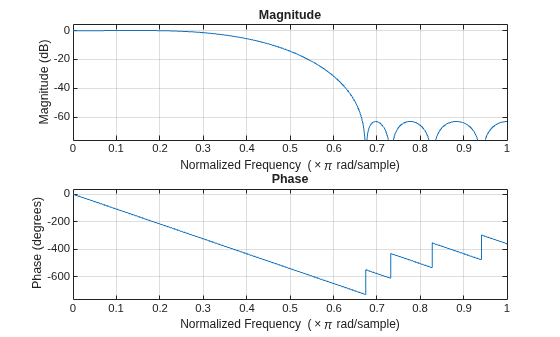

Plot the magnitude and phase responses.

freqz(CICCompDecim)

Figure contains 2 axes objects. Axes object 1 with title Phase, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Phase (degrees) contains an object of type line. Axes object 2 with title Magnitude, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.

Design a compensation decimator for an existing CIC decimator having six sections and a decimation factor of 6.

CICDecim = dsp.CICDecimator(DecimationFactor=6,...
    NumSections=6)
CICDecim =
  dsp.CICDecimator with properties:

      DecimationFactor: 6
     DifferentialDelay: 1
           NumSections: 6
    FixedPointDataType: 'Full precision'

Construct the compensation decimator. Specify a decimation factor of 2, an input sample rate of 16 kHz, a passband frequency of 4 kHz, and a stopband frequency of 4.5 kHz.

fs = 16e3;
fPass = 4e3;
fStop = 4.5e3;

CICCompDecim = dsp.CICCompensationDecimator(CICDecim,...
    DecimationFactor=2,PassbandFrequency=fPass,...
    StopbandFrequency=fStop,SampleRate=fs)
CICCompDecim =
  dsp.CICCompensationDecimator with properties:

      CICRateChangeFactor: 6
           CICNumSections: 6
     CICDifferentialDelay: 1
         DecimationFactor: 2
    DesignForMinimumOrder: true
        PassbandFrequency: 4000
        StopbandFrequency: 4500
           PassbandRipple: 0.1000
      StopbandAttenuation: 60
               SampleRate: 16000

  Show all properties

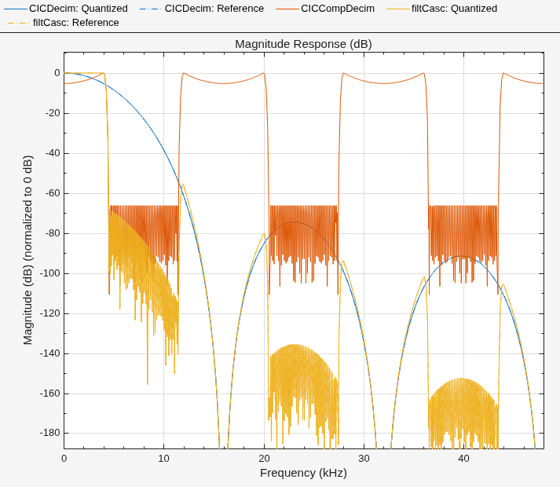

Visualize the frequency response of the cascade. Normalize all magnitude responses to 0 dB.

filtCasc = dsp.FilterCascade(CICDecim,CICCompDecim);

f = fvtool(CICDecim, CICCompDecim, filtCasc, ...
    Fs=[fs*6 fs fs*6]);

f.NormalizeMagnitudeto1 = 'on';
legend(f,'CIC Decimator','CIC Compensation Decimator', ...
    'Overall Response');

Figure Figure 2: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Frequency (kHz), ylabel Magnitude (dB) (normalized to 0 dB) contains 5 objects of type line. These objects represent CIC Decimator: Quantized, CIC Decimator: Reference, CIC Compensation Decimator, Overall Response: Quantized, Overall Response: Reference.

Apply the design to a 1200-sample random input signal. Store the decimated output along the first dimension of the y array.

x = dsp.SignalSource(fi(rand(1200,1),1,16,15),SamplesPerFrame=120);

y = fi(zeros(100,1),1,32,20);

for ind = 1:10
    x2 = CICDecim(x());
    y(((ind-1)*10)+1:ind*10,1) = CICCompDecim(x2);
end

Algorithms

The response of a CIC filter is given by:

Hcic(ω)=[sin(RDω2)sin(ω2)]N

R, D, and N are the rate change factor, the differential delay, and the number of sections in the CIC filter, respectively.

After decimation, the CIC response has the form:

Hcic(ω)=[sin(Dω2)sin(ω2R)]N

The normalized version of this last response is the one that the CIC compensator needs to compensate. Hence, the passband response of the CIC compensator should take the following form:

Hciccomp(ω)=[RDsin(ω2R)sin(Dω2)]Nforωωp<π

where ωp is the passband frequency of the CIC compensation filter.

Notice that when ω/2R ≪ π, the previous equation for Hciccomp(ω) can be simplified using the fact that sin(x) ≅ x:

Hciccomp(ω)[(Dω2)sin(Dω2)]N = [sinc(Dω2)]Nforωωp<π

This previous equation is the inverse sinc approximation to the true inverse passband response of the CIC filter.

Extended Capabilities

Version History

Introduced in R2014b

expand all
