# designHalfbandIIR

Design and implement halfband IIR filter in the form of a coupled allpass filter

Since R2023b

## Syntax

``[a0,a1] = designHalfbandIIR``
``[a0,a1] = designHalfbandIIR(Name=Value)``
``filtObj = designHalfbandIIR(Name=Value)``

## Description

``` `[a0,a1] = designHalfbandIIR` designs a halfband IIR filter in the form of a coupled allpass filter with the filter order of 17 by using the Butterworth design method. The function completes any unspecified design parameters with appropriate default values.`a0` and `a1` are the polynomial coefficients of the two allpass filters A0(z) and A1(z). These filters form the two branches of the coupled allpass filter. The transfer function of the IIR halfband filter is given by: $H\left(z\right)=0.5*\left[{A}_{0}\left({z}^{2}\right)+{z}^{-1}{A}_{1}\left({z}^{2}\right)\right],$The `designHalfbandIIR` function implements the allpass filters in the minimum multiplier form. For more information, see Algorithms.The System object™ argument is `false` by default. To implement the filter, assign the filter coefficients in `a0`, `a1` to one of the supported System objects.```

example

````[a0,a1] = designHalfbandIIR(Name=Value)` specifies options using one or more name-value arguments.For example, ```[a0,a1] = designHalfbandIIR(FilterOrder=30,TransitionWidth=0.2,DesignMethod="ellip")``` designs a halfband IIR filter with the filter order of 30 and transition width of 0.2 by using the Elliptic window design method.When you specify only a partial list of filter parameters, the function designs the filter by setting the other design parameters to their default values.The function supports two design methods. Each design method supports a specific set of design combinations. For more information, see `DesignMethod`.This function supports code generation under certain conditions. For more information, see Code Generation.```

example

````filtObj = designHalfbandIIR(Name=Value)` designs a halfband IIR filter and implements one of the supported System objects.This syntax applies when you set the `SystemObject` argument to `true`.```

## Examples

collapse all

Since R2024a

Design a quasi-linear IIR halfband filter with the order of 32 using the `designHalfbandIIR` function. Assign the filter coefficients to a coupled allpass filter.

`[a0,a1] = designHalfbandIIR(FilterOrder=32,DesignMethod="quasilinphase",Verbose=true)`
```designHalfbandIIR(FilterOrder=32, TransitionWidth=0.1, DesignMethod="quasilinphase", Structure="single-rate", SystemObject=false) ```
```a0 = 4×4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ```
```a1 = 4×4 0 0.8085 0 0.3051 0 0.0387 0 0.2695 0 -0.7054 0 0.2604 0 0.3546 0 -0.4386 ```

Construct the corresponding coupled allpass filter using the `cascade` and `parallel` functions. Alternatively, if you set the `SystemObject` argument of the `designHalfbandIIR` function to `true`, the function designs the same object.

```B0 = dsp.AllpassFilter(AllpassCoefficients=a0); B1 = dsp.AllpassFilter(AllpassCoefficients=a1); filtObj = cascade(parallel(B0,cascade(dsp.Delay, B1)),0.5)```
```filtObj = dsp.FilterCascade with properties: Stage1: [1x1 dsp.ParallelFilter] Stage2: 0.5000 CloneStages: true ```

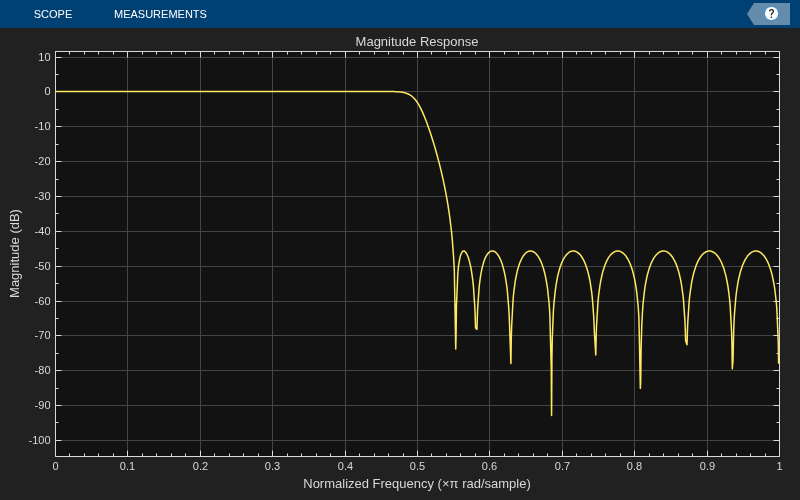

Create a `dsp.DynamicFilterVisualizer` object and visualize the magnitude response of the filter.

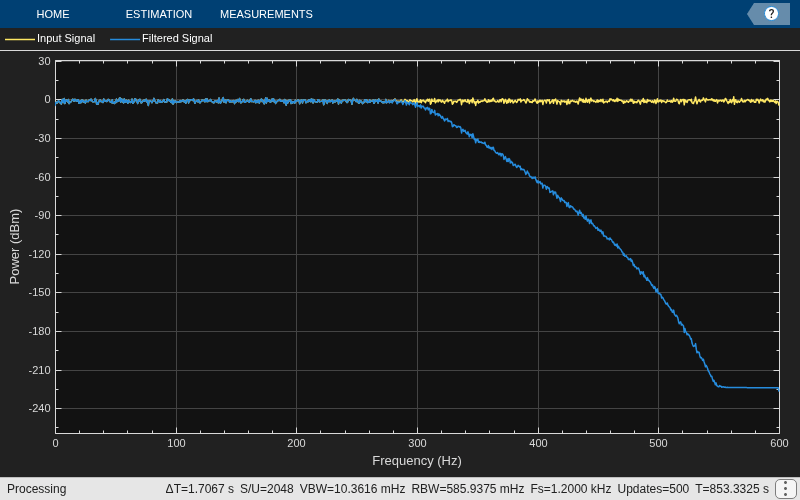

```dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true); dfv(filtObj);```

A quasi-linear IIR filter has a fairly constant group delay (hence almost linear phase) in the passband region of the filter.

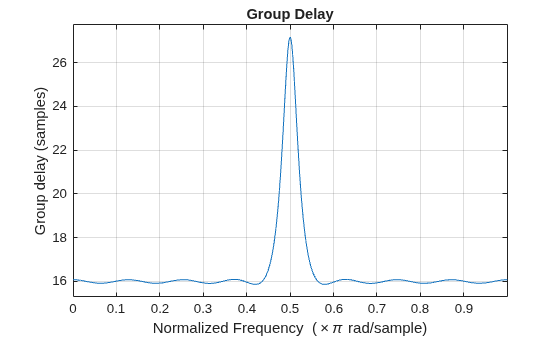

`grpdelay(filtObj)`

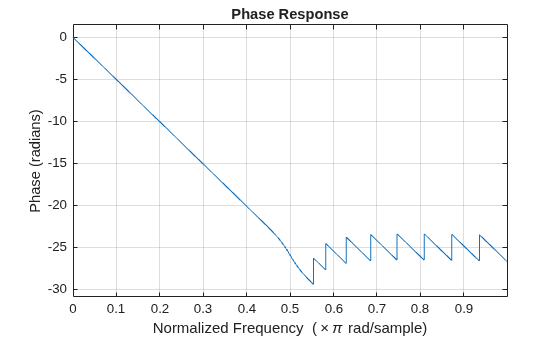

`phasez(filtObj)`

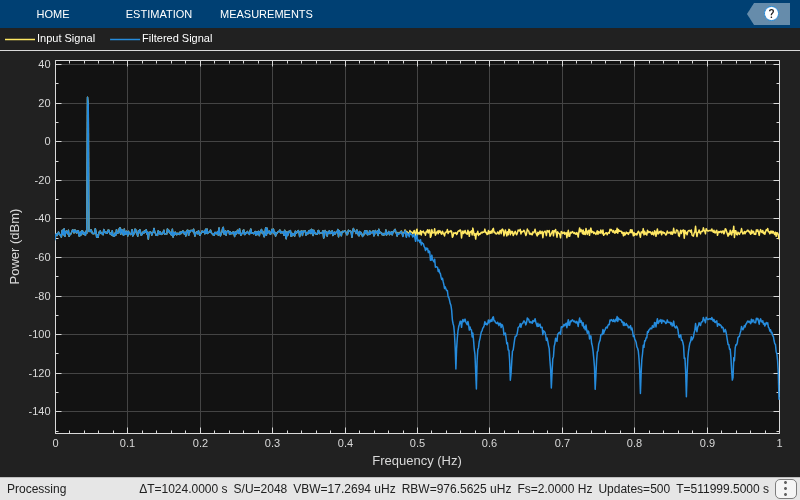

Create a `spectrumAnalyzer` object to visualize the spectra of the input and output signals.

```scope = spectrumAnalyzer(SampleRate=2, ... PlotAsTwoSidedSpectrum=false,... ChannelNames=["Input Signal","Filtered Signal"]);```

Stream in a noisy sinusoidal signal and filter the signal using the IIR halfband filter. The sinusoidal tone falls in the passband frequency of the filter and is therefore unaffected.

`sine = dsp.SineWave(Frequency=1000,SampleRate=44100,SamplesPerFrame=1024)`
```sine = dsp.SineWave with properties: Amplitude: 1 Frequency: 1000 PhaseOffset: 0 ComplexOutput: false Method: 'Trigonometric function' SamplesPerFrame: 1024 SampleRate: 44100 OutputDataType: 'double' ```
```for i = 1:1000 x = sine()+0.005*randn(1024,1); y = filtObj(x); scope(x,y); end```

Design a Butterworth IIR halfband filter with the order of 13 and construct the corresponding coupled allpass filter using the `designHalfbandIIR` function. Set the `SystemObject` argument of the function to `true`.

`filtObj = designHalfbandIIR(FilterOrder=13,Verbose=true,SystemObject=true)`
```designHalfbandIIR(FilterOrder=13, DesignMethod="butter", Structure="single-rate", SystemObject=true, Passband="lowpass") ```
```filtObj = dsp.FilterCascade with properties: Stage1: [1x1 dsp.ParallelFilter] Stage2: 0.5000 CloneStages: true ```

Create a `dsp.DynamicFilterVisualizer` object and visualize the magnitude response of the filter.

```dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true); dfv(filtObj);```

Create a `spectrumAnalyzer` object to visualize the spectra of the input and output signals.

```scope = spectrumAnalyzer(SampleRate=2, ... PlotAsTwoSidedSpectrum=false,... ChannelNames=["Input Signal","Filtered Signal"]);```

Stream in random data and filter the signal using the IIR halfband filter.

```for i = 1:1000 x = randn(1024, 1); y = filtObj(x); scope(x,y); end```

Design an elliptic IIR halfband decimator object of order 31 and a transition width of 0.1 using the `designHalfbandIIR` function. Set the `Verbose` argument to `true`.

```hbIIR = designHalfbandIIR(FilterOrder=31,SystemObject=true,... Structure='decim',Verbose=true)```
```designHalfbandIIR(FilterOrder=31, DesignMethod="butter", Structure="decim", SystemObject=true, Passband="lowpass") ```
```hbIIR = dsp.IIRHalfbandDecimator with properties: Main Specification: 'Coefficients' Structure: 'Minimum multiplier' HasPureDelayBranch: false AllpassCoefficients1: [8x1 double] AllpassCoefficients2: [7x1 double] HasTrailingFirstOrderSection: false Use get to show all properties ```

Create a `dsp.DynamicFilterVisualizer` object and visualize the magnitude response of the filter.

```dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true,YLimits=[-400 200]); dfv(hbIIR);```

The input is a cosine wave.

```Fs = 1; Fc = 0.03; input = cos(2*pi*Fc*(0:39)'/Fs);```

Decimate the cosine signal using the IIR halfband decimator.

`output = hbIIR(input);`

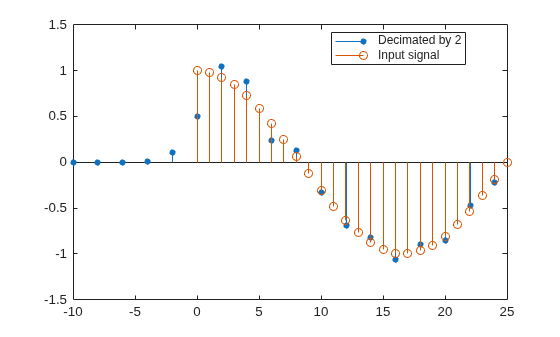

Plot the original and decimated signals. In order to plot the two signals in the same plot, you must account for the output delay introduced by the IIR halfband decimator and the scaling introduced by the filter. Use the `outputDelay` function to compute the `delay` introduced by the decimator. Shift the output by this delay value.

Visualize the input and the resampled signals. Due to the decimation factor of 2, the output samples coincide with every other input sample.

`[delay,FsOut] = outputDelay(hbIIR,FsIn=Fs,Fc=Fc)`
```delay = 9.9900 ```
```FsOut = 0.5000 ```
```nInput = (0:length(input)-1); tOutput = (0:length(output)-1)/FsOut-delay; stem(tOutput,output,'filled',MarkerSize=4); hold on; stem(nInput,input); hold off; xlim([-10,25]) legend('Decimated by 2','Input signal','Location','best');```

Design an elliptic IIR halfband interpolator object of order 31 and a transition width of 0.1 using the `designHalfbandIIR` function. Set the `Verbose` argument to `true`.

```hbIIR = designHalfbandIIR(FilterOrder=31,TransitionWidth=0.1,DesignMethod="ellip",... Structure='interp',SystemObject=true,Verbose=true)```
```designHalfbandIIR(FilterOrder=31, TransitionWidth=0.1, DesignMethod="ellip", Structure="interp", SystemObject=true, Passband="lowpass") ```
```hbIIR = dsp.IIRHalfbandInterpolator with properties: Specification: 'Coefficients' FilterBankInputPort: false Structure: 'Minimum multiplier' HasPureDelayBranch: false AllpassCoefficients1: [8x1 double] AllpassCoefficients2: [7x1 double] HasTrailingFirstOrderSection: false ```

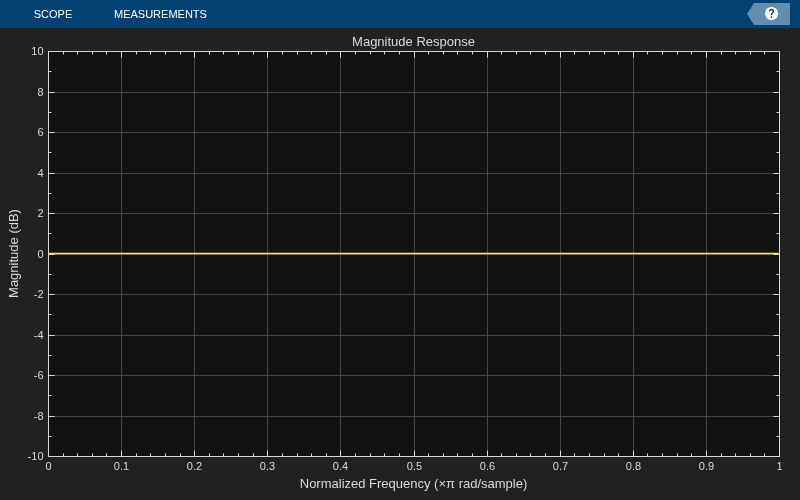

Create a `dsp.DynamicFilterVisualizer` object and visualize the magnitude response of the filter.

```dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true); dfv(hbIIR);```

The input is a cosine wave.

```Fs = 1; Fc = 0.08; input = cos(2*pi*Fc*(0:39)'/Fs);```

Interpolate the cosine signal using the IIR halfband interpolator.

`output = hbIIR(input);`

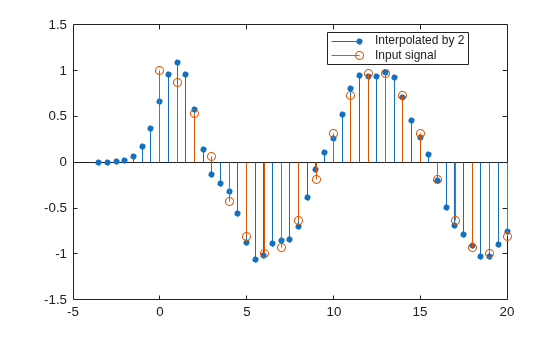

Plot the original and interpolated signals. In order to plot the two signals in the same plot, you must account for the output delay introduced by the IIR halfband interpolator and the scaling introduced by the filter. Use the `outputDelay` function to compute the `delay` introduced by the interpolator. Shift the output by this delay value.

Visualize the input and the resampled signals. The input and output values coincide every other sample, due to the interpolation factor of 2.

`[delay,FsOut] = outputDelay(hbIIR,FsIn=Fs,Fc=Fc)`
```delay = 3.5090 ```
```FsOut = 2 ```
```nInput = (0:length(input)-1); tOutput = (0:length(output)-1)/FsOut-delay; stem(tOutput,output,'filled',MarkerSize=4); hold on; stem(nInput,input); hold off; xlim([-5,20]) legend('Interpolated by 2','Input signal','Location','best');```

## Input Arguments

collapse all

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ```designHalfbandIIR(TransitionWidth=0.1, Passband='highpass',SystemObject=true)```

Order of the halfband IIR filter N specified as one of these:

• 0

• Odd positive integer greater than 1 when you use the Butterworth or Elliptic design methods

• Positive integer multiple of 8 when you use the quasi-linear design method (since R2024a)

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Transition width of the halfband IIR filter, TW, specified as a normalized scalar in the range (`0`,`1`].

Data Types: `single` | `double`

Stopband attenuation of halfband IIR filter, Ast, specified as a positive scalar.

Data Types: `single` | `double`

Window design method, specified as one of these options:

• `'butter'` –– Butterworth design method supports the (N) and (TW,Ast) design specification combinations.

• `'ellip'` –– Elliptic design method supports the (N,TW), (TW,Ast), and (N,Ast) design specification combinations.

• `'quasilinphase'` –– Quasi-linear phase design method supports the (N,TW), (N,Ast), and the (TW,Ast) design specification combinations. (since R2024a)

Data Types: `char` | `string`

Option to create System object, specified as:

Data Types: `logical`

Filter structure, specified as one of these values.

• `'single-rate'` –– When you set `SystemObject` to:

• `'interp'` –– When you set `SystemObject` to:

• `true` –– The function returns a `dsp.IIRHalfbandInterpolator` object.

• `false` –– The function returns filter coefficients in the form of `a0` and `a1` matrices.

• `'decim'` –– When you set `SystemObject` to:

• `true` –– The function returns a `dsp.IIRHalfbandDecimator` object.

• `false` –– The function returns filter coefficients in the form of `a0` and `a1` matrices.

For more information on the dimensions of the coefficient matrices, see the description for `a0` and `a1` output arguments.

Data Types: `char` | `string`

Passband frequency response, specified as one of these:

• `'lowpass'` –– This option supports all three filter structures.

• `'highpass'` –– This option supports only `'single-rate'`.

To enable this property, set `SystemObject` to `true`.

Data Types: `char` | `string`

Option to print the entire function call in MATLAB, specified as one of these:

• `false` –– The function does not print the function call.

• `true` –– The function prints the entire function call including the default values of the `Name=Value` arguments that you did not specify when calling the function.

Use this argument to view all the values used by the function to design and implement the filter.

Data Types: `logical`

## Output Arguments

collapse all

Polynomial coefficients of the first branch of the coupled allpass filter, returned as an N-by-4, N-by-2, or an N-by-1 matrix, where N is the number of filter sections.

The transfer function of the first branch is given by the equation

`${A}_{0}\left(z\right)=\prod _{k=1}^{N}\frac{{a}_{k}^{\left(0\right)}+{z}^{-1}}{1+{a}_{k}^{\left(0\right)}{z}^{-1}}$`

This table shows the dimensions of the `a0` argument for all the design methods and filter structures.

N`'single-rate'``'interp'``'decim'`
`'butter'``floor`((`FilterOrder`+1)/4)N-by-2N-by-1N-by-1
`'ellip'``floor`((`FilterOrder`+1)/4)N-by-2N-by-1N-by-1
`'quasilinphase'``FilterOrder`/4N-by-4N-by-2N-by-2

To return `a0`, set `SystemObject` flag to `false`.

Data Types: `double`

Polynomial coefficients of the second branch of the coupled allpass filter, returned as an N-by-4, N-by-2, or an N-by-1 matrix. To determine the value of N, see the following table.

The transfer function of the second branch is given by the equation

`${A}_{1}\left(z\right)=\prod _{k=1}^{N}\frac{{a}_{k}^{\left(1\right)}+{z}^{-1}}{1+{a}_{k}^{\left(1\right)}{z}^{-1}},$`

This table shows the dimensions of the `a1` argument for all the design methods and filter structures:

`'single-rate'``'interp'``'decim'`
`'butter'``floor`((`FilterOrder`−1)/4)-by-2`floor`((`FilterOrder`−1)/4)-by-1`floor`((`FilterOrder`−1)/4)-by-1
`'ellip'``floor`((`FilterOrder`−1)/4)-by-2`floor`((`FilterOrder`−1)/4)-by-1`floor`((`FilterOrder`−1)/4)-by-1
`'quasilinphase'``FilterOrder`/4-by-4`FilterOrder`/4-by-2`FilterOrder`/4-by-2

To return `a1`, set `SystemObject` flag to `false`.

Data Types: `double`

Filter object, returned as one of these objects:

To return a filter object, set `SystemObject` flag to `true`.

## Algorithms

The `designHalfbandIIR` function models the IIR halfband filter in the form of a coupled allpass filter using the minimum multiplier structure (single-rate implementation) or in the form of an efficient polyphase structure (multirate implementation).

The transfer function of the IIR halfband filter is

`$H\left(z\right)=0.5*\left[{A}_{0}\left({z}^{2}\right)+{z}^{-1}{A}_{1}\left({z}^{2}\right)\right],$`

The transfer function of A0(z) and A1(z) in the elliptic form is

`${A}_{0}\left(z\right)=\prod _{k=1}^{N}\frac{{a}_{k}^{\left(0\right)}+{z}^{-1}}{1+{a}_{k}^{\left(0\right)}{z}^{-1}}$`

and

`${A}_{1}\left(z\right)=\prod _{k=1}^{N}\frac{{a}_{k}^{\left(1\right)}+{z}^{-1}}{1+{a}_{k}^{\left(1\right)}{z}^{-1}},$`

where N is the number of filter sections of the allpass filters A0(z) and A1(z).

Single-Rate Filter Implementation

When you set `Structure` to `'single-rate'`, the `designHalfbandIIR` function implements a coupled allpass filter object comprising of a cascaded parallel structure of `dsp.AllpassFilter` and `dsp.Delay` filter objects.

This is a diagrammatic representation of the filter in the minimum multiplier form when you set `Structure` to `'single-rate'`. The structure of the coupled allpass filter is composed of two allpass filters A0(z) and A1(z) connected in parallel. The `designHalfbandIIR` function computes the overall filter output by adding the output of the two respective branches.

You can design the filters A0(z) and A1(z) using the elliptic design method or the Butterworth design method.

Multirate Filter Implementation

When you set `Structure` to `'interp'` or `'decim'`, the function implements the filter using an efficient two-branch polyphase structure. For more information on the polyphase implementation, see the Algorithms section in the `dsp.IIRHalfbandInterpolator` and `dsp.IIRHalfbandDecimator` object pages.
