Constant Ramp
Generate ramp signal with length based on input dimensions
Libraries:
DSP System Toolbox /
Signal Operations
Description
The Constant Ramp block generates the constant ramp signal
y = (0:L-1)*m + b
where m is the slope specified by the scalar Slope parameter, and b is the y-intercept specified by the scalar Offset parameter.
For an unoriented vector input, L is equal to the length of the input vector. For an N-D input array, the length L of the output ramp is equal to the length of the input in the dimension specified by the Ramp length equals number of or Dimension parameter. The output, y, is always an unoriented vector.
Examples

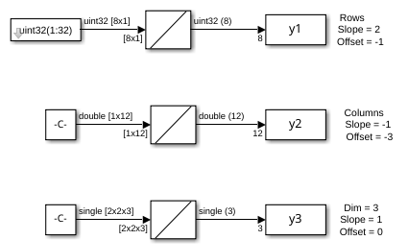

Generate Constant Ramp Signal
Generate a ramp signal using the Constant Ramp block. The Ramp length equals number of parameter allows you to specify input signal dimension that determines the length of the generated constant ramp signal.
For N-D input signals, set the Ramp length equals number of parameter to Elements in specified dimension
. Then specify the desired dimension using the Dimension parameter.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix | N-D array
Input signal used to generate ramp signal, specified as a scalar, vector, matrix, or N-D array.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Output
Port_1 — Output signal
vector
Output signal, specified as an unoriented vector. The block determines the length of the output based on the length of the input signal, and the Ramp length equals number of or Dimension parameter.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
Main
Ramp length equals number of — Dimension used to determine ramp length
Rows
(default) | Columns
| Elements in specified dimension
Specify whether the length of the output ramp is the number of rows, number of columns, or the length of the specified dimension of the input.
Dimension — Dimension that determines length of output ramp
1
(default) | positive integer
Specify the one-based dimension of the input array that determines the length of the output ramp as a positive integer scalar.
Dependencies
To enable this parameter, set Ramp length equals number
of to Elements in specified
dimension
.
Slope — Slope of the ramp
1
(default) | scalar
Specify the slope of the ramp as a real-valued double-precision scalar.
Offset — y-intercept of the ramp
0
(default) | scalar
Specify the scalar y-intercept of the ramp as a real-valued double-precision scalar.
Data Types
Output data type — Output data type
Inherit: Same as
input
(default) | Inherit: Inherit via back
propagation
| double
| single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16)
| fixdt(1,16,0)
| <data type conversion>
Specify the output data type for this block. You can select one of the following:
A rule that inherits a data type, for example,
Inherit: Same as input
.A built-in data type, such as
double
An expression that evaluates to a valid data type, for example,
fixdt(1,16)
For help setting data type parameters, display the Data Type Assistant by clicking the Show data type assistant button .
See Control Data Types of Signals (Simulink) for more information.
Data Type Assistant Parameters
Mode — Data type mode
Inherit
(default) | Built in
| Fixed point
| Expression
Select how you would like to specify the data type properties of the Output data type. You can choose:
Inherit
— Lets you specify a rule for inheriting a data type, for example,Inherit: Same as input
Built in
— Lets you specify a built-in data type, for example,double
Fixed point
— Lets you specify the fixed-point attributes of the data type.Expression
— Lets you specify an expression that evaluates to a valid data type, for example,fixdt(1,16)
For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Signedness — Signedness of fixed-point data
Signed
(default) | Unsigned
Specify whether the fixed-point data is signed or unsigned.
Signed
data can represent positive and
negative values, but Unsigned
data represents
positive values only. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Word length — Bit size of the word that holds the quantized integer
16
(default) | integer from 2 to 128
Specify the bit size of the word that holds the quantized integer as an integer scalar from 2 to 128. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Dependencies
To enable this parameter, set Mode to
Fixed point
Scaling — Method for scaling fixed-point data
Best precision
(default) | Binary point
Specify the method for scaling your fixed-point data to avoid overflow conditions and minimize quantization errors. For more information, see Specify Data Types Using Data Type Assistant (Simulink).
Dependencies
To enable this parameter, set Mode to
Fixed point
Data type override — Data type override mode
Inherit
(default) | Off
Select the data type override mode for this signal. You can select:
Inherit
— Inherits the data type override setting specified for the model.Off
— Ignores the data type override setting specified for the model and uses the fixed-point data type you specify.
Dependencies
To enable this parameter, set Mode to Built
in
or Fixed point
. For more
information, see Specify Data Types Using Data Type Assistant (Simulink).
Fraction length — Fraction length for fixed-point data type
0
(default) | integer scalar
Specify the fraction length of the fixed-point data type as a positive or negative integer scalar.
Dependencies
To enable this parameter, set Mode to
Fixed point
and
Scaling to Binary
point
.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on the memcpy
or
memset
function (string.h
) under certain
conditions.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006a
See Also
Blocks
- Create Diagonal Matrix (Simulink) | Constant (Simulink) | Ramp (Simulink) | Identity Matrix (Simulink)
