US City Block

US city block 3D environment

Description

The US City Block scene is a 3D environment of a US city block that contains 15 intersections and 30 traffic lights. The scene is created using RoadRunner.

Setup

To simulate a driving algorithm in this scene:

1. Add a Simulation 3D Scene Configuration block to your Simulink^® model.

2. In this block, set the Scene source parameter to Default Scenes.

3. Set the enabled Scene name parameter to US city block.

Objects

Traffic Lights

The US City Block scene contains 30 traffic lights, two at each of the 15 intersections. Each intersection has a traffic light group. If you use the Traffic Light Negotiation with Unreal Engine Visualization example, you can control the timing of the traffic lights.

Locations

This table provides the traffic light names and locations in the world coordinate system. Dimensions are in m. Only one of the traffic lights in the group can be green at a time. The traffic lights are green for 10 s and yellow for 3 s. At the start of the simulation, the first traffic lights in the group are green (for example, SM_TrafficLights1_3 and SM_TrafficLights2_3). The second lights in the group are red (for example, SM_TrafficLights1_4 and SM_TrafficLights2_4).

Intersection	Unreal Engine® Editor Name		Location
	Traffic Light Group	Traffic Light	X	Y	Z	Roll	Pitch	Yaw
1	TrafficLightGroup	SM_TrafficLights1_3	-196.55	100.65	0	0	0	-90°
		SM_TrafficLights1_4	-210.20	113.40	0	0	0	0
2	TrafficLightGroup2	SM_TrafficLights2_3	-106.35	-98.35	0	0	0	90°
		SM_TrafficLights2_4	-120.40	113.50	0	0	0	0
3	TrafficLightGroup3	SM_TrafficLights3_1	-13.10	116.20	0.2	0	0	-90°
		SM_TrafficLights3_4	-30.60	113.80	0	0	0	0
4	TrafficLightGroup4	SM_TrafficLights4_3	71.40	100.30	0	0	0	100°
		SM_TrafficLights4_4	64.80	113.0	0	0	0	0
5	TrafficLightGroup5	SM_TrafficLights5_1	171.50	115.70	0	0	0	-90°
		SM_TrafficLights5_4	157.40	113.50	0	0	0	0
6	TrafficLightGroup6	SM_TrafficLights6_2	-177.30	-5.70	0	0	0	-180°
		SM_TrafficLights6_3	-189.60	-7.40	0	0	0	90°
7	TrafficLightGroup7	SM_TrafficLights7_2	-105.20	-5.50	0	0	0	-180°
		SM_TrafficLights7_3	-117.80	-7.70	0.2	0	0	90°
8	TrafficLightGroup8	SM_TrafficLights8_1	-13.10	7.60	0.1	0	0	-90°
		SM_TrafficLights8_2	-10.90	-5.60	0	0	0	-180°
9	TrafficLightGroup9	SM_TrafficLights9_2	85.90	-7.60	0.2	0	0	-180°
		SM_TrafficLights9_3	70.90	-9.20	0	0	0	90°
10	TrafficLightGroup10	SM_TrafficLights10_1	172.10	7.70	0	0	0	-90°
		SM_TrafficLights10_2	173.70	-7.50	0	0	0	-180°
11	TrafficLightGroup11	SM_TrafficLights11_3	-189.80	-118.45	0	0	0	90°
		SM_TrafficLights11_4	-191.05	-104.55	0	0	0	0
12	TrafficLightGroup12	SM_TrafficLights12_3	-117.60	-117.60	0	0	0	90°
		SM_TrafficLights12_4	-120.50	-105.40	0	0	0	0
13	TrafficLightGroup13	SM_TrafficLights13_1	-12.80	-102.50	0	0	0	-90°
		SM_TrafficLights13_4	-30.50	-105.30	0	0	0	0
14	TrafficLightGroup14	SM_TrafficLights14_3	70.90	-118.70	0	0	0	90°
		SM_TrafficLights14_4	69.30	-105.30	0	0	0	0
15	TrafficLightGroup15	SM_TrafficLights15_1	171.40	-105.20	0	0	0	-90°
		SM_TrafficLights15_4	158.40	-107.20	0	0	0	0

Examples

Explore US City Block Scene

Explore the 3D US City Block scene and inspect its dimensions by using a corresponding 2D top-view image of the scene.

You can use this image to inspect the scene before simulation and choose starting coordinates for vehicles. For details on using these images to select waypoints for path-following applications, see the Select Waypoints for Unreal Engine Simulation example.

Load the 2D spatial referencing object that corresponds to the scene. This imref2d object describes the relationship between the pixels in the image and the world coordinates of the scene.

data = load('sim3d_SpatialReferences.mat');
spatialRef = data.spatialReference.USCityBlock

spatialRef =
  imref2d with properties:

           XWorldLimits: [-250 210]
           YWorldLimits: [-235 225]
              ImageSize: [4776 4776]
    PixelExtentInWorldX: 0.0963
    PixelExtentInWorldY: 0.0963
    ImageExtentInWorldX: 460
    ImageExtentInWorldY: 460
       XIntrinsicLimits: [0.5000 4.7765e+03]
       YIntrinsicLimits: [0.5000 4.7765e+03]

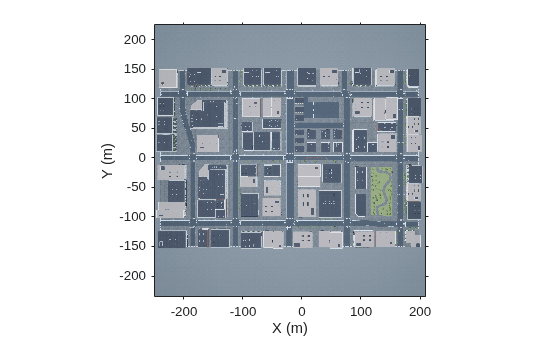

Display the image corresponding to the scene. Use the spatial referencing object to display the axes in the world coordinates of the scene. Units are in meters.

By default, the imshow function displays Y-axis values that increase from top to bottom. To align with the Automated Driving Toolbox™ world coordinate system, set the Y-direction to 'normal' so that Y-axis values increase from bottom to top.

The image displays only the area of the scene containing the city block. The full scene has a length and width of 2040 meters.

figure
fileName = 'sim3d_USCityBlock.jpg';
I = imshow(fileName,spatialRef);
set(gca,'YDir','normal')
xlabel('X (m)')
ylabel('Y (m)')

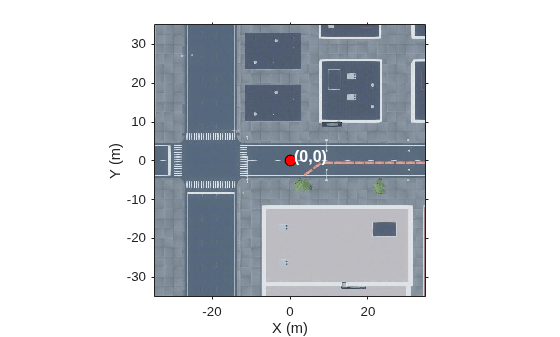

Zoom in on the origin of the scene. Place a marker at the origin.

xlim([-35 35])
ylim([-35 35])

hold on
plot(0,0,'o','MarkerFaceColor','r','MarkerEdgeColor','k','MarkerSize',8)
offset = 1; % px
text(offset,offset,'(0,0)','Color','w','FontWeight','bold','FontSize',12)
hold off

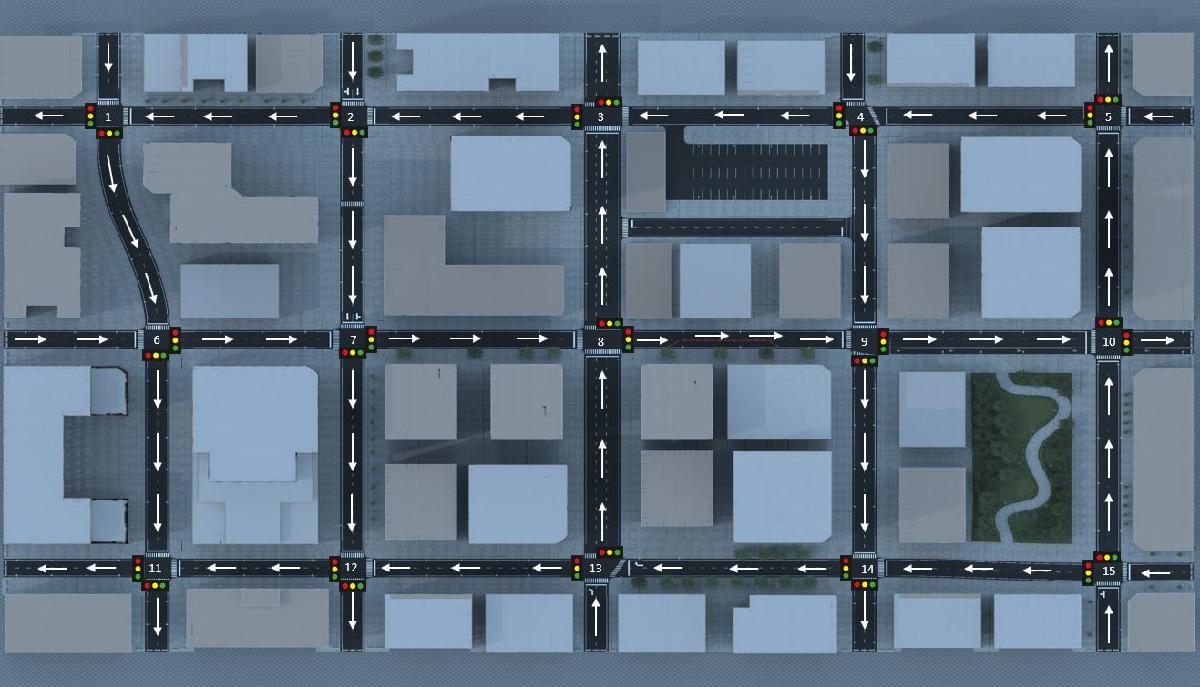

Each intersection in the scene contains two traffic light groups. These traffic lights change color based on common US traffic light patterns. All roads in the scene are one-way and follow the direction of traffic shown here.

Tips

• If you have the Automated Driving Toolbox™ Interface for Unreal Engine Projects support package, then you can modify this scene. In the Unreal Engine project file that comes with the support package, this scene is named USCityBlock.

  For more details on customizing scenes, see Customize Unreal Engine Scenes for Automated Driving.

Version History

Introduced in R2019b

R2022b: Scene rendered using RoadRunner

Starting from R2022b, the US City Block scene in the Unreal Engine 3D environment is rendered using RoadRunner. As a result, the locations of scene objects, including cones and parked vehicles, are moved from their pre-R2022b locations.
