# embeddingConcatenationLayer

Embedding concatenation layer

Since R2023b

## Description

An embedding concatenation layer combines its input and an embedding vector by concatenation.

## Creation

### Syntax

``layer = embeddingConcatenationLayer``
``layer = embeddingConcatenationLayer(Name=Value)``

### Description

````layer = embeddingConcatenationLayer` creates an embedding concatenation layer.```

example

````layer = embeddingConcatenationLayer(Name=Value)` creates an embedding concatenation layer and sets the Parameters and Initialization and `Name` properties using one or more name-value arguments.```

example

## Properties

expand all

### Parameters and Initialization

Function to initialize the weights, specified as one of these values:

• `"narrow-normal"` — Initialize the weights by independently sampling from a normal distribution with zero mean and a standard deviation of 0.01.

• `"glorot"` — Initialize the weights with the Glorot initializer [1] (also known as Xavier initializer). The Glorot initializer independently samples from a uniform distribution with zero mean and a variance of ```2/(numIn + numOut)```, where `numIn` and `numOut` are the number of channels in the layer input, respectively.

• `"he"` — Initialize the weights with the He initializer [2]. The He initializer samples from a normal distribution with zero mean and a variance of `2/numIn`, where `numIn` is the number of channels in the layer input.

• `"zeros"` — Initialize the weights with zeros.

• `"ones"` — Initialize the weights with ones.

• Function handle – Initialize the weights with a custom function. If you specify a function handle, then the function must have the form ```weights = func(sz)```, where `sz` is the size of the weights.

The layer initializes the weights only when the `Weights` property is empty.

Learnable weights, specified as a numeric column vector of length `numChannels` or `[]`.

The layer weights are learnable parameters. You can specify the initial value of the weights directly using the `Weights` property of the layer. When you train a network, if the `Weights` property of the layer is nonempty, then the `trainnet` function uses the `Weights` property as the initial value. If the `Weights` property is empty, then the software uses the initializer specified by the `WeightsInitializer` property of the layer.

Data Types: `single` | `double`

### Layer

Layer name, specified as a character vector or string scalar. For `Layer` array input, the `trainnet` and `dlnetwork` functions automatically assign names to layers with the name `""`.

The `EmbeddingConcatenationLayer` object stores this property as a character vector.

Data Types: `char` | `string`

Number of inputs to the layer, returned as `1`. This layer accepts a single input only.

Data Types: `double`

Input names, returned as `{'in'}`. This layer accepts a single input only.

Data Types: `cell`

Number of outputs from the layer, returned as `1`. This layer has a single output only.

Data Types: `double`

Output names, returned as `{'out'}`. This layer has a single output only.

Data Types: `cell`

## Examples

collapse all

Create an embedding concatenation layer.

`layer = embeddingConcatenationLayer`
```layer = EmbeddingConcatenationLayer with properties: Name: '' InputSize: 'auto' WeightsInitializer: 'narrow-normal' WeightLearnRateFactor: 1 WeightL2Factor: 1 Learnable Parameters Weights: [] State Parameters No properties. Use properties method to see a list of all properties. ```

Include an embedding concatenation layer in a neural network.

```net = dlnetwork; numChannels = 1; embeddingOutputSize = 64; numWords = 128; maxSequenceLength = 100; maxPosition = maxSequenceLength+1; numHeads = 4; numKeyChannels = 4*embeddingOutputSize; layers = [ sequenceInputLayer(numChannels) wordEmbeddingLayer(embeddingOutputSize,numWords,Name="word-emb") embeddingConcatenationLayer(Name="emb-cat") positionEmbeddingLayer(embeddingOutputSize,maxPosition,Name="pos-emb"); additionLayer(2,Name="add") selfAttentionLayer(numHeads,numKeyChannels,AttentionMask="causal") fullyConnectedLayer(numWords) softmaxLayer]; net = addLayers(net,layers); net = connectLayers(net,"emb-cat","add/in2");```

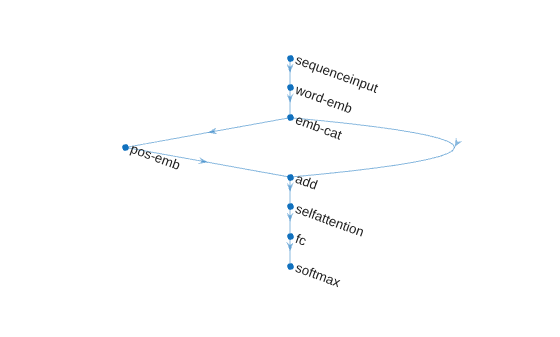

View the neural network architecture.

```plot(net) axis off box off```

expand all

## References

[1] Glorot, Xavier, and Yoshua Bengio. "Understanding the Difficulty of Training Deep Feedforward Neural Networks." In Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics, 249–356. Sardinia, Italy: AISTATS, 2010. https://proceedings.mlr.press/v9/glorot10a/glorot10a.pdf

[2] He, Kaiming, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. "Delving Deep into Rectifiers: Surpassing Human-Level Performance on ImageNet Classification." In 2015 IEEE International Conference on Computer Vision (ICCV), 1026–34. Santiago, Chile: IEEE, 2015. https://doi.org/10.1109/ICCV.2015.123

## Version History

Introduced in R2023b
