importNetworkFromPyTorch

Import PyTorch network as MATLAB network

Since R2022b

collapse all in page

    Syntax

    net = importNetworkFromPyTorch(modelfile)
    net = importNetworkFromPyTorch(modelfile,Name=Value)

    Description

    Add-On Required: This feature requires the Deep Learning Toolbox Converter for PyTorch Models add-on.

    net = importNetworkFromPyTorch(modelfile) imports a pretrained PyTorch® model from the file modelfile. The PyTorch model must be an exported program or a traced model. Exported program models are recommended as they result in models with more Deep Learning Toolbox™ built-in layers.

    Try exporting your model using PyTorch version 2.8 to prepare it for import. If the model cannot be exported, then trace it. See Tips for more information. The following code outlines the steps needed to prepare a PyTorch model for import:

    # Ensure the layers are set to inference mode.
model.eval()
# Move the model to the CPU.
model.to("cpu")
# Generate input data.
X = torch.rand(1,3,224,224)

# For ExportedProgram models
# Export the model and save it in PyTorch version 2.8.
exported_model = torch.export.export(model, (X,))
torch.export.save(exported_model, 'myModel.pt2')

# For traced models
# Trace the model and save it.
traced_model = torch.jit.trace(model.forward, X)
traced_model.save('myModel.pt')

    Alternatively, import PyTorch models interactively using the Deep Network Designer. On import, the app shows an import report with details about any issues that require attention. For more information, see Import Network from External Platform.

    example

    net = importNetworkFromPyTorch(modelfile,Name=Value) imports a pretrained PyTorch network with additional options specified by one or more name-value arguments. For example, for traced models, providing PyTorchInputSizes=[1 3 224 244] may return more built-in Deep Learning Toolbox layers.

    example

    Examples

    collapse all

    This example uses:

    Open Live Script

    Import a PyTorch model trained on the CIFAR-10 [1] data. The model was saved in the exported program model format in PyTorch version 2.8 using the following Python code:

    X = torch.rand(1,3,32,32)
exported_model = torch.export.export(model, (X,))
torch.export.save(exported_model, "exported_pytorch_model.pt2")

    See Export and Save Trained PyTorch Model to learn more.

    modelfile = "exported_pytorch_model.pt2";
net = importNetworkFromPyTorch(modelfile)
    Importing the model, this may take a few minutes...

    Warning: Some issues were found during translation, but no placeholders were generated:
Layer 'ResidualNetSmall:fc' has property OperationDimension set and requires its input to be in PyTorch dimension order.

    net =
  dlnetwork with properties:

         Layers: [9×1 nnet.cnn.layer.Layer]
    Connections: [11×2 table]
     Learnables: [86×3 table]
          State: [42×3 table]
     InputNames: {'InputLayer1'}
    OutputNames: {'ResidualNetSmall:fc'}
    Initialized: 1

  View summary with summary.

    If modifying the network after import, the software requires the input to the ResidualNetSmall:fc layer to be in the same order as was in the PyTorch network. For example, if the input to the linear layer in the original PyTorch network was 1-by-64, then the input to ResidualNetSmall:fc layer should also be 1-by-64.

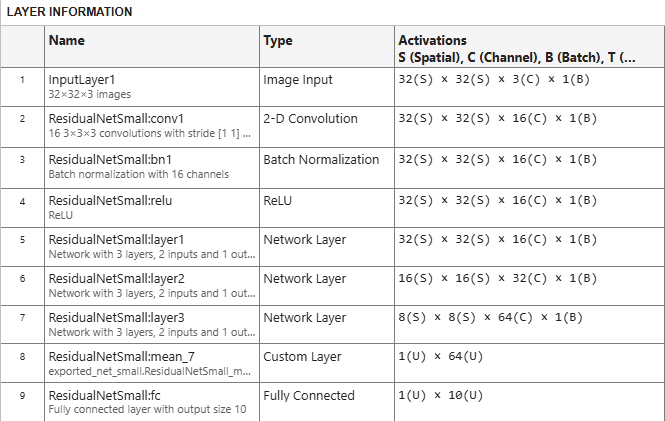

    Next, analyze the imported network layers.

    analyzeNetwork(net)

    The imported network is composed of built-in MATLAB layers along with a custom layer.

    [1] Krizhevsky, Alex. "Learning multiple layers of features from tiny images." (2009). https://www.cs.toronto.edu/~kriz/learning-features-2009-TR.pdf

    This example uses:

    Open Live Script

    Import a PyTorch model trained on the CIFAR-10 [1] data set. The model was saved in the exported program model format in PyTorch version 2.8.

    See Export and Save Trained PyTorch Model to learn more.

    modelfile = "exported_pytorch_model.pt2";
net = importNetworkFromPyTorch(modelfile)

    The function imports the model as a dlnetwork object.

    Download the CIFAR-10 data set. The data set contains 60,000 images. Each image is 32-by-32 pixels in size and has three color channels (RGB). The size of the data set is 175 MB. Depending on your internet connection, the download process can take time.

    datadir = tempdir;
downloadCIFARData(datadir);

    Load the CIFAR-10 test images as 4-D arrays. The test set contains 10,000 images. Use a CIFAR-10 test image for network validation.

    [~,~,XValidation,TValidation] = loadCIFARData(datadir);

    Display an image from the test data along with the label.

    idx=1;
Im = XValidation(:,:,:,idx);
imshow(Im)
title("Label: "+string(TValidation(idx)))

    Convert the image to a dlarray object. Format the image with the dimensions "SSCB" (spatial, spatial, channel, batch).

    Im_dlarray = dlarray(single(Im),"SSCB");

    Classify the image and find the predicted label.

    prob = predict(net,Im_dlarray);
predLabel = scores2label(prob,categories(TValidation));
disp("The predicted label is "+string(predLabel))
    The predicted label is cat

    [1] Krizhevsky, Alex. "Learning multiple layers of features from tiny images." (2009). https://www.cs.toronto.edu/~kriz/learning-features-2009-TR.pdf

    This example uses:

    Open Live Script

    Import a pretrained and traced PyTorch model as an initialized dlnetwork object using the name-value argument PyTorchInputSizes. See Trace and Save Trained PyTorch Model for detailed steps.

    This example imports the MNASNet (Copyright© Soumith Chintala 2016) PyTorch model. MNASNet is an image classification model that is trained with images from the ImageNet database. Download the mnasnet1_0.pt file, which is approximately 17 MB in size, from the MathWorks website.

    modelfile = matlab.internal.examples.downloadSupportFile("nnet", ...
    "data/PyTorchModels/mnasnet1_0.pt");

    Import the MNASNet model by using the importNetworkFromPyTorch function with the name-value argument PyTorchInputSizes. We know that a 224x224 color image is a valid input size for this PyTorch model. The software automatically creates and adds the input layer for a batch of images. This allows the network to be imported as an initialized network in one line of code.

    net = importNetworkFromPyTorch(modelfile,PyTorchInputSizes=[NaN,3,224,224])
    Importing the model, this may take a few minutes...

    Warning: Some issues were found during translation, but no placeholders were generated:
Layer 'MNASNet:classifier:1' has property OperationDimension set and requires its input to be in PyTorch dimension order.

    net =
  dlnetwork with properties:

         Layers: [4×1 nnet.cnn.layer.Layer]
    Connections: [3×2 table]
     Learnables: [210×3 table]
          State: [104×3 table]
     InputNames: {'InputLayer1'}
    OutputNames: {'MNASNet:classifier'}
    Initialized: 1

  View summary with summary.

    The network is ready to use for prediction.

    Input Arguments

    collapse all

    Name of the PyTorch model file, specified as a character vector or string scalar. modelfile must be in the current folder, or you must include a full or relative path to the file. The PyTorch model must be pretrained and can either of the following:

    Example: "mobilenet_v3.pt"

    Name-Value Arguments

    collapse all

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: importNetworkFromPyTorch(modelfile,Namespace="CustomLayers") imports the network in modelfile and saves the custom layers namespace +Namespace in the current folder.

    Name of the custom layers namespace in which importNetworkFromPyTorch saves custom layers, specified as a character vector or string scalar. importNetworkFromPyTorch saves the custom layers +Namespace namespace in the current folder. If you do not specify Namespace, then importNetworkFromPyTorch saves the custom layers in the +modelfile namespace in the current folder. For more information about namespaces, see Create Namespaces.

    importNetworkFromPyTorch tries to generate a custom layer when you import a custom PyTorch layer or when the software cannot convert a PyTorch layer into an equivalent built-in MATLAB® layer. importNetworkFromPyTorch saves each generated custom layer to a separate MATLAB code file in +Namespace. To view or edit a custom layer, open the associated MATLAB code file. For more information about custom layers, see Custom Layers.

    The +Namespace namespace can also contain the +ops inner namespace. This inner namespace contains MATLAB functions corresponding to PyTorch operators that the automatically generated custom layers use. importNetworkFromPyTorch saves the associated MATLAB function for each operator in a separate MATLAB code file in the +ops inner namespace. The object functions of dlnetwork, such as the predict function, use these operators when it interacts with the custom layers. The +ops inner namespace can also contain placeholder functions. For more information, see Placeholder Functions.

    Example: Namespace="mobilenet_v3"

    Dimension sizes of the PyTorch network inputs, specified as a numeric array, string scalar, or cell array. The dimension input order is the same as in the PyTorch network. You can specify PyTorchInputSizes as a numeric array only when the network has a single nonscalar input. If the network has multiple inputs, PyTorchInputSizes must be a cell array of the input sizes. For an input whose size or shape is not known specify PyTorchInputSize as "unknown". For an input that corresponds to a 0-dimensional scalar in PyTorch, specify PyTorchInputSize as "scalar".

    The standard input layers that importNetworkFromPyTorch supports are ImageInputLayer (SSCB), FeatureInputLayer (CB), ImageInputLayer3D (SSSCB), and SequenceInputLayer (CBT). Here, S is spatial, C is channel, B is batch, and T is time. importNetworkFromPyTorch also supports nonstandard inputs using PyTorchInputSizes. For example, import the network and specify the input dimension sizes with this function call: net = importNetworkFromPyTorch("nonStandardModel.pt",PyTorchInputSizes=[1 3 224]). Then, initialize the network with a U-labelled inputLayer, where U is unknown, with these function calls: inputLayer1 = inputLayer([1 3 224],"UUU") and net = addInputLayer(net,inputLayer1). The software interprets the U-labelled inputLayer data to be in PyTorch order.

    Tip

    Specify PyTorchInputSizes when importing traced models to get better support for importing PyTorch layers into built-in MATLAB layers.

    Example: PyTorchInputSizes=[NaN 3 224 224] is a network with one input that is a batch of images.

    Example: PyTorchInputSizes={[NaN 3 224 224],"unknown"} is a network with two inputs. The first input is a batch of images and the second input has unknown size.

    Data Types: numeric array | string | cell array

    Network composition representation, specified as one of these values:

    • "networklayer" — Represents network composition in the imported network using networkLayer layer objects. When you specify this value, the software converts as many PyTorch functions as possible into Deep Learning Toolbox layers, with the constraint that the number of custom layers does not increase.

    • "customlayer" — Represents network composition in the imported network using nested custom layers. When you specify this value, importNetworkFromPyTorch converts sequences of PyTorch functions into Deep Learning Toolbox functions before consolidating them into a custom layer. For more information about custom layers, see Define Custom Deep Learning Layers.

    Example: PreferredNestingType="customlayer"

    Data Types: char | string

    Output Arguments

    collapse all

    Pretrained PyTorch network, returned as an dlnetwork object.

    • If you edit the input layer of the network without using the addInputLayer function, you must update the network's InputNames property. If you edit the output layer, you must update OutputNames.

    • If your network is not initialized, before using it you must add an input layer or initialize the network.

    Limitations

    • The importNetworkFromPyTorch function supports exported networks created in PyTorch version 2.8. The function may be able to support traced networks created in other versions of PyTorch.

    • Import of ExportedProgram format models exported with dynamic shapes is not supported.

    More About

    collapse all

    Tips

    • It is recommended to prepare PyTorch models for import by exporting them using torch.export.export() over tracing. The ExportedProgram format provides a stable, framework-independent file that captures the model’s computation graph, input and output specifications, and parameters in a deterministic structure. This format allows the software to import models that are initialized and comprising of more built-in MATLAB layers.

    • Specify PyTorchInputSizes when importing traced models to get better support for importing PyTorch layers into built-in MATLAB layers.

    • To use a pretrained network for prediction or transfer learning on new images, you must preprocess your images in the same way as the images that you use to train the imported model. The most common preprocessing steps are resizing images, subtracting image average values, and converting the images from BGR format to RGB format.

      • To resize images, use imresize. For example, imresize(image,[227 227 3]).

      • To convert images from RGB to BGR format, use flip. For example, flip(image,3).

      For more information about preprocessing images for training and prediction, see Preprocess Images for Deep Learning.

    • The members of the +Namespace namespace are not accessible if the namespace parent folder is not on the MATLAB path. For more information, see Namespaces and the MATLAB Path.

    • MATLAB uses one-based indexing, whereas Python uses zero-based indexing. In other words, the first element in an array has an index of 1 and 0 in MATLAB and Python, respectively. For more information about MATLAB indexing, see Array Indexing. In MATLAB, to use an array of indices (ind) created in Python, convert the array to ind+1.

    • For more tips, see Tips on Importing Models from TensorFlow, PyTorch, and ONNX.

    Algorithms

    The importNetworkFromPyTorch function imports a PyTorch layer into MATLAB by trying these steps in order:

    1. The function tries to import the PyTorch layer as a built-in MATLAB layer. For more information, see Conversion of PyTorch Layers.

    2. The function tries to import the PyTorch layer as a built-in MATLAB function. For more information, see Conversion of PyTorch Layers.

    3. The function tries to import the PyTorch layer as a custom layer. importNetworkFromPyTorch saves the generated custom layers and the associated functions in the +Namespace namespace.

    4. The function imports the PyTorch layer as a custom layer with a placeholder function. You must complete the placeholder function before you can use the network, see Placeholder Functions.

    In the first three cases, the imported network is ready for prediction after you initialize it.

    Alternative Functionality

    App

    You can also import networks from external platforms by using the Deep Network Designer app. The app uses the importNetworkFromPyTorch function to import the network, and displays a progress dialog box. During the import process, the app adds an input layer to the network, if possible, and displays an import report with details about any issues that require attention. After importing a network, you can interactively edit, visualize, and analyze the network. When you are finished editing the network, you can export it to Simulink® or generate MATLAB code for building networks.

    Block

    You can also work with PyTorch networks by using the PyTorch Model Predict block. This block additionally allows you to load Python functions to preprocess and postprocess data, and to configure input and output ports interactively.

    Version History

    Introduced in R2022b
