“Natural” or periodic interpolating cubic spline curve
returns a parametric variational, or natural, cubic spline
curve (in ppform) passing through the given sequence points
(:j), j = 1:end. The parameter value
t(j) for the j-th
point follows the Eugene Lee's  centripetal scheme, as accumulated square root of chord length:
curve = cscvn(
If the first and last point coincide and there are no other repeated points) then the function constructs a periodic cubic spline curve. However, double points result in corners.
Plot Interpolating Cubic Spline Curves
This example shows how to construct and plot several different interpolating cubic spline curves using the

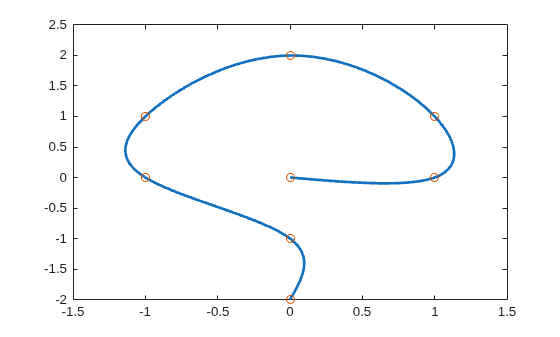

This code generates a sequence of points and then plots the cubic spline generated from the cscvn function. The chosen points are marked as circles:
points=[0 1 1 0 -1 -1 0 0; 0 0 1 2 1 0 -1 -2]; fnplt(cscvn(points)); hold on, plot(points(1,:),points(2,:),'o'), hold off
This code plots a circular curve through the four vertices of the standard diamond (because of the periodic boundary conditions enforced):
fnplt(cscvn( [1 0 -1 0 1;0 1 0 -1 0] ))

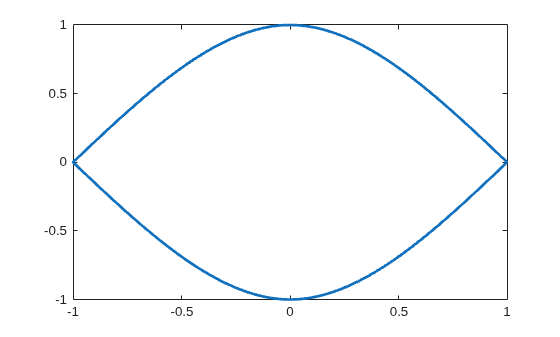

This code shows a corner at the double point as well as at the curve endpoint:
fnplt(cscvn( [1 0 -1 -1 0 1;0 1 0 0 -1 0] ))

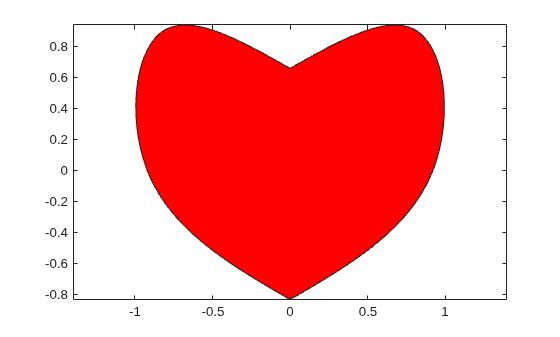

Finally, this code generates a closed curve with one double point, which results in a corner. Dedicate this to your loved ones.
c=fnplt(cscvn([0 .82 .92 0 0 -.92 -.82 0; .66 .9 0 ... -.83 -.83 0 .9 .66])); fill(c(1,:),c(2,:),'r'), axis equal
points — Sequence of points
scalar | vector | matrix
Sequence of points at which the parametric "natural" cubic spline interpolates to, specified as a scalar, vector, or matrix.
curve — Spline in ppform
Spline in ppform, returned as a structure with these fields.
Form — Form of spline
Form of the spline, returned as
pp indicates that the spline is given
in piecewise polynomial form.
Breaks — Knot locations of spline
vector | cell array
Knot positions of the spline, returned as a vector or as a cell array of vectors for multivariate data. Vectors contain strictly increasing elements that represent the start and end of each of the intervals over which the polynomial pieces are defined.
Coefs — Coefficients of polynomials
matrix | array
Coefficients of polynomials for each piece, returned as a matrix or as an array for multivariate data.
Pieces — Number of polynomial pieces
scalar | vector
Number of polynomial pieces describing the spline, returned as a scalar or as a vector of numbers of pieces in each variable for multivariate data.
Order — Order of polynomials
scalar | vector
Order of the polynomial function describing each polynomial piece of the spline, returned as a scalar or as a vector containing the order in each variable for multivariate data.
Dim — Dimensionality
Dimensionality of the target function, returned as a scalar.
The function determines the break sequence
t = cumsum([0;((diff(points.').^2)*ones(d,1)).^(1/4)]).';
csape (with either periodic or variational end
conditions) to construct the smooth pieces between double points (if any).
