tau = chbpnt(t,k)
[tau,sp] = chbpnt(...)
tau = chbpnt(t,k) are the extreme sites of
the Chebyshev spline of order
k with knot sequence
t. These are particularly good sites at which to interpolate
data by splines of order
k with knot sequence
t because the resulting interpolant is often quite close to
the best uniform approximation from that spline space to the function whose values
tau are being interpolated.
chbpnt(t,k,tol) also specifies the
tol to be used in the iterative process that constructs
the Chebyshev spline. This process is terminated when the relative difference
between the absolutely largest and the absolutely smallest local extremum of the
spline is smaller than
tol. The default value for
[tau,sp] = chbpnt(...) also returns, in
sp, the Chebyshev spline.
Approximate Square Root Function
Create a knot sequence of ten zeros and ten ones using the
k = 10; t = augknt([0,1],k);
Create a vector of interpolation sites by calculating the Chebyshev-Demko points for the Chebyshev spline of order 10 with knot sequence
sites = chbpnt(t,k);
Create a vector of interpolation points by evaluating the function
sqrt at the Chebyshev-Demko points. Use the function
spapi to interpolate through the evaluated points with a tenth-order spline from the knot sequence
t. The knots in
t indicate that the spline fit consists of a single polynomial with boundaries at 0 and 1.
interpolationPoints = sqrt(sites); sp = spapi(t,sites,interpolationPoints)
sp = struct with fields: form: 'B-' knots: [0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1] coefs: [-1.7088e-16 0.8842 -0.7101 2.4484 -1.1869 1.9678 0.3331 0.9940 0.9349 1] number: 10 order: 10 dim: 1
sp contains the properties of the spline. The
coefs field of
sp is a vector of coefficients for the polynomial that approximates the square root function in the interval

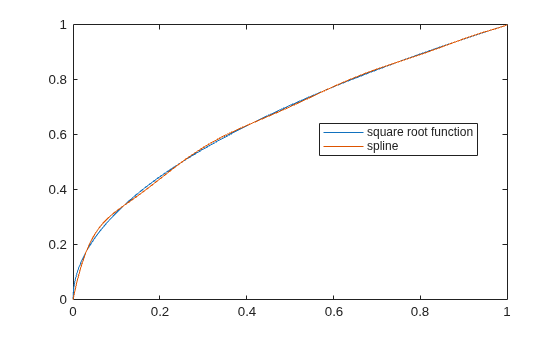

sp and the square root function by displaying them in the same plot.
x = linspace(0,1,1000); plot(x,sqrt(x)) hold on fnplt(sp,'-',0.75) legend(["square root function" "spline"],Location="best")
The plot shows that the spline closely follows the square root function.
The Chebyshev spline for the given knot sequence and order is constructed
iteratively, using the Remez algorithm, using as initial guess the spline that takes
alternately the values 1 and −1 at the sequence
example Construct Chebyshev Spline gives a detailed discussion of one
version of the process as applied to a particular example.
