plot

Plot `cfit` or `sfit` object

Syntax

``plot(sfit)``
``plot(sfit,[x,y],z)``
``plot(___,Name=Value)``
``plot(cfit)``
``plot(cfit,x,y)``
``plot(cfit,x,y,DataLineSpec)``
``plot(cfit,FitLineSpec,x,y,DataLineSpec)``
``plot(cfit,x,y,outliers)``
``plot(cfit,x,y,outliers,OutlierLineSpec)``
``plot(___,ptype)``
``plot(___,ptype,level)``
`` plot(ax,___)``
``H = plot(___)``

Description

Surfaces

example

````plot(sfit)` plots the surface given in the `sfit` object `sfit` over the range of the current axes (`gca`). If no current axes exist, the function plots the surface over the range of the data used to create `sfit`.```
````plot(sfit,[x,y],z)` plots `sfit` together with a scatter plot of the data in `x`, `y`, and `z`. The axes limits are given by the ranges of `x` and `y`.```
````plot(___,Name=Value)` specifies options using one or more name-value arguments in addition to any of the input argument combinations in the previous syntaxes for surfaces. For example, you can specify the type and limits of the plot.```

Curves

````plot(cfit)` plots the curve given in the `cfit` object `cfit` over the range of the current axes (`gca`). If no current axes exist, the function plots the curve over the range of the data used to create `cfit`.```

example

````plot(cfit,x,y)` plots `cfit` together with a scatter plot of the data in `x` and `y`. The axes limits are given by the range of `x`.```
````plot(cfit,x,y,DataLineSpec)` specifies the color, marker symbol, and line style used to plot the scatter plot data.```

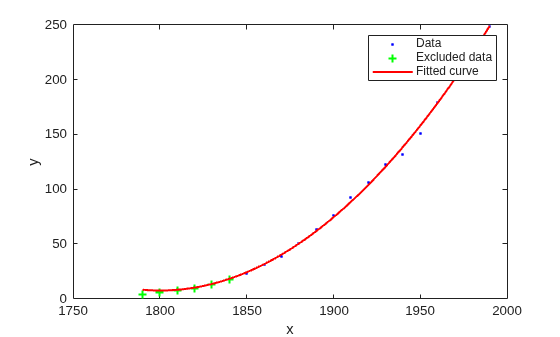

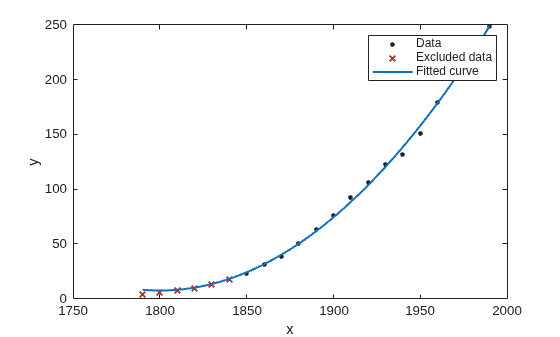

````plot(cfit,FitLineSpec,x,y,DataLineSpec)` specifies the color, marker symbol, and line style that `plot` uses to plot the curve given in `cfit`.```
````plot(cfit,x,y,outliers)` specifies the scatter plot data to treat as outliers, and plots them in a different color.```
````plot(cfit,x,y,outliers,OutlierLineSpec)` specifies the color, marker symbol, and line style used to plot the outliers.```

example

````plot(___,ptype)` specifies the plot type using any of the input arguments combinations in the previous syntaxes for curves.```
````plot(___,ptype,level)` specifies the confidence level for the prediction bounds when `ptype` is `"predfunc"` or `"predobs"`.```

Surfaces and Curves

```` plot(ax,___)` plots into the axes specified by `ax` instead of `gca`. The argument `ax` can precede any of the input argument combinations in the previous syntaxes. ```
````H = plot(___)` returns a vector of handles to the plotted objects.```

Examples

collapse all

Load the `franke` data set.

`load franke`

The vectors `x`, `y`, and `z` contain data generated from Franke's bivariate test function.

Fit a Lowess smoothing model to the data in `x`, `y`, and `z`.

`ls = fit([x,y],z,"lowess");`

`ls` is an `sfit` object that contains the results of fitting the Lowess smoothing model to the data.

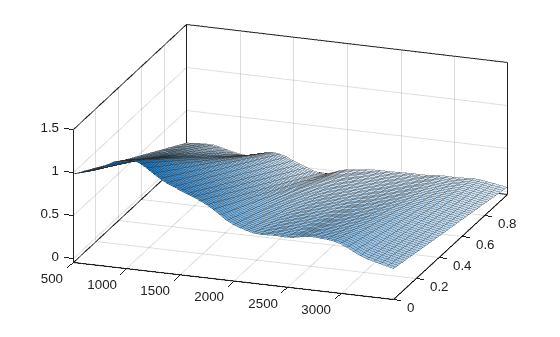

Plot `ls` and change the view of the figure.

```plot(ls) view([19.5 40.0])```

The plot shows that the Lowess smoothing fit is a wavy surface that lies between `z=0` and `z=1.5` across the values for `x` and `y`.

Load the `titanium` data set. Convert the data from row to column vectors.

```[x, y] = titanium; x = x'; y = y';```

`x` contains temperature measurements and `y` contains measurements for a property of titanium.

Fit a Gaussian model to the `x` and `y` data.

`g = fit(x,y,"gauss2");`

`g` is a `cfit` object that contains the results of fitting the Gaussian model to the data.

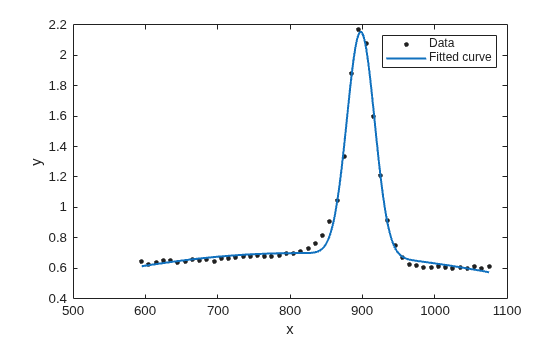

Plot `g` with a scatter plot of the data.

`plot(g,x,y)`

The plot shows that `g` closely follows the majority of the data, and the `y` data spikes when `x` is approximately `900`.

Generate some data for a baseline sinusoidal signal using the `linspace` and `sin` functions.

```xdata = linspace(0,2*pi,60)'; y0 = sin(xdata);```

`xdata` is a vector of `60` points between `0` and `2`$\pi$, and `y0` is a vector of values given by evaluating the sine function at the values in `xdata`.

Generate noise from a Gaussian distribution using the `randn` function.

```rng(0,"twister") % For reproducibility gnoise = y0.*randn(size(y0));```

To generate impulse noise, first use the `randperm` and `round` functions to create a vector of random indices.

```leny0 = length(y0); p = randperm(leny0); stop = round(leny0/5); idx = p(1:stop);```

`idx` is a vector of integers representing the indices of `y0`.

Create a vector of impulse noise using the `zeros` function. Then, use the `sign` function to assign the values –`5` and `5` to the noise vector at positions in `idx` where the elements of `y0` are negative and positive, respectively.

```szy = size(y0); spnoise = zeros(szy); yidx = y0(idx); spnoise(idx) = 5*sign(yidx);```

Add the noise vectors to `y0`.

`ydata = y0 + gnoise + spnoise;`

`ydata` is a vector of noisy data with nonconstant variance.

Fit a sinusoidal model to `ydata`.

```f = fittype("a*sin(b*x)"); fit1 = fit(xdata,ydata,f,StartPoint=[1 1]);```

`fit1` contains the results of fitting a sinusoidal model using least-squares fitting.

Create a vector of outliers from the points in `xdata` and `ydata` that are more than 1.5 standard deviations away from the model in `fit1`.

```fdata = feval(fit1,xdata); outliers = abs(fdata - ydata) > 1.5*std(ydata);```

Refit the data with the outliers excluded.

```fit2 = fit(xdata,ydata,f,StartPoint=[1 1],... Exclude=outliers);```

`fit2` contains the results of fitting a sinusoidal model to the data with the outliers excluded.

Fit a third model using a robust fitting algorithm.

`fit3 = fit(xdata,ydata,f,StartPoint=[1 1],Robust="on");`

`fit3` contains the results of fitting a sinusoidal model to the data using the bisquare-weights fitting algorithm.

To compare the fitted models, plot the data, outliers, and results of the fits. Plot each fit with a different color and line style, and plot the outliers with magenta asterisks.

```plot(fit1,"r-",xdata,ydata,"k.",outliers,"m*") hold on plot(fit2,"c--") plot(fit3,"b:") xlim([0 2*pi]) legend("data","outlier","fit1","fit2","fit3")```

The plot shows each fit with a different line color and style. All three fits follow the bulk of the data. `fit1` comes closer to the outliers than the other two fits.

Plot the residuals for `fit1`.

```figure plot(fit1,xdata,ydata,"co","residuals") hold on xlabel("xdata") ylabel("residuals") hold off```

The plot shows that the residuals for `fit1` have nonconstant variance across the values in `xdata`.

Input Arguments

collapse all

Surface fit object to plot, specified as an `sfit` object.

Curve fit object to plot, specified as a `cfit` object.

x-coordinates for the scatter plot data, specified as a numeric column vector. When plotting `cfit` objects, you must also specify `y` when you specify `x`. When plotting `sfit` objects, you must also specify `y` and `z` when you specify `x`. `x` and `y` must be the same size.

Data Types: `single` | `double`

y-coordinates for the scatter plot data, specified as a numeric column vector. When plotting `cfit` objects, you must also specify `x` when you specify `y`. When plotting `sfit` objects, you must also specify `x` and `z` when you specify `y`. `x` and `y` must be the same size.

Data Types: `single` | `double`

z-coordinates for the scatter plot data, specified as a numeric column vector. You can specify `z` only when plotting `sfit` objects, and you must also specify `x` and `y`. `z` and `x` must be the same size.

Data Types: `single` | `double`

Indicator to treat scatter plot data as outliers, specified as a logical expression, index vector, or a logical vector. You can specify `outliers` only when plotting `cfit` objects.

• Logical expression — `plot` treats data points that satisfy the expression as outliers.

• Index vector — `plot` treats data points at the specified indices as outliers.

• Logical vector — `plot` treats data points at positions where `outliers` is `true` as outliers. You can create a logical vector to specify outliers by using the `excludedata` function.

For an example, see Exclude Points from Fit.

Example: `x > 10` treats data with values for `x` greater than `10` as outliers.

Example: `[1 10 25]` treats data at indices `1`, `10`, and `25` as outliers.

Example: `[zeros(100,1);ones(50,1)]` treats the last `50` data points as outliers.

Data Types: `logical` | `single` | `double`

Line style, marker, and color for the scatter plot data, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

You can specify `DataLineSpec` only when plotting `cfit` objects.

Line StyleDescription
`-`Solid line (default)
`--`Dashed line
`:`Dotted line
`-.`Dash-dot line
MarkerDescription
`o`Circle
`+`Plus sign
`*`Asterisk
`.`Point
`x`Cross
`s`Square
`d`Diamond
`^`Upward-pointing triangle
`v`Downward-pointing triangle
`>`Right-pointing triangle
`<`Left-pointing triangle
`p`Pentagram
`h`Hexagram
ColorDescription

`y`

Yellow

`m`

Magenta

`c`

Cyan

`r`

Red

`g`

Green

`b`

Blue

`w`

White

`k`

Black

Example: `"--or"` specifies a red dashed line with circle markers.

Data Types: `char` | `string`

Line style, marker, and color for the curve given in `cfit`, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Line StyleDescription
`-`Solid line (default)
`--`Dashed line
`:`Dotted line
`-.`Dash-dot line
MarkerDescription
`o`Circle
`+`Plus sign
`*`Asterisk
`.`Point
`x`Cross
`s`Square
`d`Diamond
`^`Upward-pointing triangle
`v`Downward-pointing triangle
`>`Right-pointing triangle
`<`Left-pointing triangle
`p`Pentagram
`h`Hexagram
ColorDescription

`y`

Yellow

`m`

Magenta

`c`

Cyan

`r`

Red

`g`

Green

`b`

Blue

`w`

White

`k`

Black

Example: `"--or"` specifies a red dashed line with circle markers.

Data Types: `char` | `string`

Line style, marker, and color used to plot the outliers, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

You can specify `OutlierLineSpec` only when plotting `cfit` objects.

Line StyleDescription
`-`Solid line (default)
`--`Dashed line
`:`Dotted line
`-.`Dash-dot line
MarkerDescription
`o`Circle
`+`Plus sign
`*`Asterisk
`.`Point
`x`Cross
`s`Square
`d`Diamond
`^`Upward-pointing triangle
`v`Downward-pointing triangle
`>`Right-pointing triangle
`<`Left-pointing triangle
`p`Pentagram
`h`Hexagram
ColorDescription

`y`

Yellow

`m`

Magenta

`c`

Cyan

`r`

Red

`g`

Green

`b`

Blue

`w`

White

`k`

Black

Example: `"--or"` specifies a red dashed line with circle markers.

Data Types: `char` | `string`

Plot type for a curve fit, specified as one of the following:

• `"fit"` — Data and fit

• `"predfunc"` — Data and fit with prediction bounds for the fit

• `"predobs"` — Data and fit with prediction bounds for new observations

• `"residuals"` — Residuals

• `"stresiduals"` — Standardized residuals (residuals divided by their standard deviation)

• `"deriv1"` — First derivative of the fit

• `"deriv2"` — Second derivative of the fit

• `"integral"` — Integral of the fit

Data Types: `char` | `string`

Confidence level for the prediction intervals of a curve fit when `ptype` is `"predfunc"` or `"predobs"`, specified as a scalar value in the range (0,1).

Example: `0.99`

Data Types: `single` | `double`

Target axes, specified as an `Axes` object. If you do not specify the axes, then `plot` uses the current axes (`gca`).

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `plot(sfit,[x,y],z,YLim=[0,1],Exclude=[1 10 25])` specifies the y-axis limits and points to treat as outliers.

Indicator to treat scatter plot data as outliers, specified as a logical expression, index vector, or logical vector.

• Logical expression — `plot` treats data points that satisfy the expression as outliers.

• Index vector — `plot` treats data points at the specified indices as outliers.

• Logical vector — `plot` treats data points at positions where `outliers` is `true` as outliers. You can create a logical vector to specify outliers by using the `excludedata` function.

You must also specify `x`, `y`, and `z` input arguments when you specify `Exclude`.

For an example, see Exclude Points from Fit.

Example: `Exclude=x>10` treats data with values for `x` greater than `10` as outliers.

Example: `Exclude=[1 10 25]` treats data at indices `1`, `10`, and `25` as outliers.

Example: `Exclude=[zeros(100,1);ones(50,1)]` treats the last `50` data points as outliers.

Data Types: `logical` | `single` | `double`

Surface fit plot style, specified as one of the following:

• `"Surface"` — Plot the `sfit` object as a surface (default).

• `"PredFunc"` — Plot the `sfit` object as a surface with prediction bounds for the function.

• `"PredObs"` — Plot the `sfit` object as a surface with prediction bounds for new observations.

• `"Residuals"` — Plot the residuals for the `sfit` object. When you specify `Style` as `"Residuals"`, you must also specify `x`, `y`, and `z`.

• `"Contour"` — Plot the `sfit` object as a contour plot.

Example: `Style="Contour"`

Data Types: `char` | `string`

Confidence level for the prediction intervals of a surface fit when `Style` is `"PredFunc"` or `"PredObs"`, specified as a scalar value in the range (0,1).

Example: `Level=0.99`

Data Types: `single` | `double`

x-axis limit for a surface plot, specified as a numeric vector with two elements. If you provide `x`, `y`, and `z` data, the axes limits are given by `x` and `y`. Otherwise, `plot` uses the axes limits in `sfit`.

Example: `XLim=[0 1]`

Data Types: `single` | `double`

y-axis limit for a surface plot, specified as a numeric vector with two elements. If you provide `x`, `y`, and `z` data, the axes limits are given by `x` and `y`. Otherwise, `plot` uses the axes limits in `sfit`.

Example: `YLim=[-100 100]`

Data Types: `single` | `double`

Handle of the axes for a surface plot, specified as an `Axes` object.

Example: `Parent=ax`

Version History

Introduced before R2006a
