General CRC Syndrome Detector
Detect errors in received codeword frames according to generator polynomial
Libraries:
Communications Toolbox /
Error Detection and Correction /
CRC
Description
The General CRC Syndrome Detector block computes cyclic redundancy check (CRC) checksums for received codeword frames. For successful CRC detection in a communications system link, you must align the parameter settings of the General CRC Syndrome Detector block with the paired General CRC Generator block.
For more information, see CRC Syndrome Detector Operation.

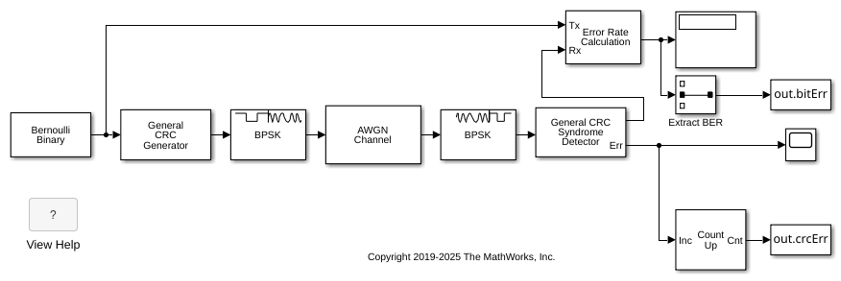

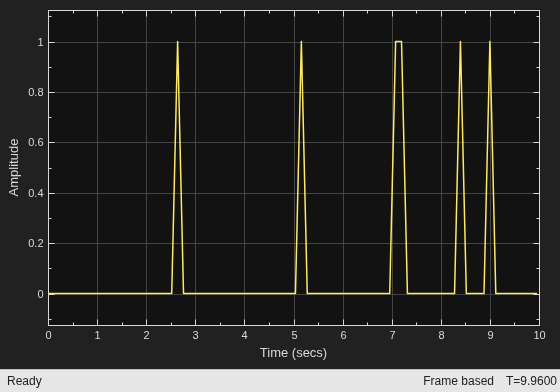

Examples
Ports
Input
In — Received codeword
binary column vector
Received codeword, specified as a binary column vector.
Data Types: double
 Boolean
Output
Out — Output frame
binary column vector
Output frame, returned as a binary column vector that inherits the data type of the input signal. The output frame contains the received codeword with the checksums removed.
The length of the output frame is n  k * r bits, where n is the size of the received codeword, k is the number of checksums per frame, and r is the degree of the generator polynomial.
Err — Checksum error signal
binary column vector
Checksum error signal, returned as a binary column vector that inherits the data type of
the input signal. The length of Err
equals the
value of Checksums per frame. For each checksum
computation, an element value of 0 in Err
indicates
no checksum error, and an element value of 1 in Err
indicates a checksum error.
Parameters
Generator polynomial — Generator polynomial
'z^16 + z^12 + z^5 + 1'
(default)  polynomial character vector  binary row vector  integer row vector
Generator polynomial for the CRC algorithm, specified as one of the following:
A polynomial character vector such as
'z^3 + z^2 + 1'
.A binary row vector that represents the coefficients of the generator polynomial in order of descending power. The length of this vector is (N+1), where N is the degree of the generator polynomial. For example,
[1 1 0 1]
represents the polynomial x^{3}+ z^{2}+ 1.An integer row vector containing the exponents of z for the nonzero terms in the polynomial in descending order. For example,
[3 2 0]
represents the polynomial z^{3 }+ z^{2 }+ 1.
For more information, see Representation of Polynomials in Communications Toolbox.
Some commonly used generator polynomials include:
CRC method  Generator polynomial

CRC32  'z^32 + z^26 + z^23 + z^22 + z^16 + z^12 + z^11 + z^10 + z^8 + z^7 + z^5 + z^4 + z^2 + z + 1'
CRC24  'z^24 + z^23 + z^14 + z^12 + z^8 + 1'
CRC16  'z^16 + z^15 + z^2 + 1'
Reversed CRC16  'z^16 + z^14 + z + 1'
CRC8  'z^8 + z^7 + z^6 + z^4 + z^2 + 1'
CRC4  'z^4 + z^3 + z^2 + z + 1'
Example: 'z^7 + z^2 + 1'
, [1 0 0 0 0 1 0
1]
, and [7 2 0]
represent the same
polynomial, p(z) =
z
^{7} + z
^{2} + 1.
Initial states — Initial states of internal shift register
0
(default)  1
 binary row vector
Initial states of the internal shift register, specified as a binary scalar or a binary row vector with a length equal to the degree of the generator polynomial. A scalar value is expanded to a row vector of equal length to the degree of the generator polynomial.
Direct method — Use direct algorithm for CRC checksum calculations
off
(default)  on
Select to use the direct algorithm for CRC checksum calculations. When cleared, the block uses the nondirect algorithm for CRC checksum calculations.
For more information on direct and nondirect algorithms, see Error Detection and Correction.
Reflect input bytes — Reflect input bytes
off
(default)  on
Select to flip the received codeword on a bytewise basis before entering
the data into the shift register. When Reflect input
bytes is selected, the received codeword length divided by
the value of the Checksums per frame
parameter must be an integer and a multiple of 8
. When
Reflect input bytes is cleared, the block does not
flip the input data.
Reflect checksums before final XOR — Reflect checksums before final XOR
off
(default)  on
Select Reflect checksums before final XOR to flip the CRC checksums around their centers after the input data are completely through the shift register. When Reflect checksums before final XOR is cleared, the block does not flip the CRC checksums.
Final XOR — Final XOR
0
(default)  1
 binary row vector
Final XOR, specified as a binary scalar or a binary row vector with a length equal to the
degree of the generator polynomial. The XOR operation runs using the value
of the Final XOR parameter and the CRC checksum before
comparing with the input checksum. A scalar value is expanded to a row
vector of equal length to the degree of the generator polynomial. A setting
of 0
is equivalent to no XOR operation.
Checksums per frame — Number of checksums calculated for each frame
1
(default)  positive integer
Number of checksums calculated for each frame, specified as a positive integer.
Block Characteristics
Data Types

Multidimensional Signals

VariableSize Signals

More About
Cyclic Redundancy Check Coding
Cyclic redundancy check (CRC) coding is an errorcontrol coding technique for detecting errors that occur when a data frame is transmitted. Unlike block or convolutional codes, CRC codes do not have a builtin errorcorrection capability. Instead, when a communications system detects an error in a received codeword, the receiver requests the sender to retransmit the codeword.
In CRC coding, the transmitter applies a rule to each data frame to create extra CRC bits, called the checksum or syndrome, and then appends the checksum to the data frame. After receiving a transmitted codeword, the receiver applies the same rule to the received codeword. If the resulting checksum is nonzero, an error has occurred and the transmitter should resend the data frame.
When the number of checksums per frame is greater than 1, the input data frame is divided into subframes, the rule is applied to each data subframe, and individual checksums are appended to each subframe. The subframe codewords are concatenated to output one frame.
For a discussion of the supported CRC algorithms, see Cyclic Redundancy Check Codes.
CRC Syndrome Detector Operation
The CRC syndrome detector outputs the received message frame and a checksum error vector according to the specified generator polynomial and number of checksums per frame.
The checksum bits are removed from each subframe, so that the resulting the output frame length is n  k × r, where n is the size of the received codeword, k is the number of checksums per frame, and r is the degree of the generator polynomial. The input frame must be evenly divisible by k.
For a specific initial state of the internal shift register:
The received codeword is divided into k equal sized subframes.
The CRC is removed from each of the k subframes and compared to the checksum calculated on the received codeword subframes.
The output frame is assembled by concatenating the subframe bits of the k subframes and then output as a column vector.
The checksum error is output as a binary column vector of length k. An element value of 0 indicates an errorfree received subframe, and an element value of 1 indicates an error occurred in the received subframe.
For the scenario shown here, a 16bit codeword is received, a third degree generator polynomial computes the CRC checksum, the initial state is 0, and the number of checksums per frame is 2.
Since the number of checksums per frame is 2 and the generator polynomial degree is 3, the
received codeword is split in half and two checksums of size 3 are computed, one for each
half of the received codeword. The initial states are not shown, because an initial state of
[0]
does not affect the output of the CRC algorithm. The output frame
contains the concatenation of the two halves of the received codeword as a single vector of
size 10. The checksum error signal output contains a 2by1 binary frame vector whose
entries depend on whether the computed checksums are zero. As shown in the figure, the first
checksum is nonzero and the second checksum is zero, indicating an error occurred in
reception of the first half of the codeword.
References
[1] Sklar, Bernard. Digital Communications: Fundamentals and Applications. Englewood Cliffs, N.J.: PrenticeHall, 1988.
[2] Wicker, Stephen B. Error Control Systems for Digital Communication and Storage. Upper Saddle River, N.J.: Prentice Hall, 1995.
