eyediagram(x,n) generates
an eye diagram for signal x, plotting n samples in
each trace. The labels on the horizontal axis of the diagram range between –1/2 and 1/2. The
function assumes that the first value of the signal and every nth value
thereafter, occur at integer times.

eyediagram(x,n,period)
sets the labels on the horizontal axis to the range between –period/2
to period/2.

eyediagram(x,n,period,offset)
specifies the offset for the eye diagram. The function assumes that the
(offset + 1)th value of the signal and every nth
value thereafter, occur at times that are integer multiples of
period.

eyediagram(x,n,period,offset,plotstring,h)
generates the eye diagram in an existing figure whose handle is
h.

Note

Use of hold on to plot multiple signals in the same figure is not
supported.

h = eyediagram(___) returns the
handle to the figure that contains the eye diagram. You can specify any of the input
argument combinations from the previous syntaxes.

The interpretation of x and the number of plots depend on the
shape and complexity of x.

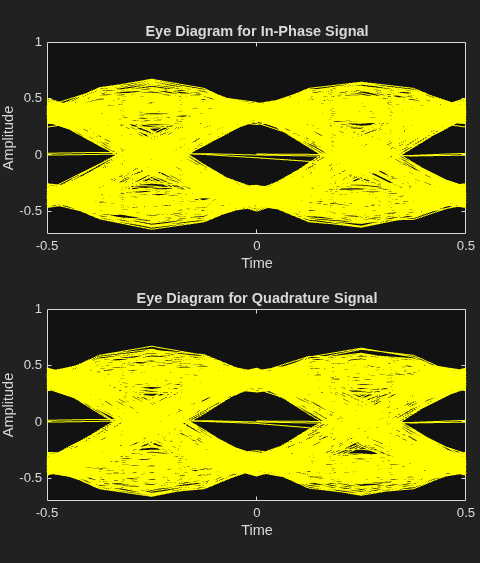

If x is a real-valued two-column matrix, the function
interprets the first column as in-phase components and the second column as
quadrature components. The two components appear in different subplots of a single
figure window.

If x is a complex-valued vector, the function interprets
the real part as in-phase components and the imaginary part as quadrature
components. The two components appear in different subplots of a single figure
window.

If x is a real-valued vector, the function interprets the
vector as a real signal. The figure window contains a single plot.

Data Types: double Complex Number Support: Yes

n — Number of samples per trace integer greater than 1

Number of samples per trace, specified as a integer greater than 1.

Data Types: double

period — Trace period 1 (default) | positive scalar

Trace period, specified as a positive scalar. The labels on the horizontal axis of
the eye diagram range between –period/2 to
period/2.

Data Types: double

offset — Offset value 0 (default) | integer in the range from 0 to (n–1)

Offset value, specified as an integer in the range 0 to (n–1).
The function assumes that the (offset + 1)th value of the signal
and every nth value thereafter, occur at times that are integer
multiples of the input period.

Plot attributes, specified as a character vector or string scalar containing
symbols.

This argument sets the plotting symbol, line type, and color for the eye diagram.
The format and meaning of the symbols are the same as in the plot function. For example, the default value 'b-'
produces a solid blue line.

Data Types: char | string

h — Figure handle Figure object

Figure handle to an existing figure that contains an eye diagram, specified as a
Figure object. h must be a handle to a figure
that the eyediagram function previously generated.
