Compensate for carrier frequency offset
The Carrier Synchronizer block compensates for carrier frequency and phase offsets using a closed-loop approach for BPSK, QPSK, OQPSK, 8-PSK, QAM, and PAM modulation schemes. The block accepts a single input port. To obtain an estimate of the phase error in radians, select the Estimated phase error output port check box. The block accepts a sample- or frame-based complex input signal and returns a complex output signal and a an real phase estimate. The block outputs have the same dimensions as the input.
Specify the modulation type as
This object supports CPM. It has been tested for a CPM signal having 1 sample per symbol and a modulation index of 0.5.
Specify the method used to calculate the modulation phase offset as either
Auto applies the traditional offset for
the specified modulation type.
Custom enables the Custom
phase offset (radians) parameter.
Specify the phase offset in radians as a real scalar. This parameter is
available only when Modulation phase offset is set to
Specify the number of samples per symbol as a positive integer scalar.
Specify the damping factor of the loop as a positive real finite scalar.
Specify the normalized loop bandwidth as a real scalar between 0 and 1. The bandwidth is normalized by the sample rate of the carrier synchronizer block.
Select this check box to provide the estimated phase error to an output port.
Select the simulation mode.
On the first model run, simulate and generate code for the block using only MATLAB® functions supported for code generation. If the structure of the block does not change, subsequent model runs do not regenerate the code.
If the simulation mode is
generation, system objects accept a maximum of
Simulate model using all supported MATLAB functions. Choosing this option can slow simulation performance.
This block implements the algorithm, inputs, and outputs described on the
comm.CarrierSynchronizer reference page. The object properties correspond
to the block parameters.
Correct for a phase and frequency offset imposed on a noisy 16-QAM channel using the Carrier Synchronizer block.
Open the doc_qamcarriersync model.

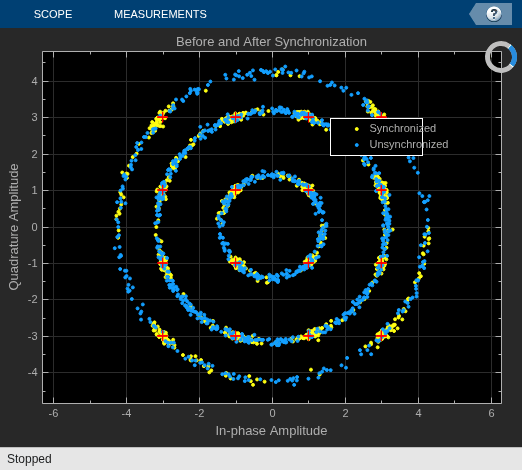

Run the model. The Constellation Diagram Without Sync block shows a spiral pattern that indicates a phase and frequency offset. After the carrier synchronizer converges to a solution, the data displayed on the Constellation Diagram With Sync block are grouped around the reference constellation.
Experiment with the parameters in the Phase/Frequency Offset and Carrier Synchronizer blocks. By varying these parameters, you can change how quickly the output conforms to an ideal 16-QAM constellation.
If the signal does not converge to the expected constellation, additional measures can be taken to achieve successful recovery. For more information, see the Correct Phase and Frequency Offset for 16-QAM Using Coarse and Fine Synchronization example.
|Port||Supported Data Types|
|Phase Error Estimate||
 Rice, Michael. Digital Communications: A Discrete-Time Approach. Upper Saddle River, NJ: Prentice Hall, 2009, pp. 359–393.
 Huang, Zhijie, Zhiqiang Yi, Ming Zhang, and Kuang Wang. “8PSK Demodulation for New Generation DVB-S2.” International Conference on Communications, Circuits and Systems, 2004. ICCCAS 2004. Vol. 2, 2004, pp. 1447–1450.
