Phase/Frequency Offset

Apply phase and frequency offsets to complex baseband signal

• Library:

• Communications Toolbox / RF Impairments Correction

  Communications Toolbox / RF Impairments

•

Description

The Phase/Frequency Offset block applies phase and frequency offsets to a complex signal.

This icon shows the block with all ports enabled.

Ports

Input

In — Complex signal

scalar | vector | matrix

Complex signal, specified as a scalar, vector, or matrix. The port is unnamed until you enable the Frequency offset from port parameter.

Data Types: double | single
Complex Number Support: Yes

Frq — Frequency offset

scalar | vector | matrix

Frequency offset, specified as a scalar, a vector with the same number of rows or columns as the input signal, or a matrix with the same dimensions as the input signal. For more information, see Interdependent Parameter-Port Dimensions.

Dependencies

To enable this port, select the Frequency offset from port parameter.

Data Types: double | single

Output

Out1 — Output signal

scalar | vector | matrix

Output signal, returned as a scalar, vector, or matrix. This output is the same dimension and data type as the input signal.

Parameters

Phase offset (deg) — Phase offset

0 (default) | scalar | vector | matrix

Phase offset in degrees, specified as a scalar, vector, or matrix.

If Phase offset (deg) and Frequency offset (Hz) are both nonscalar, they must be the same size.

Tunable: Yes

Frequency offset from port — Option to add port to set frequency offset

off (default) | on

Select this parameter to add the Frq port.

• When you select this parameter, the Frq port specifies the frequency offset.

• When you clear this parameter, the Frequency offset (Hz) parameter specifies the frequency offset.

Frequency offset (Hz) — Frequency offset

0 (default) | scalar | vector | matrix

Frequency offset in hertz, specified as a scalar, a vector with the same number of rows or columns as the input signal, or a matrix with the same dimensions as the input signal. For more information, see Interdependent Parameter-Port Dimensions.

If Phase offset (deg) and Frequency offset (Hz) are both nonscalar, they must be the same size.

Tunable: Yes

Dependencies

To enable this port, clear the Frequency offset from port parameter.

Model Examples

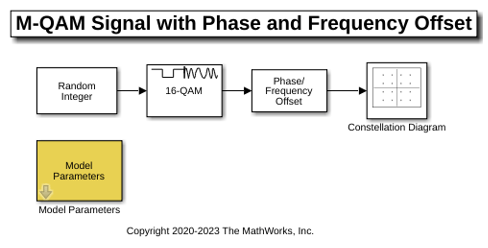

Apply Phase/Frequency Offset to QAM Modulated Signal

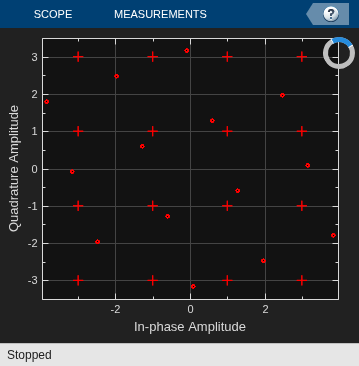

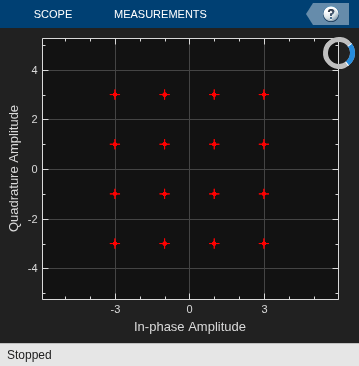

The model applies phase and frequency offsets to a 16-ary quadrature amplitude modulation (16-QAM) signal. The Phase/Frequency Offset block applies phase and frequency offsets to the input signal based on parameter settings specified in the Model Parameters block. The effects of updating the offset settings are illustrated by constellation diagrams of a 16-QAM signal.

Open Model

Block Characteristics

Data Types	double | single
Multidimensional Signals	no
Variable-Size Signals	no

More About

Interdependent Parameter-Port Dimensions

This table outlines the interdependency of parameter-to-port dimensions.

Number of Dimensions	Data I/O Dimension	Frame Size	Number of Channels	Frequency/Phase Offset Parameter Dimension	Frequency Offset Input Port Dimension
Any	Scalar	1	1	Scalar	Scalar
2	M-by-1	M	1	M-by-1 1-by-M 1-by-1	M M-by-1 1 1-by-1
2	1-by-N	1	N	N-by-1 1-by-N 1-by-1	N 1-by-N 1 1-by-1
2	M-by-N	M	N	M-by-N N-by-1 1-by-N M-by-1 1-by-M 1-by-1	M-by-N N 1-by-N 1 1-by-1 M M-by-1

For example:

• When you specify a scalar offset parameter, the block applies the same offset to all elements of the input signal

• When you specify a 2-by-1 offset parameter for a 2-by-3 input signal (one offset value per sample), the block applies the same sample offset across the three channels.

• When you specify a 1-by-3 offset parameter for a 2-by-3 input signal (one offset value per channel), the same channel offset is applied across the two samples of a channel.

• When you specify a 2-by-3 offset parameter for a 2-by-3 input signal (one offset value per sample for each channel), the offsets are applied element-wise to the input signal.

Algorithms

If the input signal is u(t), then the output signal is

$$y(t)=u(t)\cdot \left(\cos \left(2\pi {\displaystyle {\int }_0^{t}f\left(\tau \right)d\tau +\phi (t)}\right)+j\sin \left(2\pi {\displaystyle {\int }_0^{t}f\left(\tau \right)d\tau +\phi (t)}\right)\right)\text{,}$$

where f(t) is the frequency offset, and φ(t) is the phase offset.

The discrete-time output is given by

$$\begin{array}{l}y(0)=u(0)\left(\cos \left(\phi (0)\right)+j\sin \left(\phi (0)\right)\right)\text{ and }\\ y(i)=u(i)\left(\cos \left(2\pi {\displaystyle \sum _{n=0}^{i-1}f\left(n\right)\Delta t}+\phi (i)\right)+j\sin \left(2\pi {\displaystyle \sum _{n=0}^{i-1}f\left(n\right)\Delta t}+\phi (i)\right)\right)\text{,}\end{array}$$

where i > 0, and Δt is the sample time.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The Frequency offset (Hz) and Phase offset (deg) parameters are tunable in Normal mode, Accelerator mode, and Rapid Accelerator mode. If you use the Simulink^® Coder™ rapid simulation (RSIM) target to build an RSIM executable, then you can tune these parameters without recompiling the model. For more information, see Tunable Parameters (Simulink).

Version History

Introduced before R2006a
