vggish

(Not recommended) VGGish neural network

Since R2020b

vggish is not recommended. Use the audioPretrainedNetwork function instead.

Syntax

net = vggish

Description

net = vggish returns a pretrained VGGish model.

This function requires both Audio Toolbox™ and Deep Learning Toolbox™.

Examples

Download VGGish Network

Download and unzip the Audio Toolbox™ model for VGGish.

Type vggish at the Command Window. If the Audio Toolbox model for VGGish is not installed, then the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB path.

Alternatively, execute these commands to download and unzip the VGGish model to your temporary directory.

downloadFolder = fullfile(tempdir,'VGGishDownload');
loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/vggish.zip');
VGGishLocation = tempdir;
unzip(loc,VGGishLocation)
addpath(fullfile(VGGishLocation,'vggish'))

Check that the installation is successful by typing vggish at the Command Window. If the network is installed, then the function returns a SeriesNetwork (Deep Learning Toolbox) object.

vggish

ans =
  SeriesNetwork with properties:

         Layers: [24×1 nnet.cnn.layer.Layer]
     InputNames: {'InputBatch'}
    OutputNames: {'regressionoutput'}

Load Pretrained VGGish Network

Load a pretrained VGGish convolutional neural network and examine the layers and classes.

Use vggish to load the pretrained VGGish network. The output net is a SeriesNetwork (Deep Learning Toolbox) object.

net = vggish

net =
  SeriesNetwork with properties:

         Layers: [24×1 nnet.cnn.layer.Layer]
     InputNames: {'InputBatch'}
    OutputNames: {'regressionoutput'}

View the network architecture using the Layers property. The network has 24 layers. There are nine layers with learnable weights, of which six are convolutional layers and three are fully connected layers.

net.Layers

ans =
  24×1 Layer array with layers:

     1   'InputBatch'         Image Input         96×64×1 images
     2   'conv1'              Convolution         64 3×3×1 convolutions with stride [1  1] and padding 'same'
     3   'relu'               ReLU                ReLU
     4   'pool1'              Max Pooling         2×2 max pooling with stride [2  2] and padding 'same'
     5   'conv2'              Convolution         128 3×3×64 convolutions with stride [1  1] and padding 'same'
     6   'relu2'              ReLU                ReLU
     7   'pool2'              Max Pooling         2×2 max pooling with stride [2  2] and padding 'same'
     8   'conv3_1'            Convolution         256 3×3×128 convolutions with stride [1  1] and padding 'same'
     9   'relu3_1'            ReLU                ReLU
    10   'conv3_2'            Convolution         256 3×3×256 convolutions with stride [1  1] and padding 'same'
    11   'relu3_2'            ReLU                ReLU
    12   'pool3'              Max Pooling         2×2 max pooling with stride [2  2] and padding 'same'
    13   'conv4_1'            Convolution         512 3×3×256 convolutions with stride [1  1] and padding 'same'
    14   'relu4_1'            ReLU                ReLU
    15   'conv4_2'            Convolution         512 3×3×512 convolutions with stride [1  1] and padding 'same'
    16   'relu4_2'            ReLU                ReLU
    17   'pool4'              Max Pooling         2×2 max pooling with stride [2  2] and padding 'same'
    18   'fc1_1'              Fully Connected     4096 fully connected layer
    19   'relu5_1'            ReLU                ReLU
    20   'fc1_2'              Fully Connected     4096 fully connected layer
    21   'relu5_2'            ReLU                ReLU
    22   'fc2'                Fully Connected     128 fully connected layer
    23   'EmbeddingBatch'     ReLU                ReLU
    24   'regressionoutput'   Regression Output   mean-squared-error

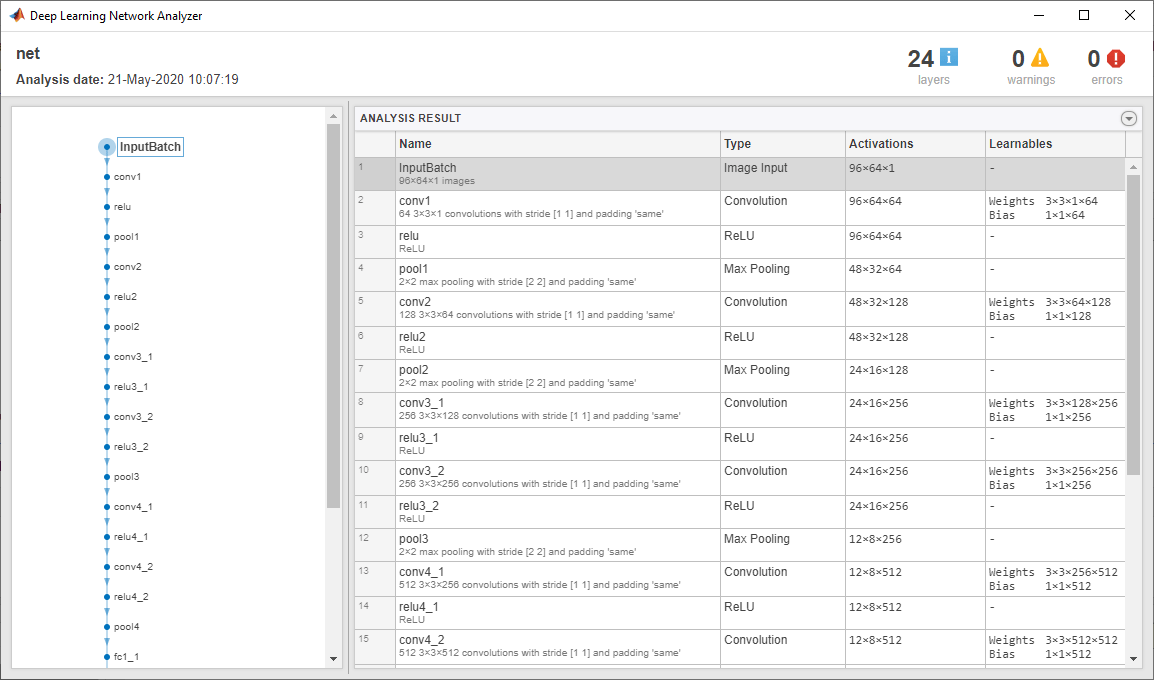

Use analyzeNetwork (Deep Learning Toolbox) to visually explore the network.

analyzeNetwork(net)

Extract Feature Embeddings Using VGGish

Read in an audio signal to extract feature embeddings from it.

[audioIn,fs] = audioread("Ambiance-16-44p1-mono-12secs.wav");

Plot and listen to the audio signal.

t = (0:numel(audioIn)-1)/fs;
plot(t,audioIn)
xlabel("Time (s)")
ylabel("Ampltiude")
axis tight

sound(audioIn,fs)

VGGish requires you to preprocess the audio signal to match the input format used to train the network. The preprocesssing steps include resampling the audio signal and computing an array of mel spectrograms. To learn more about mel spectrograms, see melSpectrogram. Use vggishPreprocess to preprocess the signal and extract the mel spectrograms to be passed to VGGish. Visualize one of these spectrograms chosen at random.

spectrograms = vggishPreprocess(audioIn,fs);

arbitrarySpect = spectrograms(:,:,1,randi(size(spectrograms,4)));
surf(arbitrarySpect,EdgeColor="none")
view(90,-90)
xlabel("Mel Band")
ylabel("Frame")
title("Mel Spectrogram for VGGish")
axis tight

Create a VGGish neural network using the audioPretrainedNetwork function.

net = audioPretrainedNetwork("vggish");

Call predict with the network on the preprocessed mel spectrogram images to extract feature embeddings. The feature embeddings are returned as a numFrames-by-128 matrix, where numFrames is the number of individual spectrograms and 128 is the number of elements in each feature vector.

features = predict(net,spectrograms);
[numFrames,numFeatures] = size(features)

numFrames = 24

numFeatures = 128

Visualize the VGGish feature embeddings.

surf(features,EdgeColor="none")
view([90 -90])
xlabel("Feature")
ylabel("Frame")
title("VGGish Feature Embeddings")
axis tight

Transfer Learning Using VGGish

In this example, you transfer the learning in the VGGish regression model to an audio classification task.

Download and unzip the environmental sound classification data set. This data set consists of recordings labeled as one of 10 different audio sound classes (ESC-10).

downloadFolder = matlab.internal.examples.downloadSupportFile("audio","ESC-10.zip");
unzip(downloadFolder,tempdir)
dataLocation = fullfile(tempdir,"ESC-10");

Create an audioDatastore object to manage the data and split it into train and validation sets. Call countEachLabel to display the distribution of sound classes and the number of unique labels.

ads = audioDatastore(dataLocation,IncludeSubfolders=true,LabelSource="foldernames");
labelTable = countEachLabel(ads)

labelTable=10×2 table
        Label         Count
    ______________    _____

    chainsaw           40
    clock_tick         40
    crackling_fire     40
    crying_baby        40
    dog                40
    helicopter         40
    rain               40
    rooster            38
    sea_waves          40
    sneezing           40

Determine the total number of classes and their names.

numClasses = height(labelTable);
classNames = unique(ads.Labels);

Call splitEachLabel to split the data set into train and validation sets. Inspect the distribution of labels in the training and validation sets.

[adsTrain, adsValidation] = splitEachLabel(ads,0.8);

countEachLabel(adsTrain)

ans=10×2 table
        Label         Count
    ______________    _____

    chainsaw           32
    clock_tick         32
    crackling_fire     32
    crying_baby        32
    dog                32
    helicopter         32
    rain               32
    rooster            30
    sea_waves          32
    sneezing           32

countEachLabel(adsValidation)

ans=10×2 table
        Label         Count
    ______________    _____

    chainsaw            8
    clock_tick          8
    crackling_fire      8
    crying_baby         8
    dog                 8
    helicopter          8
    rain                8
    rooster             8
    sea_waves           8
    sneezing            8

The VGGish network expects audio to be preprocessed into log mel spectrograms. Use vggishPreprocess to extract the spectrograms from the train set. There are multiple spectrograms for each audio signal. Replicate the labels so that they are in one-to-one correspondence with the spectrograms.

overlapPercentage = 75;

trainFeatures = [];
trainLabels = [];
while hasdata(adsTrain)
    [audioIn,fileInfo] = read(adsTrain);
    features = vggishPreprocess(audioIn,fileInfo.SampleRate,OverlapPercentage=overlapPercentage);
    numSpectrograms = size(features,4);
    trainFeatures = cat(4,trainFeatures,features);
    trainLabels = cat(2,trainLabels,repelem(fileInfo.Label,numSpectrograms));
end

Extract spectrograms from the validation set and replicate the labels.

validationFeatures = [];
validationLabels = [];
segmentsPerFile = zeros(numel(adsValidation.Files), 1);
idx = 1;
while hasdata(adsValidation)
    [audioIn,fileInfo] = read(adsValidation);
    features = vggishPreprocess(audioIn,fileInfo.SampleRate,OverlapPercentage=overlapPercentage);
    numSpectrograms = size(features,4);
    validationFeatures = cat(4,validationFeatures,features);
    validationLabels = cat(2,validationLabels,repelem(fileInfo.Label,numSpectrograms));

    segmentsPerFile(idx) = numSpectrograms;
    idx = idx + 1;
end

Load the VGGish model and using audioPretrainedNetwork.

net = audioPretrainedNetwork("vggish");

Use addLayers (Deep Learning Toolbox) to add a fullyConnectedLayer (Deep Learning Toolbox) and a softmaxLayer (Deep Learning Toolbox) to the network. Set the WeightLearnRateFactor and BiasLearnRateFactor of the new fully connected layer to 10 so that learning is faster in the new layer than in the transferred layers.

net = addLayers(net,[ ...
    fullyConnectedLayer(numClasses,Name="FCFinal",WeightLearnRateFactor=10,BiasLearnRateFactor=10)
    softmaxLayer(Name="softmax")]);

Use connectLayers (Deep Learning Toolbox) to append the fully connected and softmax layers to the network.

net = connectLayers(net,"EmbeddingBatch","FCFinal");

To define training options, use trainingOptions (Deep Learning Toolbox).

miniBatchSize = 128;
options = trainingOptions("adam", ...
    MaxEpochs=5, ...
    MiniBatchSize=miniBatchSize, ...
    Shuffle="every-epoch", ...
    ValidationData={validationFeatures,validationLabels'}, ...
    ValidationFrequency=50, ...
    LearnRateSchedule="piecewise", ...
    LearnRateDropFactor=0.5, ...
    LearnRateDropPeriod=2, ...
    OutputNetwork="best-validation-loss", ...
    Verbose=false, ...
    Plots="training-progress",...
    Metrics="accuracy");

To train the network, use trainnet.

[trainedNet,netInfo] = trainnet(trainFeatures,trainLabels',net,"crossentropy",options);

Each audio file was split into several segments to feed into the VGGish network. Combine the predictions for each file in the validation set using a majority-rule decision.

scores = predict(trainedNet,validationFeatures);
validationPredictions = scores2label(scores,classNames);

idx = 1;
validationPredictionsPerFile = categorical;
for ii = 1:numel(adsValidation.Files)
    validationPredictionsPerFile(ii,1) = mode(validationPredictions(idx:idx+segmentsPerFile(ii)-1));
    idx = idx + segmentsPerFile(ii);
end

Use confusionchart (Deep Learning Toolbox) to evaluate the performance of the network on the validation set.

figure(Units="normalized",Position=[0.2 0.2 0.5 0.5]);
confusionchart(adsValidation.Labels,validationPredictionsPerFile, ...
    Title=sprintf("Confusion Matrix for Validation Data \nAccuracy = %0.2f %%",mean(validationPredictionsPerFile==adsValidation.Labels)*100), ...
    ColumnSummary="column-normalized", ...
    RowSummary="row-normalized")

Output Arguments

net — Pretrained VGGish neural network

SeriesNetwork object

Pretrained VGGish neural network, returned as a SeriesNetwork (Deep Learning Toolbox) object.

References

[1] Gemmeke, Jort F., Daniel P. W. Ellis, Dylan Freedman, Aren Jansen, Wade Lawrence, R. Channing Moore, Manoj Plakal, and Marvin Ritter. 2017. “Audio Set: An Ontology and Human-Labeled Dataset for Audio Events.” In 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), 776–80. New Orleans, LA: IEEE. https://doi.org/10.1109/ICASSP.2017.7952261.

[2] Hershey, Shawn, Sourish Chaudhuri, Daniel P. W. Ellis, Jort F. Gemmeke, Aren Jansen, R. Channing Moore, Manoj Plakal, et al. 2017. “CNN Architectures for Large-Scale Audio Classification.” In 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), 131–35. New Orleans, LA: IEEE. https://doi.org/10.1109/ICASSP.2017.7952132.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• To create a SeriesNetwork or DAGNetwork object for code generation, see Load Pretrained Networks for Code Generation (MATLAB Coder).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• To create a SeriesNetwork or DAGNetwork object for code generation, see Load Pretrained Networks for Code Generation (GPU Coder).

Version History

Introduced in R2020b
