Gammatone filter bank


gammatoneFilterBank decomposes a signal by passing it through a bank of gammatone filters equally spaced on the ERB scale. Gammatone filter banks were designed to model the human auditory system.

To model the human auditory system:

  1. Create the gammatoneFilterBank object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?



gammaFiltBank = gammatoneFilterBank returns a gammatone filter bank. The object filters data independently across each input channel over time.

gammaFiltBank = gammatoneFilterBank(range) sets the Range property to range.

gammaFiltBank = gammatoneFilterBank(range,numFilts) sets the NumFilters property to numFilts.

gammaFiltBank = gammatoneFilterBank(range,numFilts,fs) sets the SampleRate property to fs.

gammaFiltBank = gammatoneFilterBank(___,Name,Value) sets each property Name to the specified Value. Unspecified properties have default values.

Example: gammaFiltBank = gammatoneFilterBank([62.5,12e3],'SampleRate',24e3) creates a gammatone filter bank, gammaFiltBank, with bandpass filters placed between 62.5 Hz and 12 kHz. gammaFiltBank operates at a sample rate of 24 kHz.


expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Frequency range of the filter bank in Hz, specified as a two-element row vector of monotonically increasing values.

Tunable: No

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Number of filters in the filter bank, specified as a positive integer scalar.

Tunable: No

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Input sample rate in Hz, specified as a positive scalar.

Tunable: Yes

Data Types: single | double




audioOut = gammaFiltBank(audioIn) applies the gammatone filter bank on the input and returns the filtered output.

Input Arguments

expand all

Audio input to the filter bank, specified as a scalar, vector, or matrix. If specified as a matrix, the columns are treated as independent audio channels.

Data Types: single | double

Output Arguments

expand all

Audio output from the filter bank, returned as a scalar, vector, matrix, or 3-D array. The shape of audioOut depends on the shape of audioIn and NumFilters. If audioIn is an M-by-N matrix, then audioOut is returned as an M-by-NumFilters-by-N array. If N is 1, then audioOut is returned as a matrix.

Data Types: single | double

Object Functions

To use an object function, specify the System object™ as the first input argument. For example, to release system resources of a System object named obj, use this syntax:


expand all

fvtoolVisualize filter bank
freqzCompute frequency response
getCenterFrequenciesCenter frequencies of filters
getBandwidthsGet filter bandwidths
coeffsGet filter coefficients
infoGet filter information
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object


collapse all

Create a default gammatone filter bank for a 16 kHz sample rate.

fs = 16e3;
gammaFiltBank = gammatoneFilterBank(SampleRate=fs)
gammaFiltBank =

  gammatoneFilterBank with properties:

    FrequencyRange: [50 8000]
        NumFilters: 32
        SampleRate: 16000

Use fvtool to visualize the response of the filter bank.

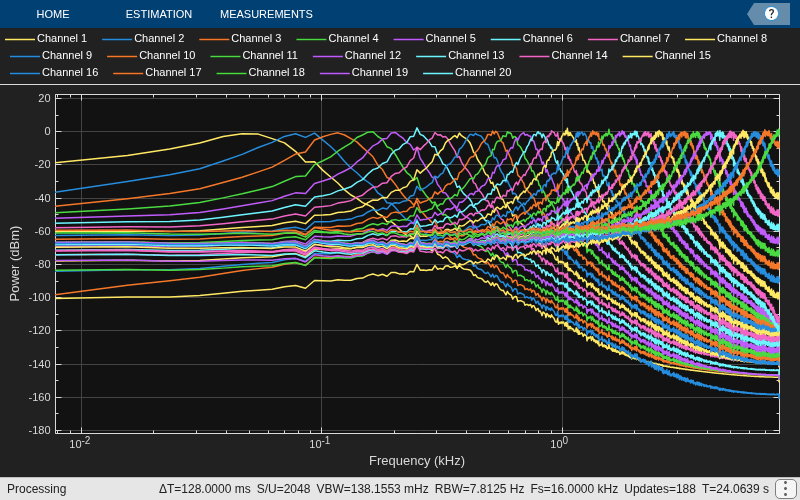

Process white Gaussian noise through the filter bank. Use a spectrum analyzer to view the spectrum of the filter outputs.

sa = spectrumAnalyzer(SampleRate=16e3,...

for i = 1:5000
    x = randn(256,1);
    y = gammaFiltBank(x);

This example illustrates a nonoptimal but simple approach to analysis and synthesis using gammatoneFilterBank.

Read in an audio file and listen to its contents.

[audioIn,fs] = audioread('Counting-16-44p1-mono-15secs.wav');

Create a default gammatoneFilterBank. The default frequency range of the filter bank is 50 to 8000 Hz. Frequencies outside of this range are attenuated in the reconstructed signal.

gammaFiltBank = gammatoneFilterBank('SampleRate',fs)
gammaFiltBank =
  gammatoneFilterBank with properties:

    FrequencyRange: [50 8000]
        NumFilters: 32
        SampleRate: 44100

Pass the audio signal through the gammatone filter bank. The output is 32 channels, where the number of channels is set by the NumFilters property of the gammatoneFilterBank.

audioOut = gammaFiltBank(audioIn);

[N,numChannels] = size(audioOut)
N = 685056
numChannels = 32

To reconstruct the original signal, sum the channels. Listen to the result.

reconstructedSignal = sum(audioOut,2);

The gammatone filter bank introduced various group delays for the output channels, which results in poor reconstruction. To compensate for the group delay, remove the beginning delay from the individual channels and zero-pad the ends of the channels. Use info to get the group delays. Listen to the group delay-compensated reconstruction.

infoStruct = info(gammaFiltBank);
groupDelay = round(infoStruct.GroupDelays); % round for simplicity

audioPadded = [audioOut;zeros(max(groupDelay),gammaFiltBank.NumFilters)];

for i = 1:gammaFiltBank.NumFilters
    audioOut(:,i) = audioPadded(groupDelay(i)+1:N+groupDelay(i),i);

reconstructedSignal = sum(audioOut,2);

Read in an audio signal and convert it to mono for easy visualization.

[audio,fs] = audioread("WaveGuideLoopOne-24-96-stereo-10secs.aif");
audio = mean(audio,2);

Create a gammatoneFilterBank with 64 filters that span the range 62.5 to 20,000 Hz. Pass the audio signal through the filter bank.

gammaFiltBank = gammatoneFilterBank(SampleRate=fs, ...
                                    NumFilters=64, ...

audioOut = gammaFiltBank(audio);

Calculate the energy-per-band using 50 ms windows with 25 ms overlap. Use dsp.AsyncBuffer to divide the signals into overlapped windows and then to log the RMS value of each window for each channel.

samplesPerFrame = round(0.05*fs);
samplesOverlap = round(0.025*fs);

buff = dsp.AsyncBuffer(numel(audio));

sink = dsp.AsyncBuffer(numel(audio));

while buff.NumUnreadSamples > 0
    currentFrame = read(buff,samplesPerFrame,samplesOverlap);

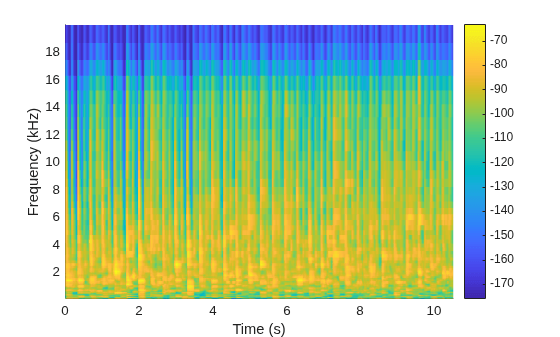

Convert the energy values to dB. Plot the energy-per-band over time.

gammatoneSpec = read(sink);
D = 20*log10(gammatoneSpec');

timeVector = ((samplesPerFrame-samplesOverlap)/fs)*(0:size(D,2)-1);
cf = getCenterFrequencies(gammaFiltBank)./1e3;

axis([timeVector(1) timeVector(end) cf(1) cf(end)])
view([0 90])
xlabel("Time (s)")
ylabel("Frequency (kHz)")


expand all

A gammatone filter bank is often used as the front end of a cochlea simulation, which transforms complex sounds into a multichannel activity pattern like that observed in the auditory nerve.[2] The gammatoneFilterBank follows the algorithm described in [1]. The algorithm is an implementation of an idea proposed in [2]. The design of the gammatone filter bank can be described in two parts: the filter shape (gammatone) and the frequency scale. The equivalent rectangular bandwidth (ERB) scale defines the relative spacing and bandwidth of the gammatone filters. The derivation of the ERB scale also provides an estimate of the auditory filter response which closely resembles the gammatone filter.
