PCBReader

Import and update Gerber files

Description

Use the PCBReader object to create a printed circuit board (PCB) reader to import Gerber files and to facilitate the creation of an antenna model. A Gerber file is a set of manufacturing files used to describe a PCB antenna. A Gerber file uses an ASCII vector format to describe 2-D binary images.

Creation

You can create a PCBReader object using the following methods:

  • gerberRead — Create a PCBReader object with the specified Gerber and drill files.

  • The PCBReader function described here.

Description

example

B = PCBReader(S) creates a PCBReader object that imports multilayer PCB antenna design files described in the stackUp object .

Note

The PCBReader object reads RS-274X Gerber files. It does not support RS-274D Gerber files.

example

B = PCBReader(Name,Value) sets Properties using name-value pairs. For example, B = PCBReader('StackUp',S,'Drillfile','ant.txt') imports the layer and drill files into the PCBReader. You can specify multiple name-value pairs. Enclose each property name in quotes. Properties not specified retain their default values.

Input Arguments

expand all

PCB stackup definition, specified as a stackUp object. For more information, see stackUp.

Example: S = stackUp; B = PCBReader(S)

Example: B = PCBReader('StackUp',S)

Properties

expand all

PCB stackup definition, specified as a stackUp object.

Example: S = stackUp; B.StackUp = S;

Example: B = PCBReader('StackUp',S)

Name of Excellon drill file, specified as a character vector or string scalar. You can specify either a DRL or a TXT file.

Example: B.DrillFile = 'ant.drl'

Discretization points on curved segments, specified as a positive scalar.

Example: B.NumPointsOnCurves = 80

Object Functions

pcbStackSingle-feed or multifeed PCB antenna
shapesExtract and modify metal layers from PCBReader object

Examples

collapse all

Create a default PCB stackup definition object.

S = stackUp;

Set the thickness of the dielectric Air in layer 1 and layer 5 of the stackUp object to 0.1 mm.

S.Layer1.Thickness = 0.1e-3;
S.Layer5.Thickness = 0.1e-3;

Import a top layer Gerber file to layer 2.

S.Layer2 = 'antenna_design_file.gtl';

Import a bottom layer Gerber file to layer 4.

S.Layer4 = 'antenna_design_file.gbl';

Create a PCBReader object, B, using the stackUp object, S.

B = PCBReader('StackUp',S);

Create a default PCB stackup definition object.

s = stackUp;

Import a top layer Gerber file to layer 2.

s.Layer2 = 'patchMicrostripCircular_design_file.gtl';

Create a PCBReader object using the stackUp object.

p = PCBReader('StackUp',s);

To update the Gerber file, convert the PCBReader object to a pcbStack object.

p3 = pcbStack(p);

View the pcbStack object.

figure
show(p3)

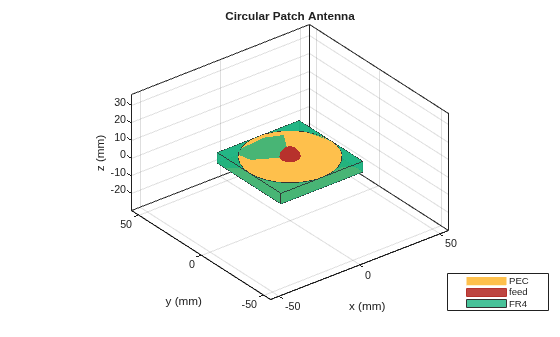

Figure contains an axes object. The axes object with title pcbStack antenna element contains 6 objects of type patch, surface. These objects represent PEC, feed, FR4.

Update the feed diameter.

p3.FeedDiameter = 0.005;

View the updated pcbStack object.

figure
show(p3)

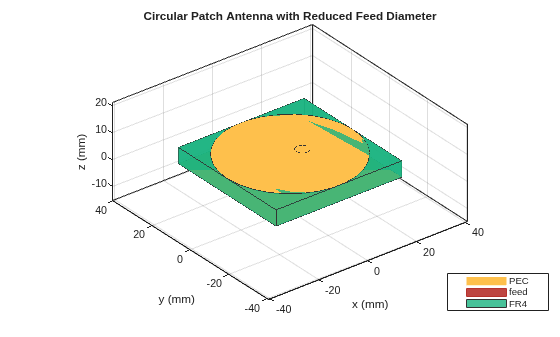

Figure contains an axes object. The axes object with title pcbStack antenna element contains 6 objects of type patch, surface. These objects represent PEC, feed, FR4.

Plot the current distribution on the antenna at 2.4 GHz.

figure
current(p3,2.4e9)

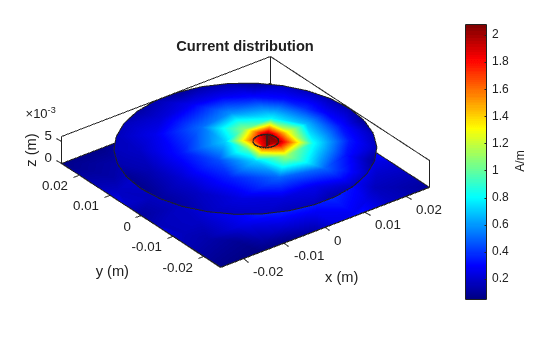

Figure contains an axes object. The axes object with title Current distribution contains 3 objects of type patch.

Create a PCBReader object.

B = PCBReader;

Import a two-layer design.

st = B.StackUp;
st.Layer2 = 'UWBVivaldi.gtl';
st.Layer4 = 'UWBVivaldi.gbl';
B.StackUp = st;

Extract shapes from the metal layers.

S = shapes(B);

View the top-layer Gerber file.

figure
show(S(1))

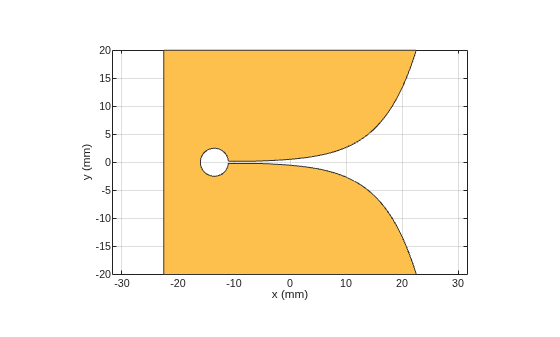

Figure contains an axes object. The axes object contains 2 objects of type patch. This object represents PEC.

View the bottom-layer Gerber file.

figure
show(S(2))

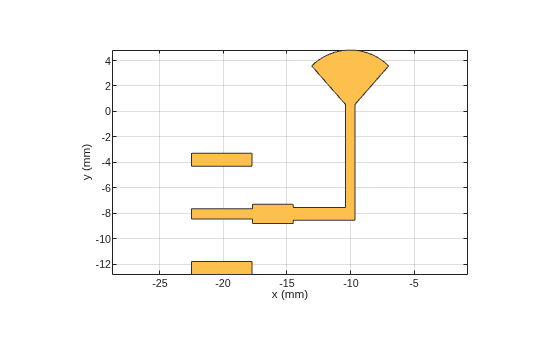

Figure contains an axes object. The axes object contains 2 objects of type patch. This object represents PEC.

Introduced in R2020b
