antenna.Rectangle

Create rectangle centered at origin on xy-plane

Description

Use the antenna.Rectangle object to create a rectangle centered at the origin and on the xy-plane. You can use antenna.Rectangle to create single-layer or multi-layered antennas using pcbStack.

Creation

Syntax

rect = antenna.Rectangle

rect = antenna.Rectangle(PropertyName=Value)

Description

rect = antenna.Rectangle creates a rectangle centered at the origin and on the xy-plane.

rect = antenna.Rectangle(PropertyName=Value) sets properties using one or more name–value arguments. PropertyName is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN. Properties that you do not specify, retain their default values.

For example, rec = antenna.Rectangle(Length=2) creates a rectangle with a 2 m length.

Properties

Name — Name of rectangle

"myrectangle" (default) | string

Name of rectangle, specified as a string.

Example: "Rect1"

Data Types: string

Center — Cartesian coordinates of center of rectangle

[0 0] (default) | 2-element vector

Cartesian coordinates of center of rectangle, specified as a 2-element vector in meters.

Example: [0.006 0.006]

Data Types: double

Length — Rectangle length

1 (default) | scalar

Rectangle length, specified as a scalar in meters.

Example: 2

Data Types: double

Width — Rectangle width

2 (default) | scalar

Rectangle width, specified as a scalar in meters.

Example: 4

Data Types: double

NumPoints — Number of discretization points per side

2 (default) | scalar

Number of discretization points per side, specified as a scalar.

Example: 16

Data Types: double

Object Functions

add	Perform Boolean unite operation on two shapes
subtract	Perform Boolean subtraction operation on two shapes
intersect	Generate and plot intersection of two shapes
plus	Join two shapes
minus	Carve a shape from other shape
and	Perform Boolean intersection operation on two shapes
area	Calculate area of 2-D shapes in square meters
show	Display antenna, array structures, shapes, or platform
plot	Plot boundary of 2-D shape
mesh	Generate and view mesh for antennas, arrays, and custom shapes
rotate	Rotate shape about axis by angle
rotateX	Rotate shape about x-axis by angle
rotateY	Rotate shape about y-axis by angle
rotateZ	Rotate shape about z-axis by angle
translate	Move shape to new location
scale	Change size of shape by fixed factor
mirrorX	Mirror shape along x-axis
mirrorY	Mirror shape along y-axis
removeHoles	Remove holes from shape
removeSlivers	Remove sliver outliers from shape boundary

Examples

Create Rectangle with Default Properties

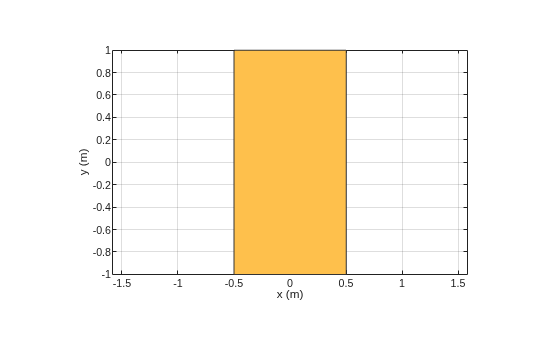

Create a rectangle shape using antenna.Rectangle and view it.

r1 = antenna.Rectangle

r1 =
  Rectangle with properties:

         Name: 'myrectangle'
       Center: [0 0]
       Length: 1
        Width: 2
    NumPoints: 2

show(r1)

Create and Rotate Rectangle Using Specified Properties

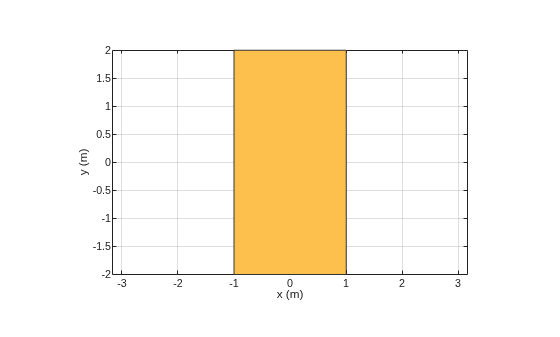

Create and view a rectangle with a length of 2 m and a width of 4 m.

r2 = antenna.Rectangle(Length=2,Width=4);
show(r2)
axis equal

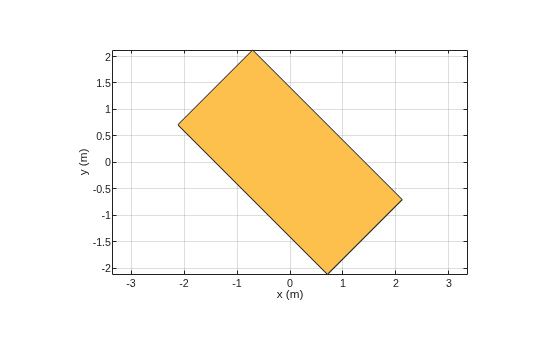

Rotate the rectangle.

rotateZ(r2,45);

show(r2)

Create Notched Rectangle

Create a rectangle with a length of 0.15 m, and a width of 0.15 m.

r  = antenna.Rectangle(Length=0.15,Width=0.15);

Create a second rectangle with a length of 0.05 m, and a width of 0.05 m. Set the center of the second rectangle at half the length of the first rectangle r.

n = antenna.Rectangle(Center=[0.075,0],Length=0.05,Width=0.05);

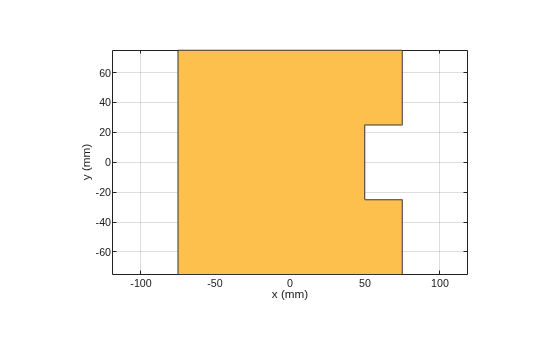

Create and view a notched rectangle by subtracting n from r.

rn  = r-n;
show(rn)

Calculate the area of the notched rectangle.

area(rn)

ans =
0.0212

Version History

Introduced in R2017a
