antenna.Circle

Create circle centered at origin on xy-plane

Description

Use the antenna.Circle object to create a circle centered at the origin and on the xy-plane. You can use antenna.Circle to create single-layer or multi-layered antennas using pcbStack.

Creation

Syntax

circle = antenna.Circle

circle = antenna.Circle(PropertyName=Value)

Description

circle = antenna.Circle creates a circle centered at the origin and on the xy-plane.

circle = antenna.Circle(PropertyName=Value) sets properties using one or more name–value arguments. PropertyName is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN. Properties that you do not specify, retain their default values.

For example, cir = antenna.Circle(Radius=2) creates a circle of 2 m radius.

Properties

Name — Name of circle

"mycircle" (default) | string

Name of circle, specified as a string.

Example: "Circle1"

Data Types: string

Center — Cartesian coordinates of circle center

[0 0] (default) | 2-element vector

Cartesian coordinates of circle center, specified as a 2-element vector in meters.

Example: [0.006 0.006]

Data Types: double

Radius — Circle radius

1 (default) | scalar

Circle radius, specified as a scalar in meters.

Example: 2

Data Types: double

NumPoints — Number of discretization points on circumference

30 (default) | scalar

Number of discretization points on circumference, specified as a scalar.

Example: 16

Data Types: double

Object Functions

add	Perform Boolean unite operation on two shapes
subtract	Perform Boolean subtraction operation on two shapes
intersect	Generate and plot intersection of two shapes
plus	Join two shapes
minus	Carve a shape from other shape
and	Perform Boolean intersection operation on two shapes
area	Calculate area of 2-D shapes in square meters
show	Display antenna, array structures, shapes, or platform
plot	Plot boundary of 2-D shape
mesh	Generate and view mesh for antennas, arrays, and custom shapes
rotate	Rotate shape about axis by angle
rotateX	Rotate shape about x-axis by angle
rotateY	Rotate shape about y-axis by angle
rotateZ	Rotate shape about z-axis by angle
translate	Move shape to new location
scale	Change size of shape by fixed factor
mirrorX	Mirror shape along x-axis
mirrorY	Mirror shape along y-axis
removeHoles	Remove holes from shape
removeSlivers	Remove sliver outliers from shape boundary

Examples

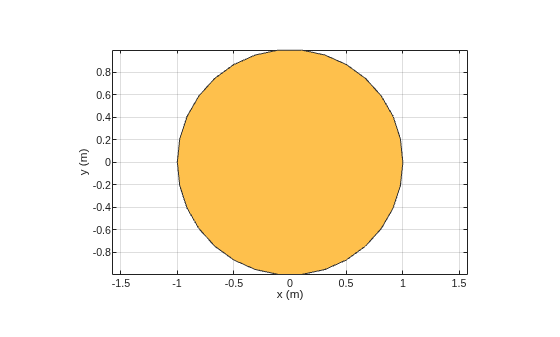

Create Circle with Default Properties

Create and view circle using antenna.Circle and view it.

c1 = antenna.Circle

c1 =
  Circle with properties:

         Name: 'mycircle'
       Center: [0 0]
       Radius: 1
    NumPoints: 30

show(c1)

Create Circle with Specified Properties

Create a circle centered at the origin with a radius of 4 m.

c2 = antenna.Circle(Radius=4)

c2 =
  Circle with properties:

         Name: 'mycircle'
       Center: [0 0]
       Radius: 4
    NumPoints: 30

Add Two Shapes

Create a circle with a radius of 1m. The center of the circle is at [1 0].

circle1 = antenna.Circle(Center=[1 0],Radius=1);

Create a rectangle with a length of 2m and a width of 4m centered at the origin.

rect1 = antenna.Rectangle(Length=2,Width=2);

Add the two shapes together using the + function.

polygon1 = circle1+rect1

polygon1 =
  Polygon with properties:

        Name: 'mypolygon'
    Vertices: [21×3 double]

show(polygon1)

Version History

Introduced in R2017a
