Shunt Active Filter with SRF algorithm

Version 1.0.1 (41.9 KB) by R SRIRANJANI RAMAKRISHNAN

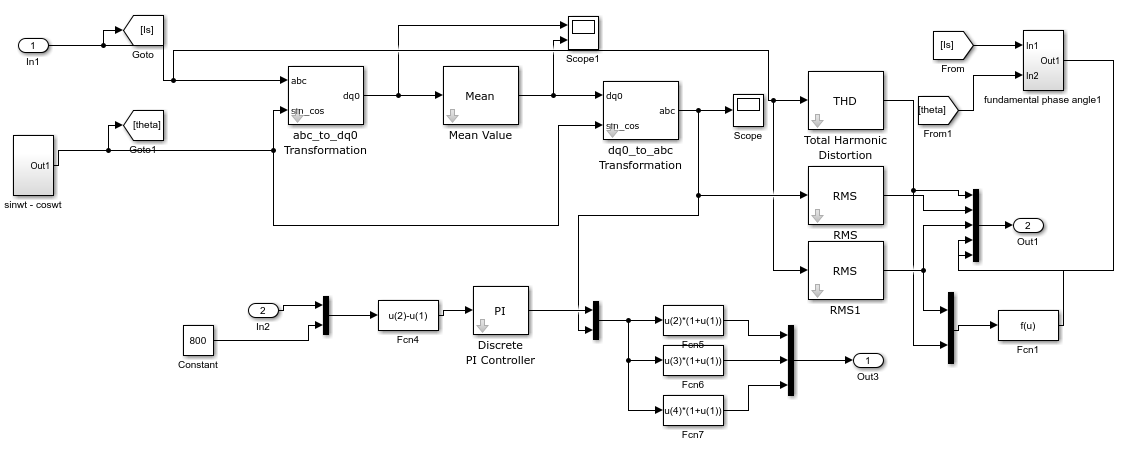

Simulation circuit of Shunt active filter mitigates harmonics and reactive power
5.0
(2)
868 Downloads
Updated 4 Mar 2021

View License

Nonlinear and linear load is connected to the three phase supply.
Supply current is non sinusoidal.
Shunt Active Filter is switched at 0.08sec. Now Supply current is sinusoidal and in phase with the supply voltage.
Power factor is near to unity and THD is reduced to 5%

Load parameter can be varied to study different types of load characteristics
