PV Emulator Basic Circuit Model

Version 1.0.0 (40.2 KB) by Rodney Tan
This model demonstrate the operating principle of a PV emulator using PV mathematical model
0.0
(0)
327 Downloads
Updated 3 Dec 2020

View License

Developed by Rodney Tan (PhD)
Version 1.0 (Dec 2020)

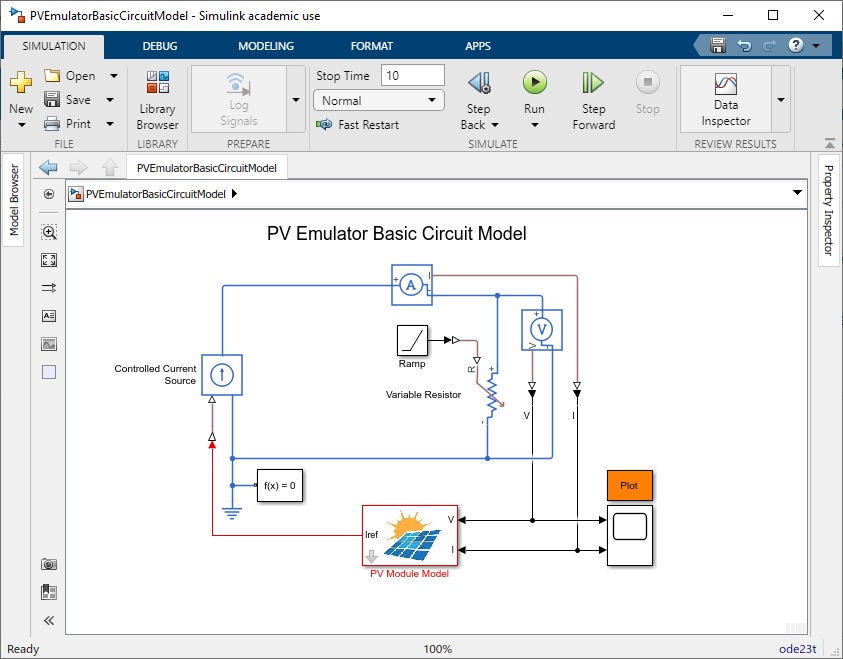

This model demonstrate the operating principle of a PV emulator using a controlled current source, variable load resistor and a PV mathematical model.

The PV Module Model allows the user to set the PV module parameters and solar irradiance to be emulated.

The scope monitor the PV emulator output voltage and current.
The plot button plot the PV characteristic curve of the emulated PV module.

Cite As

Rodney Tan (2024). PV Emulator Basic Circuit Model (https://www.mathworks.com/matlabcentral/fileexchange/83753-pv-emulator-basic-circuit-model), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2020a
Compatible with any release
Platform Compatibility
Windows macOS Linux
