NR Polar Decoder

Perform polar decoding according to the 5G NR standard

  • Library:
  • Wireless HDL Toolbox / Error Detection and Correction

Description

The NR Polar Decoder block implements a streaming polar decoder with hardware-friendly control signals. You can configure the block to use downlink or uplink coding schemes as defined by the 5G NR standard. The 5G NR standard uses polar codes for channel coding of the DCI, UCI, and BCH transmit channels.

This block implements a CRC-aided successive-cancellation list decoder. This implementation matches the performance of the 5G Toolbox™ function nrPolarDecode with a list length of two. This block also performs CRC decoding of the message, equivalent to the nrCRCDecode function. The block detects DCI messages from the values of K and E, and automatically prepends 1s to the message, equivalent to the padCRC input argument of the nrPolarDecode function.

This block does not support parity-aided codes.

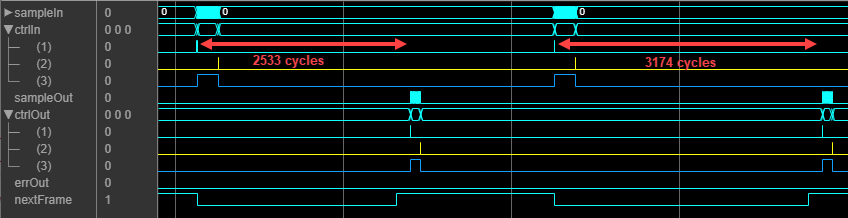

Because the latency of this operation can vary, the block provides an output signal, nextFrame, that indicates when the block is ready to accept new inputs.

Ports

Input

expand all

Input sample, specified as a scalar log-likelihood ratio (LLR). The block supports builtin types, and signed fixed-point values with a wordlength of 4 to 16 bits.

double and single data types are supported for simulation, but not for HDL code generation.

Data Types: fixed point | int8 | int16 | double | single

Control signals accompanying the sample stream, specified as a samplecontrol bus. The bus includes the start, end, and valid control signals, which indicate the boundaries of the frame and the validity of the samples.

  • start — Indicates the start of the input frame

  • end — Indicates the end of the input frame

  • valid — Indicates that the data on the input data port is valid

Data Types: bus

Length of information block in bits, specified as a positive integer. For downlink messages, K must be in the range 36 to 164. For uplink messages, K must be in the range 31 to 1023.

K values from 18 to 25 are not supported because the 5G NR standard requires parity-aided codes for those sizes.

Dependencies

To enable this port, set the Configuration source parameter to Input port.

Data Types: fixdt(0,10,0)

Rate-matched output length in bits, specified as a scalar positive integer. Specify a value for E that is greater than K and less than or equal to 8192.

Dependencies

To enable this port, set the Configuration source parameter to Input port.

Data Types: fixdt(0,14,0)

Output

expand all

Decoded data bit, returned as a scalar. The output message length is A bits, where A = KCRCLen. For downlink messages, CRCLen is 24. For uplink messages, CRCLen is 11, as defined by the 5G NR standard.

Data Types: fixdt(0,1,0) | Boolean | double | single
Complex Number Support: Yes

Control signals accompanying the sample stream, returned as a samplecontrol bus. The bus includes the start, end, and valid control signals, which indicate the boundaries of the frame and the validity of the samples.

  • start — Indicates the start of the output frame

  • end — Indicates the end of the output frame

  • valid — Indicates that the data on the output data port is valid

Data Types: bus

CRC result, returned as a scalar. If you clear the Full checksum mismatch parameter, this value is a Boolean. When you select the Full checksum mismatch parameter, this value is a ufix24 scalar for downlink messages and a ufix11 scalar for uplink messages.

Data Types: Boolean | ufix11 | ufix24

The block sets this signal to 1 when the block is ready to accept the start of the next frame. If the block receives an input start signal while nextFrame is 0, the block discards the frame in progress and begins processing the new data.

For more information, see Using the nextFrame Output Signal.

Data Types: Boolean

Parameters

expand all

Direction of 5G NR link, specified as Downlink or Uplink. When you choose Downlink, the block performs deinterleaving, as specified in the 5G NR standard. When you select Uplink, the block omits the deinterleaving logic.

Select Input port to enable the K and E ports. Select Property to use the K and E parameters.

For downlink messages, K must be in the range 36 to 164. For uplink messages, K must be in the range 31 to 1023.

K values from 18 to 25 are not supported because the 5G NR standard requires parity-aided codes for those sizes.

Dependencies

To enable this parameter, set the Configuration source parameter to Property.

Specify a value for E that is greater than K and less than or equal to 8192.

Dependencies

To enable this parameter, set the Configuration source parameter to Property.

When you clear this parameter, the block returns a Boolean scalar on the err port that indicates whether the CRC was successful. When you select this parameter, the block returns the full CRC checksum on the err port. If your design decodes DCI messages and makes use of the RNTI remainder, select this parameter.

The 5G Toolbox nrPolarDecode function returns a decoded message that includes the CRC bits. This block returns the decoded message without the CRC bits, and returns the CRC status separately on the err port. This behavior is equivalent to calling the nrCRCDecode function after using the nrPolarDecode function. Not recomputing the CRC bits saves hardware latency and resources.

Algorithms

expand all

This block implements a CRC-aided successive-cancellation list decoder that uses a list length of two. The decoder iterates over all LLRs in the tree to reach a decision for a bit and then uses that decision to decode the next bit. The deinterleaving step is included only when you set the Link direction parameter to Downlink.

This diagram shows the architecture of the polar decoder.

The Configuration stage is used when the K and E input port values change. The block computes the locations of the information bits and passes them to the Decision stage. Because the mapping patterns are computed as needed, rather than stored in hardware, the block supports all K and E values within the supported range. The Configuration stage also computes the interleave pattern when you set the Link direction parameter to Downlink.

When you set the Configuration source parameter to Property, the K and E parameter values are constants, so the decoder does not implement the Configuration stage. In this case, the block includes static lookup tables that contain the precomputed configuration.

To minimize computations for each decode, the Tree Memory stores the probability of each node being a one or a zero. Each iteration updates only the LLRs that have changed. The Core decoding stage uses the LLR update equations from [3].

The Decision stage checks the LLR value against the expected locations of information bits and frozen bits and returns a hard decision to the Tree Memory. If the bit is expected to be frozen, the Decision stage returns a hard decision of zero and updates the probabilities of related paths. The Path Memory reconstructs the two most likely paths from the hard decision results and passes the paths and scores to the next stage. The Path Selection stage computes the CRC for both paths and then chooses the path that passes the CRC. If both CRCs fail, the block returns the path that has the higher score.

This implementation matches the performance of the 5G Toolbox function nrPolarDecode with a list length of two. Because the block uses fixed-point internal types, any differences are a result of quantization. This plot shows the block performance when using 6-bit LLR inputs.

A plot showing that the error rate performance of the NR Polar Decoder block is very similar to the nrPolarDecode function.

References

[1] 3GPP TS 38.211. "NR; Physical channels and modulation." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network. URL: https://www.3gpp.org.

[2] Arikan, Erdal. "Channel Polarization: A Method for Constructing Capacity-Achieving Codes for Symmetric Binary-Input Memoryless Channels." IEEE Transactions on Information Theory 55, no. 7 (July 2009): 3051–73. https://doi.org/10.1109/TIT.2009.2021379.

[3] Balatsoukas-Stimming, Alexios, Mani Bastani Parizi, and Andreas Burg. "LLR-Based Successive Cancellation List Decoding of Polar Codes." IEEE Transactions on Signal Processing 63, no. 19 (October 2015): 5165–79. https://doi.org/10.1109/TSP.2015.2439211.

Extended Capabilities

Introduced in R2020a
