# APP Decoder

Decode convolutionally-coded LLR values using MAP algorithm

• Library:
• Wireless HDL Toolbox / Error Detection and Correction

## Description

The APP Decoder block decodes convolutionally-coded log-likelihood ratio (LLR) values using the maximum a-posteriori probability (MAP) decoding algorithm. The block accepts coded and uncoded LLR values and a `samplecontrol` bus, decodes the coded LLR values, and outputs the updated versions of the coded and uncoded LLR values and `samplecontrol` bus.

The block supports two decoding algorithms: `Max Log MAP (max)` and `Log MAP (max*)`. You can select the algorithm by setting the Algorithm parameter. The block supports terminated and truncated modes and these decoding rates: 1/2, 1/3, 1/4, 1/5, 1/6, and 1/7. The block provides an architecture suitable for HDL code generation and hardware deployment.

The block supports decoding of serial and parallel concatenated codes. Using this block, you can build turbo decoders, custom decoders for concatenated codes, and product codes for iterative decoding.

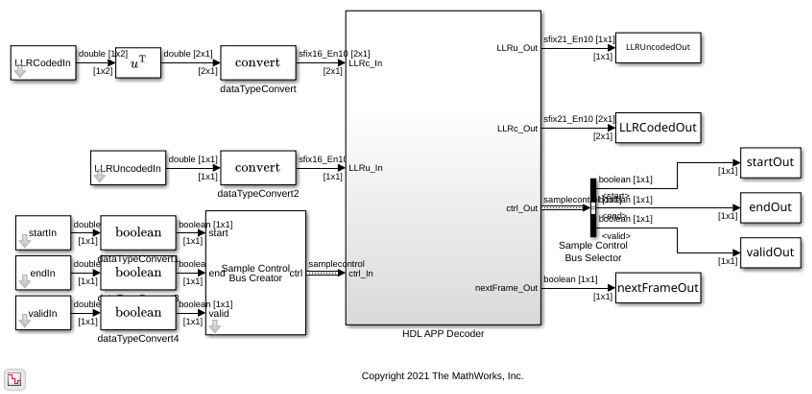

## Ports

### Input

expand all

Coded LLR values, specified as a real-valued column vector of size N-by-1, where N is the decoding rate in the range from 2 to 7.

The input vector size depends on the code rate of the block. The block derives the code rate from the code generator polynomial value specified in the block mask. The block supports these code rates: 1/2, 1/3, 1/4, 1/5, 1/6 or 1/7.

`double` and `single` data types are supported for simulation, but not for HDL code generation. For HDL code generation, the block supports `fixdt(1,WL,FL)` data type and the input word length (WL) must be in the range from 4 to 16.

Data Types: `single` | `double` | `int8` | `int16` | `signed fixed point`

Uncoded LLR values, specified as a real-valued scalar.

`double` and `single` data types are supported for simulation, but not for HDL code generation. For HDL code generation, the block supports `fixdt(1,WL,FL)` data type and the input word length (WL) must be in the range from 4 to 16.

Data Types: `single` | `double` | `int8` | `int16` | `signed fixed point`

Control signals accompanying the sample stream, specified as a `samplecontrol` bus. The bus includes the `start`, `end`, and `valid` control signals, which indicate the boundaries of the frame and the validity of the samples.

• `start` — Indicates the start of the input frame

• `end` — Indicates the end of the input frame

• `valid` — Indicates that the data on the input data port is valid

For more details, see Sample Control Bus.

Data Types: `bus`

### Output

expand all

Uncoded LLR values, returned as a real-valued scalar. The output data type is the same as the input data type.

For inputs of `fixed point` data type, the output word length increases by `floor`(log2(N)) + `floor`(log2(K – 1)) + 2 bits. N is the code rate, and K is the constraint length of the block.

Data Types: `single` | `double` | `int8` | `int16` | `fixed point`

Coded LLR values, returned as a real-valued column vector of size N-by-1. The output data type is the same as the input data type.

For `fixed point` inputs, the output word length increases by `floor`(log2(N)) + `floor`(log2(K – 1)) + 2 bits, where N is the code rate and K is the constraint length of the block.

Data Types: `single` | `double` | `int8` | `int16` | `fixed point`

Control signals accompanying the sample stream, returned as a `samplecontrol` bus. The bus includes the `start`, `end`, and `valid` control signals, which indicate the boundaries of the frame and the validity of the samples.

• `start` — Indicates the start of the output frame

• `end` — Indicates the end of the output frame

• `valid` — Indicates that the data on the output data port is valid

For more details, see Sample Control Bus.

Data Types: `bus`

Block ready indicator, returned as a Boolean scalar.

The block sets this signal to `1` (`true`) when the block is ready to accept the start of the next frame. If the block receives an input ctrl.start signal while nextFrame is `0` (`false`), the block discards the frame in progress and begins processing the new data.

Data Types: `Boolean`

## Parameters

expand all

Specify a 1-by-n vector of octal values, where n is the length of the polynomial. The block accepts polynomials from 2 to 7 elements long.

The block derives the constraint length and code rate based on the specified code generator polynomial. Specify the code generator polynomial in such a way that the constraint length is in the range from 3 to 9 and the code rates are 1/2, 1/3, 1/4, 1/5, 1/6, or 1/7.

For more information on how to specify a code generator polynomial for decoding blocks, see Trellis Description of a Convolutional Code.

Select the termination method to specify the end of the frame behavior.

• `Truncated` — The block resets the state metrics after each frame, starts at the all-zeros state, and ends with the non-all-zeros state. The input ctrl bus qualifies the input samples and marks the frame boundaries.

• `Terminated` — The block resets the state metrics after each frame and starts and ends in the all-zeros state. The input ctrl bus qualifies the input samples and marks the frame boundaries.

Select the type of decoding algorithm.

• `Max Log MAP (max)` — Max log MAP approximation

• `Log MAP (max*)` — Log MAP approximation

Window on which the MAP algorithm is to be performed, specified as an integer in the range from 3 to 128. This integer represents the window length.

For better block performance results, the recommended window length is at least five times the constraint length.

Select this parameter to disable the output port LLRc from the block. Clear this parameter to enable the output port LLRc on the block.

## Algorithms

expand all

To perform MAP decoding, the block uses the Bahl, Cocke, Jalinek, and Raviv (BCJR) algorithm. The block implements MAP decoding using the log MAP approximation or max log MAP approximation algorithm. You can select the algorithm using the Algorithm parameter. These algorithms implement a-posteriori probability (APP) decoding. The max log MAP approximation option uses max(ai) as the approximation, while the log MAP approximation option uses max(ai) plus a correction term given by $\mathrm{ln}\left(1+\mathrm{exp}\left(-|{a}_{i-1}-{a}_{i}|\right)\right)$ [1].

## References

[1] Viterbi, A.J. “An Intuitive Justification and a Simplified Implementation of the MAP Decoder for Convolutional Codes.” IEEE Journal on Selected Areas in Communications 16, no. 2 (February 1998): 260–64. https://doi.org/10.1109/49.661114.

[2] Benedetto, S., D. Divsalar, G. Montorsi, and F. Pollara. “A Soft-Input Soft-Output APP Module for Iterative Decoding of Concatenated Codes.” IEEE Communications Letters 1, no. 1 (January 1997): 22–24. https://doi.org/10.1109/4234.552145.

[3] Benedetto, S., and G. Montorsi. “Performance of Continuous and Blockwise Decoded Turbo Codes.” IEEE Communications Letters 1, no. 3 (May 1997): 77–79. https://doi.org/10.1109/4234.585802.

## Version History

Introduced in R2021b
