sheart2
Shearlet transform
Syntax
Description
returns the shearlet transform or shearlet analysis of the real-valued 2-D image
coefs
= sheart2(sls
,im
)im
for the shearlet system sls
. If the shearlet
system is real-valued with periodic boundary conditions, then coefs
is
real-valued. Otherwise, coefs
is complex-valued. The size and class
(data type) of im
must match the ImageSize and
Precision
values, respectively, of sls
.
Examples
Shearlet Transform of Circle
This example shows how to take the shearlet transform of an image and reconstruct the image using only coefficients corresponding to zero shearing.

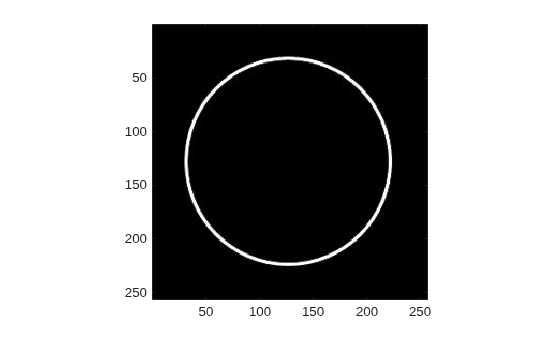

Load and display an image of a circle.
load circleGS imagesc(circleGS) colormap gray axis equal axis tight
Create a shearlet system that can be used with the image. Obtain the shearlet filters defined by the system, as well as their geometric interpretations.
[numRows,numCols] = size(circleGS); sls = shearletSystem('ImageSize',[numRows numCols], ... 'FilterBoundary','truncated'); [psi,scale,shear,cone] = filterbank(sls);
Obtain the shearlet transform of the image.
cfs = sheart2(sls,circleGS);
Find the indices of the shearlet filters that correspond to zero shearing. Keep in mind that the lowpass filter also corresponds to zero shearing.
ind = find((shear==0).*(scale~=-1))'
ind = 1×10
3 6 10 15 20 25 31 38 46 55

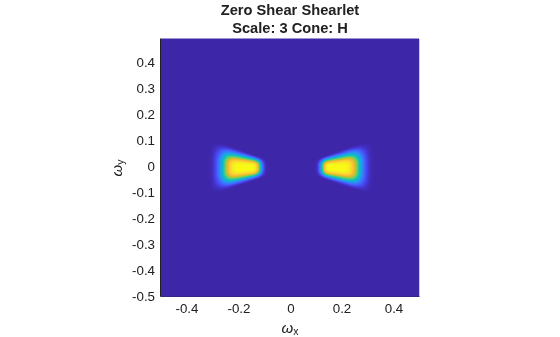

Plot one of the shearlets in the frequency plane. Because the shearlet corresponds to zero shearing, confirm the frequency response is concentrated along either the horizontal or vertical axis.
sh = 31; omegax = -1/2:1/numCols:1/2-1/numCols; omegay = omegax; figure surf(omegax,flip(omegay),psi(:,:,sh),'EdgeColor','none') view(0,90) xlabel('\omega_x') ylabel('\omega_y') axis equal axis tight title({"Zero Shear Shearlet", ... "Scale: "+num2str(scale(sh))+" Cone: "+cone{sh}})
Create an array that only contains the shearlet coefficients that correspond to the zero shearing filters.
cfsx = zeros(size(cfs)); for k=1:length(ind) cfsx(:,:,ind(k)) = cfs(:,:,ind(k)); end

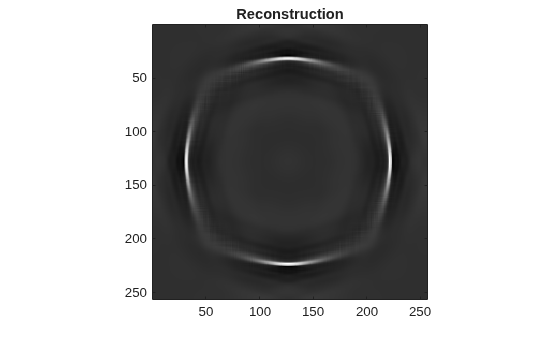

Reconstruct the image using the new coefficients array. Because the only nonzero shearlet coefficients are those that correspond to zero shearing, the horizontal and vertical portions of the circle are emphasized in the reconstruction.
rec = isheart2(sls,cfsx); imagesc(rec) axis equal axis tight colormap gray title('Reconstruction')
Input Arguments
sls
— Shearlet system
shearletSystem
object
Shearlet system, specified as a shearletSystem
object.
Output Arguments
coefs
— Shearlet coefficients
3-D array
Shearlet coefficients, returned as a 3-D array. The size of
coefs
is
M-by-N-by-K, where
M and N are the row and column dimensions of the
input image, respectively. The size of the third dimension, K, equals
the number of shearlets in sls
, including the lowpass filter,
K = numshears(sls)
+ 1.
For example, if cfs = sheart2(sls,im)
and psi =
filterbank(sls)
, then the shearlet corresponding to
cfs(:,:,k)
is
psi(:,:,k)
. The data type of
coefs
matches the Precision
value of the shearlet system.
Data Types: single
| double
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2019b
