nodedesc

Node descendants

Syntax

D = nodedesc(T,n)

D = nodedesc(T,n,"deppos")

Description

nodedesc is a tree-management utility.

D = nodedesc(T,n) returns the indices of all the descendants of the node n in the tree T.

D = nodedesc(T,n,"deppos") returns the depths and positions of all the descendants of the node n in the tree T.

Examples

Node Descendants

Create a binary tree of depth 3.

t = ntree(2,3);

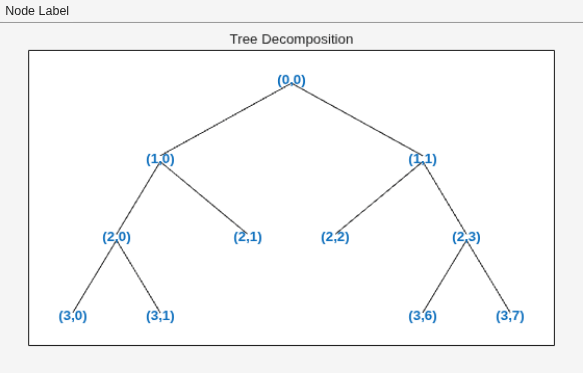

Recompose two of the nodes. Plot the tree.

t = nodejoin(t,5);
t = nodejoin(t,4);
fig = plot(t);

Programmatically, in Node Label, change the selected item from Depth_Position to Index.

plot(t,"setNodeLabel",fig,"Index")

Obtain the indices of the descendants of the node whose index is 2.

nodedesc(t,2)

ans = 5×1

     2
     5
     6
    13
    14

Obtain the depths and positions of the descendants of the same node.

nodedesc(t,2,"deppos")

ans = 5×2

     1     1
     2     2
     2     3
     3     6
     3     7

Obtain the depths and positions of the descendants of the node at depth-position (1,0).

nodedesc(t,[1 0],"deppos")

ans = 5×2

     1     0
     2     0
     2     1
     3     0
     3     1

Obtain the indices of the descendants of the same node.

nodedesc(t,[1 0])

ans = 5×1

     1
     3
     4
     7
     8

Input Arguments

T — Tree

dtree object | ntree object | wptree object

Tree, specified as a dtree, ntree, or wptree object.

n — Tree node

integer | 1-by-2 vector

Tree node, specified as a nonnegative integer or a 1-by-2 vector. You can specify the node by either its index or depth and position.

Data Types: double

Output Arguments

D — Descendants

vector | matrix

Descendants of the node n, returned as a column vector of node indices or a two-column matrix containing the depths and positions of the descendants.

• If D is a vector, then D(1) is the index of the node n

• If D is a matrix, the ith row of D contains the depth and position of the ith descendant. The first row of D is the depth and position of the node n.

Version History

Introduced before R2006a
