lwtcoef2
Description
returns the level 1 reconstructed approximation coefficients that correspond to the
approximation coefficients y
= lwtcoef2(ll
,lh
,hl
,hh
)ll
and the horizontal
(lh
), vertical (hl
), and diagonal
(hh
) wavelet coefficients. The coefficients in
ll
, lh
, hl
, and
hh
are the outputs of lwt2
using default values.
Examples
Reconstruct Image from Orthogonal Projections

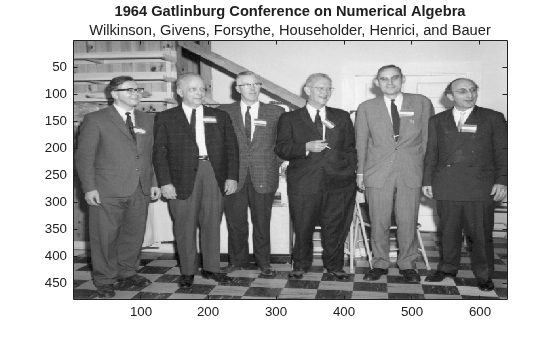

Load and plot a grayscale image.
load gatlin figure image(X) colormap(map) title("1964 Gatlinburg Conference on Numerical Algebra",... "Wilkinson, Givens, Forsythe, Householder, Henrici, and Bauer")
Create a lifting scheme associated with the bior3.7
wavelet. Use the lifting scheme to obtain the wavelet decomposition of the image to the maximum level.
lscheme = liftingScheme(Wavelet="bior3.7");
[ll,lh,hl,hh] = lwt2(X,LiftingScheme=lscheme);

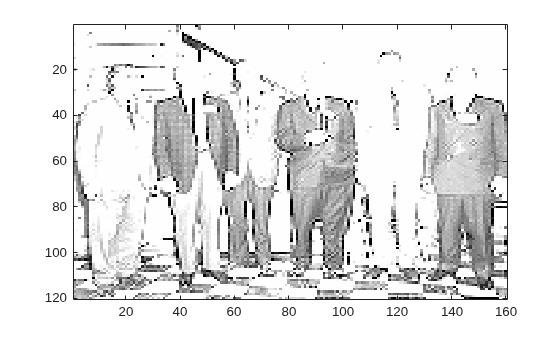

Extract and display the approximation coefficients at level 2. Confirm the row and column dimensions are one-quarter the size of those of the original image.
approxCF = lwtcoef2(ll,lh,hl,hh,... LiftingScheme=lscheme,OutputType="coefficients",Level=2); figure image(approxCF) colormap(map)
size(X)./size(approxCF)
ans = 1×2
4 4

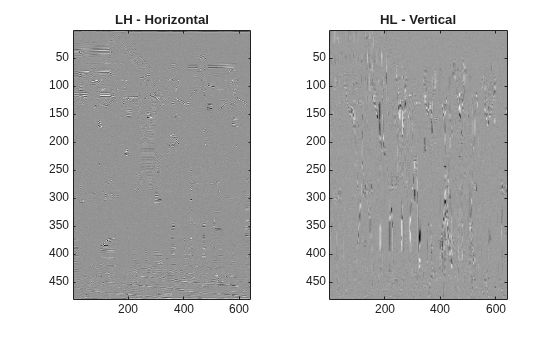

Obtain the orthogonal projection of the level 1 approximation coefficients. Also obtain the orthogonal projections of the detail coefficients at level 1. Display the projections corresponding to the LH
and HL
detail coefficients. Observe that the prominent features in the LH
- and HL
-derived images correspond to the horizontal, and vertical features, respectively, of the original image.
approx = lwtcoef2(ll,lh,hl,hh,... LiftingScheme=lscheme,OutputType="projection",Level=1); dLH = lwtcoef2(ll,lh,hl,hh,... LiftingScheme=lscheme,OutputType="projection",Level=1,Type="LH"); dHL = lwtcoef2(ll,lh,hl,hh,... LiftingScheme=lscheme,OutputType="projection",Level=1,Type="HL"); dHH = lwtcoef2(ll,lh,hl,hh,... LiftingScheme=lscheme,OutputType="projection",Level=1,Type="HH"); subplot(1,2,1) imagesc(dLH) title("LH - Horizontal") subplot(1,2,2) imagesc(dHL) title("HL - Vertical")
Confirm the sum of the four projections equals the original image.
max(max(abs(X-(approx+dLH+dHL+dHH))))
ans = 2.3448e-13
Input Arguments
ll
— Approximation coefficients
scalar | vector | matrix
Approximation coefficients at the coarsest scale, specified as a scalar,
vector, or matrix. The coefficients are the output of lwt2
.
Data Types: single
| double
Complex Number Support: Yes
lh
— Horizontal detail coefficients
cell array
Horizontal detail coefficients by level, specified as a
LEV-by-1 cell array, where LEV is
the level of the decomposition. The elements of lh
are
in order of decreasing resolution. The coefficients are the output of
lwt2
.
Data Types: single
| double
Complex Number Support: Yes
hl
— Vertical detail coefficients
cell array
Vertical detail coefficients by level, specified as a
LEV-by-1 cell array, where LEV is
the level of the decomposition. The elements of hl
are
in order of decreasing resolution. The coefficients are the output of
lwt2
.
Data Types: single
| double
Complex Number Support: Yes
hh
— Diagonal detail coefficients
cell array
Diagonal detail coefficients by level, specified as a
LEV-by-1 cell array, where LEV is
the level of the decomposition. The elements of hh
are
in order of decreasing resolution. The coefficients are the output of
lwt2
.
Data Types: single
| double
Complex Number Support: Yes
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: y =
lwtcoef2(ll,lh,hl,hh,OutputType="projection",LiftingScheme=lscheme)
Wavelet
— Wavelet
"db1"
(default) | character vector | string scalar
Orthogonal or biorthogonal wavelet, specified as a character vector or
string scalar. See the Wavelet property of liftingScheme
for
the list of supported wavelets. The specified wavelet must match the
value that you used to obtain the coefficients ll
,
lh
, hl
, and
hh
.
You cannot specify Wavelet
and
LiftingScheme
at the same time.
Example: y = lwtcoef2(ll,lh,hl,hh,Wavelet="bior3.5")
uses the bior3.5
biorthogonal wavelet.
Data Types: char
| string
LiftingScheme
— Lifting scheme
liftingScheme
object
Lifting scheme, specified as a liftingScheme
object. The specified lifting scheme must be
the same lifting scheme that you used to obtain the coefficients
ll
, lh
,
hl
, and hh
.
You cannot specify LiftingScheme
and
Wavelet
at the same time.
Example: y =
lwtcoef2(ll,lh,hl,hh,LiftingScheme=lScheme)
uses the
lScheme
lifting scheme.
OutputType
— Output type
"coefficients"
(default) | "projection"
Output type, specified as one of these:
"coefficients"
— Extract the approximation or details coefficients"projection"
— Return the projection (reconstruction) of the approximation or details coefficients
Example: y =
lwtcoef2(ll,lh,hl,hh,OutputType="projection",Type="detail")
returns the projection corresponding to the detail coefficients at the
finest scale.
Type
— Type of coefficients
"ll"
(default) | "lh"
| "hl"
| "hh"
Type of coefficients to extract or reconstruct, specified as one of these:
"ll"
— Approximation coefficients"lh"
— Horizontal coefficients"hl"
— Vertical coefficients"hh"
— Diagonal coefficients
Example: y = lwtcoef2(ll,lh,hl,hh,Type="hh")
extracts the diagonal coefficients at the finest scale.
Level
— Level
1
(default) | positive integer
Level of coefficients to extract or reconstruct, specified as a
positive integer less than or equal to
length(
.hh
)
Example: y =
lwtcoef2(ll,lh,hl,hh,LiftingScheme=lsc,Level=3)
uses the
lifting scheme lsc
to extract the approximation
coefficients at level 3.
Data Types: double
Extension
— Extension mode
"periodic"
(default) | "zeropad"
| "symmetric"
Extension mode to use to extract or reconstruct the coefficients, specified as one of these:
"periodic"
— Periodized extension"zeropad"
— Zero extension"symmetric"
— Symmetric extension
This argument specifies how to extend the signal at the
boundaries. The extension mode must match the value you used to generate
ll
, lh
,
hl
, and hh
.
Example: y =
lwtcoef2(ll,lh,hl,hh,Extension="zeropad")
specifies zero
extension.
Int2Int
— Handling integer-valued data
false
or
0
(default) | true
or 1
Output Arguments
y
— Extracted coefficients or projection
matrix
Extracted coefficients or projection, returns as a matrix.
y
has the same dimensionality as the input used by
the lwt2
function to
generate the approximation and details coefficients.
Data Types: single
| double
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2021bR2021b: lwtcoef2
input syntax has changed
The lwtcoef2
input syntax has changed. Use name-value
arguments instead.
Functionality | Result | Use Instead | Compatibility Considerations |
---|---|---|---|
Y =
lwtcoef2(TYPE,XDEC,LS,LEVEL,LEVEXT) | Errors |
| According to the value of
|
See Also
lwt2
| ilwt2
| liftingScheme
