# haart2

2-D Haar wavelet transform

## Syntax

``````[a,h,v,d] = haart2(x)``````
``````[a,h,v,d] = haart2(x,level)``````
``````[a,h,v,d] = haart2(___,integerflag)``````

## Description

example

``````[a,h,v,d] = haart2(x)``` performs the 2-D Haar discrete wavelet transform (DWT) of the matrix, `x`. `x` is a 2-D, 3-D, or 4-D matrix with even length row and column dimensions. If `x` is 4-D, the dimensions are Spatial-by-Spatial-by-Channel-by-Batch. The Haar transform is always computed along the row and column dimensions of the input. If the row and column dimensions of `x` are powers of two, the Haar transform is obtained down to level `log2(min(size(x,[1 2])))`. If the row or column dimension of `x` is even, but not a power of two, the Haar transform is obtained down to level ```floor(log2(min(size(x,[1 2])/2)))```. `haart2` returns the approximation coefficients, `a`, at the coarsest level. `haart2` also returns cell arrays of matrices containing the horizontal, vertical, and diagonal detail coefficients by level. If the 2-D Haar transform is computed only at one level coarser in resolution, then `h`, `v`, and `d` are matrices. The default `level` depends on the number of rows of `x`.```

example

``````[a,h,v,d] = haart2(x,level)``` performs the 2-D Haar transform down to the specified level. ```

example

``````[a,h,v,d] = haart2(___,integerflag)``` specifies how the 2-D Haar transform handles integer-valued data, using any of the previous syntaxes.```

## Examples

collapse all

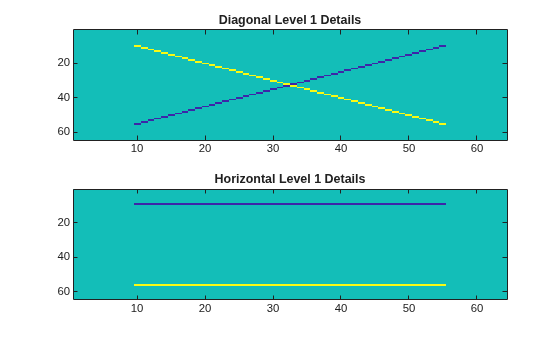

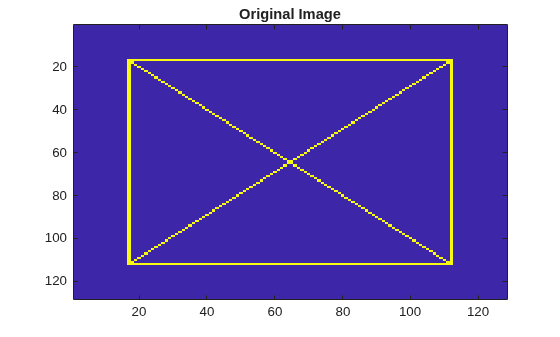

Obtain the 2-D Haar transform of 2-D data and plot its diagonal and horizontal level 1 details.

```load xbox; [a,h,v,d] = haart2(xbox); imagesc(xbox) title('Original Image')``` ```figure subplot(2,1,1) imagesc(d{1}) title('Diagonal Level 1 Details') subplot(2,1,2) imagesc(h{1}) title('Horizontal Level 1 Details')``` Show the effect of limiting the maximum level of the 2-D Haar transform on an image.

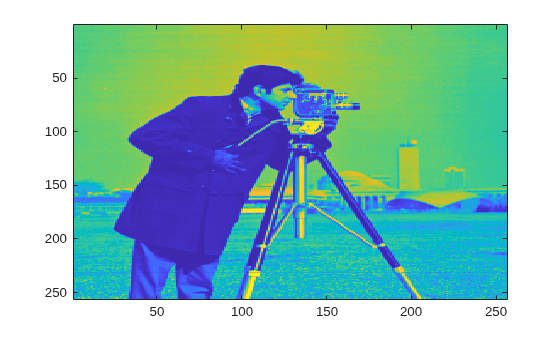

Load and display the image of a cameraman.

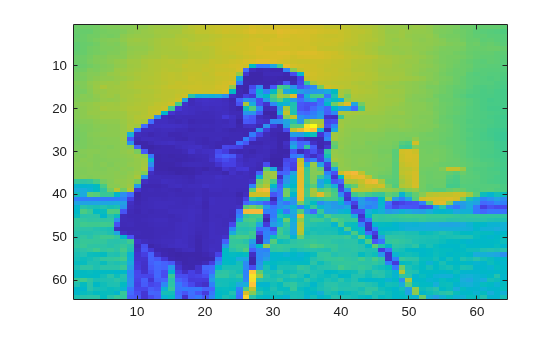

```im = imread('cameraman.tif'); imagesc(im)``` Obtain the 2-D Haar transform to level 2 and view the level 2 approximation.

```[a2,h2,v2,d2] = haart2(im,2); imagesc(a2)``` Compare 2-D Haar transform results using the default `'noninteger'` flag and the `'integer'` flag. The cameraman image is `uint8` data, so its maximum value is 255.

Obtain the default Haar transform. The approximation detail coefficient is outside the range 0 to 255.

```im = imread('cameraman.tif'); [a,h,v,d] = haart2(im); a```
```a = 3.0393e+04 ```

Obtain the Haar transform, limiting it to integer values. The approximation detail is an integer and is within the range of the original image data.

```[a,h,v,d] = haart2(im,'integer'); a```
```a = 119 ```

## Input Arguments

collapse all

Input signal, specified as a 2-D, 3-D, or 4-D real-valued matrix. If `x` is 4-D, the dimensions are Spatial-by-Spatial-by-Channel-by-Batch. The row and column sizes of `x` must be even length.

Data Types: `single` | `double`

Maximum level to which to perform the 2-D Haar transform, specified as a positive integer. The default value depends on the length of the input signal, `x`.

• If both the row and column sizes of `x` are powers of two, the 2-D Haar transform is obtained down to `level` `log2(min(size(x,[1 2])))`.

• If both the row and column sizes of `x` are even, but at least one is not a power of two, `level` is equal to `floor(log2(min(size(x,[1 2])/2)))`.

If `level` is greater than 1, then `h`, `v`, and `d` are cell arrays. If `level` is equal to 1, then `h`, `v`, and `d` are matrices.

Integer-valued data handling, specified as either `'noninteger'` or `'integer'`. `'noninteger'` does not preserve integer-valued data in the 2-D Haar transform, and `'integer'` preserves it. The `'integer'` option applies only if all elements of the input, `x`, are integers. For integer-valued input, `haart2` returns integer-valued wavelet coefficients. For both `'noninteger'` and `'integer'`, however, the 2-D Haar transform algorithm uses floating-point arithmetic. If `x` is a single-precision input, the numeric type of the Haar transform coefficients is single precision. For all other numeric types, the numeric type of the coefficients is double precision.

## Output Arguments

collapse all

Approximation coefficients at the coarsest scale, returned as a scalar or matrix of coefficients, depending on the level to which the transform is calculated. Approximation, or scaling, coefficients are a lowpass representation of the input. At each level, the approximation coefficients are divided into coarser approximation and detail coefficients.

Data Types: `single` | `double`

Horizontal detail coefficients by level, returned as a matrix or cell array of matrices. If `level` is greater than 1, `h` is a cell array. If `level` is equal to 1, the 2-D Haar transform is computed at only one level coarser in resolution and `h` is a matrix.

Note: Generated C and C++ code always returns the horizontal detail coefficients `h` in a cell array.

Data Types: `single` | `double`

Vertical detail coefficients by level, returned as a matrix or cell array of matrices. If `level` is greater than 1, `v` is a cell array. If `level` is equal to 1, the 2-D Haar transform is computed at only one level coarser in resolution and `v` is a matrix.

Note: Generated C and C++ code always returns the vertical detail coefficients `v` in a cell array.

Data Types: `single` | `double`

Diagonal detail coefficients by level, returned as a matrix or cell array of matrices. If `level` is greater than 1, `d` is a cell array. If `level` is equal to 1, the 2-D Haar transform is computed at only one level coarser in resolution and `d` is a matrix.

Note: Generated C and C++ code always returns the diagonal detail coefficients `d` in a cell array.

Data Types: `single` | `double`

## Extended Capabilities

### GPU ArraysAccelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
