plot
Plot MSER regions
Description
Examples
Plot MSER Regions

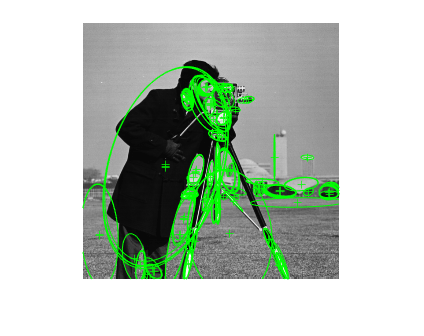

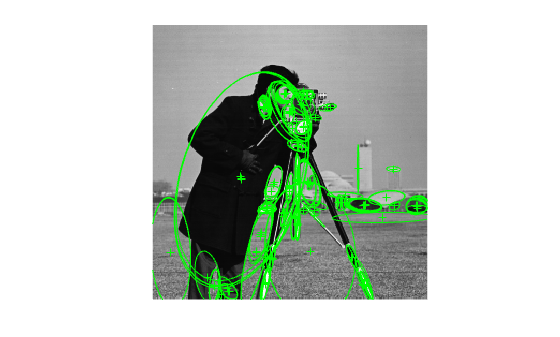

Extract MSER features and plot the regions.
Read image and extract MSER features.
I = imread('cameraman.tif'); regions = detectMSERFeatures(I); imshow(I); hold on; plot(regions);

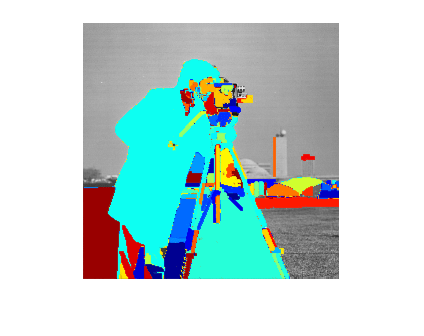

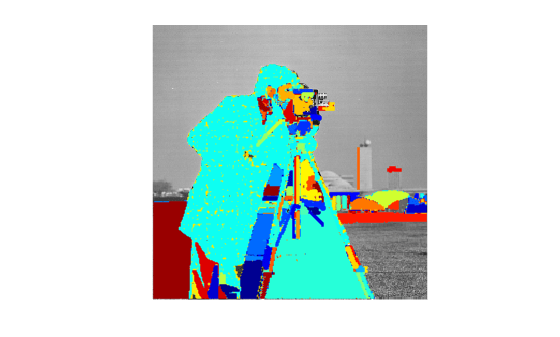

Plot MSER Regions.
figure; imshow(I); hold on; plot(regions,'showPixelList',true,'showEllipses',false); hold off;
Input Arguments
points
— Points
MSERRegions
object
Points, specified as a points object. The object contains information about the feature points detected in the 2-D grayscale input image.
ax
— Axes handle
handle
Handle to use for display. You can set the handle using gca
.
Name-Value Arguments
Example: 'ShowOrientation'
,'true'
showEllipses
— Display ellipsis
true
(default) | false
Display ellipsis around feature, specified as true
or
false
. When you set this value to true
, the
object draws an ellipse with the same 2nd order moments as the region. When you set
this value to false
, only the ellipses centers are plotted.
ShowOrientation
— Display orientation line
true
(default) | false
Display feature point orientation, specified as true
or
false
. When you set this value to true
, the
object draws a line corresponding to the point's orientation. The object draws the
line from the feature point location to the edge of the circle, indicating the
scale.
showPixelList
— Display regions using JET colormap
true
(default) | false
Display regions using JET colormap, specified as true
or
false
.
Version History
