System Architecture Report

Create and manage custom reports to export architecture model data

Since R2025a

Description

The System Architecture Report tool allows you to summarize and export System Composer™ architecture model data by generating custom reports.

Use the System Architecture Report tool to:

• Browse and select architecture models from which to generate consolidated reports that include multiple architecture models.

• Create and manage custom report templates.

• Define report contents by selecting which sections to include in your report and customizing section descriptions and which architectural element properties to include.

• Export architectural data by saving reports in PDF, DOCX, and HTML formats.

Open the System Architecture Report

To open the System Architecture Report tool, navigate to Modeling > Design > Review and click System Architecture Report .

Examples

Generate Custom Reports with System Architecture Report Tool

This example shows how to customize, generate, and manage reports for System Composer architecture models.

Use the System Architecture Report tool to select architecture models, customize the report title page, configure each section, and generate a PDF report.

Select architecture models to include in your report.

1. Click Browse.

2. In the Select File to Open dialog box, on the Model(s) Selection Panel, select each architecture model you want to add to the report.

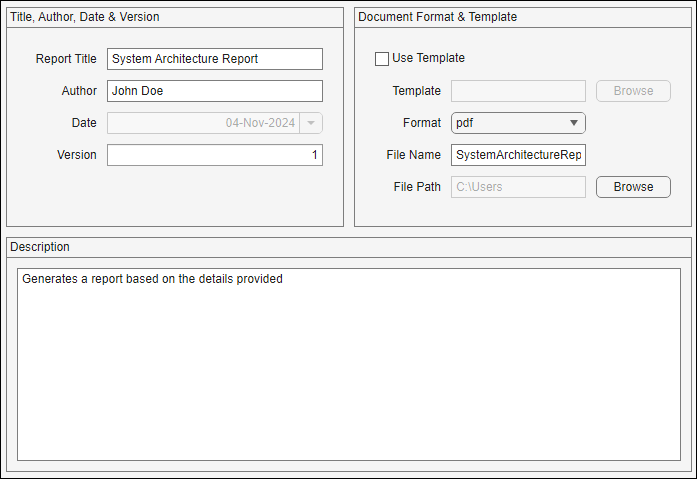

Customize the title page of your report.

• On the Title, Author, Date & Version pane, set Report Title, Author, Date, and Version for your report.

• On the Document Format & Template pane, select a report template to use. Set the format, name, and path of the report file.

• On the Description pane, specify a short description of your architecture model and report.

From the Configuration tab of the System Architecture Report, you can select or clear the section check box to include or exclude a section from your report.

For each section in your report, you can customize which information is included. To enable the Section pane, select a section from the Define Report Contents pane. From the Section pane, you can set the Section Title and Paragraph Text. Depending on which section you select, additional fields might be available for customization.

To modify the order of sections in your report, use the up and down arrows on the Ordering tab.

To generate a report, click Generate Report.

Version History

Introduced in R2025a
