gradient

Gradient vector of symbolic scalar field

Syntax

g = gradient(f,v)

g = gradient(f)

Description

g = gradient(f,v) returns the gradient vector of symbolic scalar field f with respect to vector v in Cartesian coordinates.

g = gradient(f) returns the gradient vector of the scalar field f with respect to a default vector constructed from the symbolic variables in f.

Examples

Find Gradient of Function

The gradient of a scalar function f with respect to the vector v is the vector of the first partial derivatives of f with respect to each element of v.

Find the gradient vector of f(x,y,z) with respect to vector [x,y,z]. The gradient is a vector with these components.

syms x y z
f(x,y,z) = 2*y*z*sin(x) + 3*x*sin(z)*cos(y);
v = [x,y,z];
gradient(f,v)

ans(x, y, z) =
$$\left(\begin{array}{c}3\hspace{0.17em}\cos \left(y\right)\hspace{0.17em}\sin \left(z\right)+2\hspace{0.17em}y\hspace{0.17em}z\hspace{0.17em}\cos \left(x\right)\\ 2\hspace{0.17em}z\hspace{0.17em}\sin \left(x\right)-3\hspace{0.17em}x\hspace{0.17em}\sin \left(y\right)\hspace{0.17em}\sin \left(z\right)\\ 2\hspace{0.17em}y\hspace{0.17em}\sin \left(x\right)+3\hspace{0.17em}x\hspace{0.17em}\cos \left(y\right)\hspace{0.17em}\cos \left(z\right)\end{array}\right)$$

Plot Gradient of Function

Find the gradient of a function f(x,y), and plot it as a quiver (velocity) plot.

Find the gradient vector of f(x,y) with respect to vector [x,y]. The gradient is vector g with these components.

syms x y
f = -(sin(x) + sin(y))^2;
v = [x y];
g = gradient(f,v)

g =
$$\left(\begin{array}{c}-2\hspace{0.17em}\cos \left(x\right)\hspace{0.17em}\left(\sin \left(x\right)+\sin \left(y\right)\right)\\ -2\hspace{0.17em}\cos \left(y\right)\hspace{0.17em}\left(\sin \left(x\right)+\sin \left(y\right)\right)\end{array}\right)$$

Now plot the vector field defined by these components. MATLAB® provides the quiver plotting function for this task. The function does not accept symbolic arguments. First, replace symbolic variables in expressions for components of g with numeric values. Then use quiver.

[X,Y] = meshgrid(-1:.1:1,-1:.1:1);
G1 = subs(g(1),v,{X,Y});
G2 = subs(g(2),v,{X,Y});

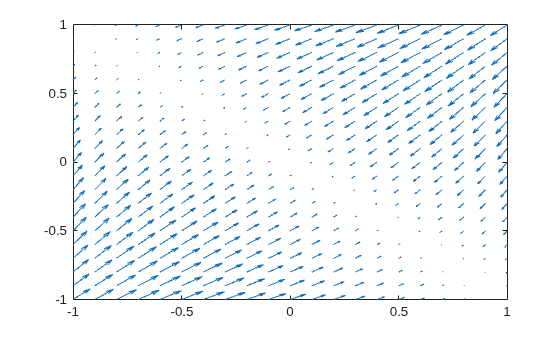

quiver(X,Y,G1,G2)

Gradient of Matrix Multiplication

Since R2021b

Use symbolic matrix variables to define a matrix multiplication that returns a scalar.

syms X Y [3 1] matrix
A = Y.'*X

A = $$Y^{\mathrm{T}}\hspace{0.17em}X$$

Find the gradient of the matrix multiplication with respect to $$X$$.

gX = gradient(A,X)

gX = $$Y$$

Find the gradient of the matrix multiplication with respect to $$Y$$.

gY = gradient(A,Y)

gY = $$X$$

Gradient of Multivariable Function

Since R2021b

Find the gradient of the multivariable function

$$f(x)={\sin }^2(x_{1,1})+{\sin }^2(x_{1,2})+{\sin }^2(x_{1,3})$$

with respect to the vector $$x=[x_{1,1},x_{1,2},x_{1,3}]$$.

Use a symbolic matrix variable to express the function $$f$$ and its gradient in terms of the vector $$x$$.

syms x [1 3] matrix
f = sin(x)*sin(x).'

f = $$\sin \left(x\right)\hspace{0.17em}{\sin \left(x\right)}^{\mathrm{T}}$$

g = gradient(f,x)

g = $$2\hspace{0.17em}\left(\cos \left(x\right)\odot {\mathrm{I}}_3\right)\hspace{0.17em}{\sin \left(x\right)}^{\mathrm{T}}$$

To express the gradient in terms of the elements of $$x$$, convert the result to a vector of symbolic scalar variables using symmatrix2sym.

g = symmatrix2sym(g)

g =
$$\left(\begin{array}{c}2\hspace{0.17em}\cos \left(x_{1,1}\right)\hspace{0.17em}\sin \left(x_{1,1}\right)\\ 2\hspace{0.17em}\cos \left(x_{1,2}\right)\hspace{0.17em}\sin \left(x_{1,2}\right)\\ 2\hspace{0.17em}\cos \left(x_{1,3}\right)\hspace{0.17em}\sin \left(x_{1,3}\right)\end{array}\right)$$

Alternatively, you can convert $$f$$ and $$x$$ to symbolic expressions of scalar variables and use them as inputs to the gradient function.

g = gradient(symmatrix2sym(f),symmatrix2sym(x))

g =
$$\left(\begin{array}{c}2\hspace{0.17em}\cos \left(x_{1,1}\right)\hspace{0.17em}\sin \left(x_{1,1}\right)\\ 2\hspace{0.17em}\cos \left(x_{1,2}\right)\hspace{0.17em}\sin \left(x_{1,2}\right)\\ 2\hspace{0.17em}\cos \left(x_{1,3}\right)\hspace{0.17em}\sin \left(x_{1,3}\right)\end{array}\right)$$

Find Vector Calculus Identities Involving Gradients

Since R2023a

Create a 3-by-1 vector as a symbolic matrix variable $\mathit{X}$. Create a scalar field that is a function of $\mathit{X}$ as a symbolic matrix function $A\left(\mathit{X}\right)$, keeping the existing definition of $\mathit{X}$.

syms X [3 1] matrix
syms A(X) [1 1] matrix keepargs

Find the gradient of $A\left(\mathit{X}\right)$ with respect to $\mathit{X}$. The gradient function returns an unevaluated formula.

gradA = gradient(A,X)

gradA(X) = $${\nabla }_X\mathrm{ }A\left(X\right)$$

Show that the divergence of the gradient of $A\left(\mathit{X}\right)$ is equal to the Laplacian of $A\left(\mathit{X}\right)$, that is ${\nabla }_{\mathit{X}}\cdot {\nabla }_{\mathit{X}}\mathit{A}\left(\mathit{X}\right)={\Delta }_{\mathit{X}}\mathit{A}\left(\mathit{X}\right)$.

divOfGradA = divergence(gradA,X)

divOfGradA(X) = $${\Delta }_X\mathrm{ }A\left(X\right)$$

lapA = laplacian(A,X)

lapA(X) = $${\Delta }_X\mathrm{ }A\left(X\right)$$

Show that the curl of the gradient of $A\left(\mathit{X}\right)$ is zero, that is ${\nabla }_{\mathit{X}}\times {\nabla }_{\mathit{X}}\mathit{A}\left(\mathit{X}\right)=0_{3,1}$.

curlOfGradA = curl(gradA,X)

curlOfGradA(X) = $${\mathrm{0}}_{3,1}$$

Input Arguments

f — Symbolic scalar field

symbolic expression | symbolic function | symbolic matrix variable | symbolic matrix function

Symbolic scalar field, specified as a symbolic expression, symbolic function, symbolic matrix variable, or symbolic matrix function.

• If f is a function of symbolic scalar variables, where f is of type sym or symfun, then the vector v must be of type sym or symfun.

• If f is a function of symbolic matrix variables, where f is of type symmatrix or symfunmatrix, then the vector v must be of type symmatrix or symfunmatrix.

Data Types: sym | symfun | symmatrix | symfunmatrix

v — Vector with respect to which you find the gradient

vector of symbolic scalar variables | symbolic function | symbolic matrix variable | symbolic matrix function

Vector with respect to which you find the gradient, specified as a vector of symbolic scalar variables, symbolic function, symbolic matrix variable, or symbolic matrix function.

• If you do not specify v and f is a function of symbolic scalar variables, then, by default, gradient constructs vector v from the symbolic scalar variables in f with the order of variables as defined by symvar(f).

• If v is a symbolic matrix variable of type symmatrix, then v must have a size of 1-by-N or N-by-1.

• If v is scalar, then gradient(f,v) = diff(f,v).

• If v is an empty symbolic object, such as sym([]), then gradient returns an empty symbolic object.

When finding the gradient of a scalar function f with respect to a row or column vector v, gradient uses the convention of always returning the output as a column vector. For example, if f is a 1-by-1 scalar and v is a 1-by-3 row vector, then gradient(f,v) finds the derivative of f with respect to each element of v and returns the result as a 3-by-1 column vector.

Data Types: sym | symfun | symmatrix | symfunmatrix

Limitations

• The gradient function does not support tensor derivatives. If the gradient is a tensor field or a matrix rather than a vector, then the gradient function returns an error.

• Symbolic Math Toolbox™ currently does not support the dot or cross functions for symbolic matrix variables and functions of type symmatrix and symfunmatrix. If vector calculus identities involve dot or cross products, then the toolbox displays those identities in terms of other supported functions instead. To see a list of all the functions that support symbolic matrix variables and functions, use the commands methods symmatrix and methods symfunmatrix.

More About

Gradient Vector

The gradient vector of f(x) with respect to the vector $$x=\left(x_1,x_2,\dots ,x_n\right)$$ is the vector of the first partial derivatives of f.

$${\nabla }_{x}f(x)=\left(\frac{\partial f}{\partial x_1},\frac{\partial f}{\partial x_2},\dots ,\frac{\partial f}{\partial x_n}\right)$$

Version History

Introduced in R2011b

R2023a: Compute gradient of symbolic matrix functions

The gradient function accepts symbolic matrix functions of type symfunmatrix as input arguments. For example, see Find Vector Calculus Identities Involving Gradients.

R2021b: Compute gradient of symbolic matrix variables

The gradient function accepts symbolic matrix variables of type symmatrix as input arguments. For examples, see Gradient of Matrix Multiplication and Gradient of Multivariable Function.
