Integration

If f is a symbolic expression, then

int(f)

attempts to find another symbolic expression, F, so that diff(F) = f. That is, int(f) returns the indefinite integral or antiderivative of f (provided one exists in closed form). Similar to differentiation,

int(f,v)

uses the symbolic object v as the variable of integration, rather than the variable determined by symvar. See how int works by looking at this table.

Mathematical Operation

MATLAB® Command

xndx={log(x)if n=1xn+1n+1otherwise.

int(x^n) or int(x^n,x)

0π/2sin(2x)dx=1

int(sin(2*x), 0, pi/2) or int(sin(2*x), x, 0, pi/2)

g  =  cos(at + b)

g(t)dt=sin(at+b)/a

g = cos(a*t + b) int(g) or int(g, t)

J1(z)dz=J0(z)

int(besselj(1, z)) or int(besselj(1, z), z)

In contrast to differentiation, symbolic integration is a more complicated task. A number of difficulties can arise in computing the integral:

  • The antiderivative, F, may not exist in closed form.

  • The antiderivative may define an unfamiliar function.

  • The antiderivative may exist, but the software can't find it.

  • The software could find the antiderivative on a larger computer, but runs out of time or memory on the available machine.

Nevertheless, in many cases, MATLAB can perform symbolic integration successfully. For example, create the symbolic variables

syms a b theta x y n u z

The following table illustrates integration of expressions containing those variables.

f

int(f)

syms x n
f = x^n;
int(f)
ans =
piecewise(n == -1, log(x), n ~= -1,...
 x^(n + 1)/(n + 1))
syms y
f = y^(-1);
int(f)
ans =
log(y)
syms x n
f = n^x;
int(f)
ans =
n^x/log(n)
syms a b theta
f = sin(a*theta+b);
int(f)
ans =
-cos(b + a*theta)/a
syms u
f = 1/(1+u^2);
int(f)
ans =
atan(u)
syms x
f = exp(-x^2);
int(f)
ans =
(pi^(1/2)*erf(x))/2

In the last example, exp(-x^2), there is no formula for the integral involving standard calculus expressions, such as trigonometric and exponential functions. In this case, MATLAB returns an answer in terms of the error function erf.

If MATLAB is unable to find an answer to the integral of a function f, it just returns int(f).

Definite integration is also possible.

Definite Integral

Command

abf(x)dx

int(f, a, b)

abf(v)dv

int(f, v, a, b)

Here are some additional examples.

f

a, b

int(f, a, b)

syms x
f = x^7;
a = 0;
b = 1;
int(f, a, b)
ans =
1/8
syms x
f = 1/x;
a = 1;
b = 2;
int(f, a, b)
ans =
log(2)
syms x
f = log(x)*sqrt(x);
a = 0;
b = 1;
int(f, a, b)
ans =
-4/9
syms x
f = exp(-x^2);
a = 0;
b = inf;
int(f, a, b)
ans =
pi^(1/2)/2
syms z
f = besselj(1,z)^2;
a = 0;
b = 1;
int(f, a, b)
ans =
hypergeom([3/2, 3/2],...
          [2, 5/2, 3], -1)/12

For the Bessel function (besselj) example, it is possible to compute a numerical approximation to the value of the integral, using the double function. The commands

syms z
a = int(besselj(1,z)^2,0,1)

return

a =
hypergeom([3/2, 3/2], [2, 5/2, 3], -1)/12

and the command

a = double(a)

returns

a =
    0.0717

Integration with Real Parameters

One of the subtleties involved in symbolic integration is the “value” of various parameters. For example, if a is any positive real number, the expression

eax2

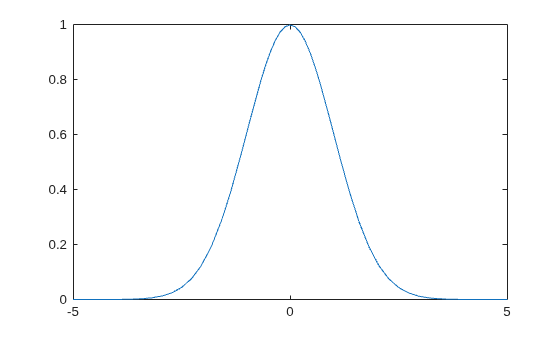

is the positive, bell shaped curve that tends to 0 as x tends to ±∞. You can create an example of this curve, for a = 1/2.

syms x
a = sym(1/2);
f = exp(-a*x^2);
fplot(f)

Figure contains an axes object. The axes object contains an object of type functionline.

However, if you try to calculate the integral

eax2dx

without assigning a value to a, MATLAB assumes that a represents a complex number, and therefore returns a piecewise answer that depends on the argument of a. If you are only interested in the case when a is a positive real number, use assume to set an assumption on a:

syms a
assume(a > 0)

Now you can calculate the preceding integral using the commands

syms x
f = exp(-a*x^2);
int(f, x, -inf, inf)

This returns

ans =
pi^(1/2)/a^(1/2)

Integration with Complex Parameters

To calculate the integral

1a2+x2dx

for complex values of a, enter

syms a x
f = 1/(a^2 + x^2);
F = int(f, x, -inf, inf)

Use syms to clear all the assumptions on variables. For more information about symbolic variables and assumptions on them, see Use Assumptions on Symbolic Variables.

The preceding commands produce the complex output

F =
(pi*signIm(1i/a))/a

The function signIm is defined as:

signIm(z)={1if Im(z)>0, or Im(z)=0 and Re(z)<00if  z=0-1otherwise.

Cartesian representation of a complex number z, showing regions where signIm has a value of 1, 0, and -1

To evaluate F at a = 1 + i, enter

g = subs(F, 1 + i)
g =
pi*(1/2 - 1i/2)
double(g)
ans =
   1.5708 - 1.5708i

High-Precision Numerical Integration Using Variable-Precision Arithmetic

High-precision numerical integration is implemented in the vpaintegral function of the Symbolic Math Toolbox™. vpaintegral uses variable-precision arithmetic in contrast to the MATLAB integral function, which uses double-precision arithmetic.

Integrate besseli(5,25*u).*exp(-u*25) by using both integral and vpaintegral. The integral function returns NaN and issues a warning while vpaintegral returns the correct result.

syms u
f = besseli(5,25*x).*exp(-x*25);
fun = @(u)besseli(5,25*u).*exp(-u*25);

usingIntegral = integral(fun, 0, 30)
usingVpaintegral = vpaintegral(f, 0, 30)
Warning: Infinite or Not-a-Number value encountered.
usingIntegral =
   NaN

usingVpaintegral =
0.688424

For more information, see vpaintegral.
