Customize and Extend Simscape Libraries for a Custom DC Motor
Create custom-equation-based components for the Simscape™ library using the Symbolic Math Toolbox™.
Introduction
The Symbolic Math Toolbox provides a flexible way to develop models from first engineering principles in any spatial dimension. You can develop mathematical models for steady state or transient physics.
You can develop and solve the equations required to represent the physics necessary for your component; and perform your own reduced-order model mapping between the inputs x and a quantity of interest f(x).
Here f is the custom component which can represent governing equations in the form of:
Mathematical formulas
Numerical simulations of ODEs and PDEs
The steps in this examples are
Parameterizing a Simscape™ component using
symReadSSCVariables
Define custom equations for your Simscape component using
diff
Solve steady-state equations analytically using
solve
andsubs
Solve time-dependent equations numerically in MATLAB® by using
matlabFunction
andode45
Create a Simscape component using
symWriteSSC
To run this example, you must have licenses for Simscape and Symbolic Math Toolbox.
DC Motor Model

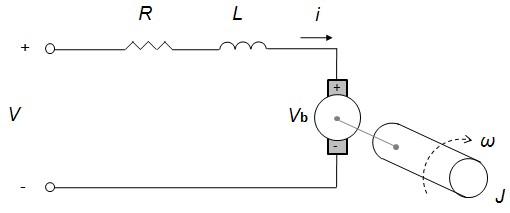

A DC motor is a device for converting electrical energy into mechanical energy and vice versa. A schematic of a DC motor is shown below (left figure). Blocks that simulate DC motors are provided in Simscape Electrical™ (right figure), which is an optional product for Simscape.
In this example, we will derive a reduced-order model representation of a DC Motor using the governing Ordinary Differential Equations (ODEs). For a DC motor, the electrical voltage and current is derived from Kirchhoff’s laws and the formula of the mechanical torque is derived from Newton’s laws. Using these equations we can implement a custom and parametric Simscape component.
Import Parameters and Variables of Template Component
Suppose you have a Simscape component MyMotorTemplate.ssc
in your current folder or on the default MATLAB path. This component has no equations yet. The template records the parameters and variables which will be used to develop our motor. You can use type
to provide a preview of that template.
type MyMotorTemplate.ssc
component MyMotorTemplate % Custom DC Motor % This block implements a custom DC motor nodes p = foundation.electrical.electrical; % +:left n = foundation.electrical.electrical; % -:left r = foundation.mechanical.rotational.rotational; % R:right c = foundation.mechanical.rotational.rotational; % C:right end parameters R = {3.9, 'Ohm'}; %Armature resistance L = {0.000012, 'H'}; %Armature inductance J = {0.000001, 'kg*m^2'}; %Inertia Dr = {0.000003, '(N*m*s)/rad'}; %Rotor damping Ki = {0.000072, '(N*m)/A'}; %Torque constant Kb = {0.000072, '(V*s)/rad'}; %Back-emf constant end variables torque = {0, 'N*m'}; %Total Torque tau = {0, 'N*m'}; %Electric Torque w = {0, 'rad/s'}; %Angular Velocity I = {0, 'A'}; %Current V = {0, 'V'}; %Applied voltage Vb = {0, 'V'}; %Counter electromotive force end function setup if(R<=0) error('Winding resistance must be greater than 0.'); end end branches torque : r.t -> c.t; % Through variable tau from r to c I : p.i -> n.i; % Through variable i from p to n end equations w == r.w -c.w; % Across variable w from r to c V == p.v -n.v; % Across variable v from p to n end end
Read the names, values, and units of the parameters from the template component.
[parNames, parValues, parUnits] = symReadSSCParameters('MyMotorTemplate');
Display the parameters, their values, and the corresponding units as vectors.
vpa([parNames; parValues; parUnits],10)
ans =
Add the parameter names to the MATLAB Workspace by using the syms
function. Parameters appear as symbolic variables in the workspace. You can use who
to list variables in the workspace.
syms(parNames) syms
Your symbolic variables are: Dr J Kb Ki L R ans
Read and display the names of the component variables. Use ReturnFunction
to simultaneously convert these variables to functions of the variable t
.
[varFuns, varValues, varUnits] = symReadSSCVariables('MyMotorTemplate', 'ReturnFunction', true); vpa([varFuns; varValues; varUnits],10)
ans =
Add the variable names to the MATLAB Workspace by using the syms
function. Variables appear as symbolic functions in the workspace. Verify that you have declared all required symbolic variables and functions using syms
.
syms(varFuns) syms
Your symbolic variables are: Dr I J Kb Ki L R V Vb ans t tau torque w
Define System of Equations for Modeling DC Motor
The differential equations for the mechanical torque are defined as eq1
and eq2
. I(t)
represents the current and w(t)
the angular velocity.
eq1 = torque + J*diff(w(t)) == -Dr*w(t) + tau(t)
eq1(t) =
eq2 = tau(t) == Ki*I(t)
eq2 =
The equations for the electrical voltage and current are eq3
and eq4
. V(t) and Vb(t) represent the applied voltage and counter electromotive force respectively.
eq3 = L*diff(I(t)) + R*I(t) == V(t) - Vb(t)
eq3 =
eq4 = Vb(t) == Kb*w(t)
eq4 =
We can list them together. Here, the motor’s torque is assumed to be proportional to the current.
eqs = formula([eq1; eq2; eq3; eq4])
eqs =
Extract the left and right sides of the equations.
operands = children(eqs); operList = [ operands{:} ]; lhs = operList(1:2:end)
lhs=1×4 cell array
{[J*diff(w(t), t) + torque(t)]} {[tau(t)]} {[L*diff(I(t), t) + R*I(t)]} {[Vb(t)]}
rhs = operList(2:2:end)
rhs=1×4 cell array
{[tau(t) - Dr*w(t)]} {[Ki*I(t)]} {[V(t) - Vb(t)]} {[Kb*w(t)]}
The second and fourth equations define the values tau(t)
and Vb(t)
. To simplify the system of four equations to a system of two equations, substitute these values into the first and third equation.
equations(1) = subs(eqs(1), lhs(2), rhs(2))
equations =
equations(2) = subs(eqs(3), lhs(4), rhs(4))
equations =
equations.'
ans =
Before solving the equations, substitute parameters with their numeric values. Also, use V(t) = 1
.
equations = subs(equations, [parNames,V(t)], [parValues,1]); equations = subs(equations, torque, 0); vpa(equations.',10)
ans =
Solve Equations for Steady State
For this, remove the time dependency for the functions w(t)
and I(t)
. For example, substitute them with symbolic variables ww
and ii
.
syms ww ii equations_steady = subs(equations, [w(t),I(t)], [ww,ii]); result = solve(equations_steady,ww,ii); steadyStateW = vpa(result.ww,10)
steadyStateW =
steadyStateI = vpa(result.ii,10)
steadyStateI =
Numerically Simulate Symbolic Expression in MATLAB by Using matlabFunction
and ode45
Create a valid input for ode45
from the symbolic equations. Use odeToVectorField
to create the MATLAB procedure which represents the dynamical system with the initial condition .
[vfEquations, tVals] = odeToVectorField(equations)
vfEquations =
tVals =
M = matlabFunction(vfEquations,'Vars', {'t','Y'})
M = function_handle with value:
@(t,Y)[Y(1).*(-3.25e+5)-Y(2).*6.0+8.333333333333333e+4;Y(1).*7.2e+1-Y(2).*3.0]
Solve the differential equation using the initial conditions w(0) = 0
and I(0) = 0
.
solution = ode45(M,[0 3],[0 0])
solution = struct with fields:
solver: 'ode45'
extdata: [1x1 struct]
x: [0 2.4114e-09 1.4468e-08 7.4754e-08 3.7618e-07 1.8833e-06 4.0507e-06 6.6351e-06 9.6952e-06 1.3333e-05 1.7740e-05 2.3237e-05 3.0371e-05 4.0045e-05 5.2842e-05 6.2514e-05 7.2187e-05 8.3013e-05 9.4295e-05 1.0467e-04 ... ] (1x293775 double)
y: [2x293775 double]
stats: [1x1 struct]
idata: [1x1 struct]
Evaluate the solution at the following points in time t=[0.5,0.75,1]. The first value is the current I(t)
and the second value is the angular velocity w(t)
. We see that the solution for the angular velocity is starting to approach a steady state steadyStateW
.
deval(solution,0.5), deval(solution,.75), deval(solution,1)
ans = 2×1
0.2563
4.7795
ans = 2×1
0.2563
5.5034
ans = 2×1
0.2563
5.8453
steadyStateW
steadyStateW =

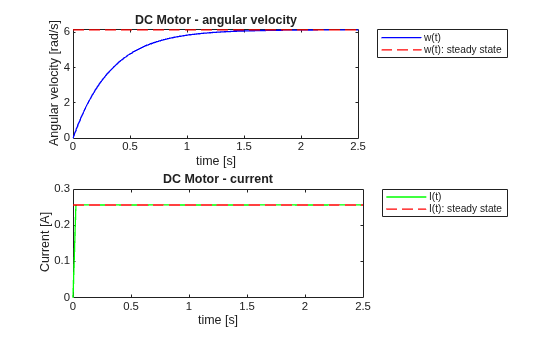

Plot the solution.
time = linspace(0,2.5); iValues = deval(solution, time, 1); wValues = deval(solution, time, 2); steadyStateValuesI = vpa(steadyStateI*ones(1,100),10); steadyStateValuesW = vpa(steadyStateW*ones(1,100),10); figure; plot1 = subplot(2,1,1); plot2 = subplot(2,1,2); plot(plot1, time, wValues, 'blue', time, steadyStateValuesW, '--red', 'LineWidth', 1) plot(plot2, time, iValues, 'green', time, steadyStateValuesI, '--red', 'LineWidth', 1) title(plot1, 'DC Motor - angular velocity') title(plot2, 'DC Motor - current') ylabel(plot1, 'Angular velocity [rad/s]') ylabel(plot2, 'Current [A]') xlabel(plot1, 'time [s]') xlabel(plot2, 'time [s]') legend(plot1, 'w(t)', 'w(t): steady state', 'Location', 'northeastoutside') legend(plot2, 'I(t)', 'I(t): steady state', 'Location', 'northeastoutside')
Save Your Mathematical Model for Use in Simscape
Generate Simscape code using the original equations eqs
.
symWriteSSC('MyMotor.ssc', 'MyMotorTemplate.ssc', eqs, ... 'H1Header', '% Custom DC Motor', ... 'HelpText', {'% This block implements a custom DC motor'})
Display the generated component by using the type
command.
type MyMotor.ssc
component MyMotor % Custom DC Motor % This block implements a custom DC motor nodes p = foundation.electrical.electrical; % +:left n = foundation.electrical.electrical; % -:left r = foundation.mechanical.rotational.rotational; % R:right c = foundation.mechanical.rotational.rotational; % C:right end parameters R = {3.9, 'Ohm'}; %Armature resistance L = {0.000012, 'H'}; %Armature inductance J = {0.000001, 'kg*m^2'}; %Inertia Dr = {0.000003, '(N*m*s)/rad'}; %Rotor damping Ki = {0.000072, '(N*m)/A'}; %Torque constant Kb = {0.000072, '(V*s)/rad'}; %Back-emf constant end variables torque = {0, 'N*m'}; %Total Torque tau = {0, 'N*m'}; %Electric Torque w = {0, 'rad/s'}; %Angular Velocity I = {0, 'A'}; %Current V = {0, 'V'}; %Applied voltage Vb = {0, 'V'}; %Counter electromotive force end function setup if(R<=0) error('Winding resistance must be greater than 0.'); end end branches torque : r.t -> c.t; % Through variable tau from r to c I : p.i -> n.i; % Through variable i from p to n end equations w == r.w -c.w; % Across variable w from r to c V == p.v -n.v; % Across variable v from p to n torque+J*w.der == tau-Dr*w; tau == Ki*I; L*I.der+R*I == V-Vb; Vb == Kb*w; end end

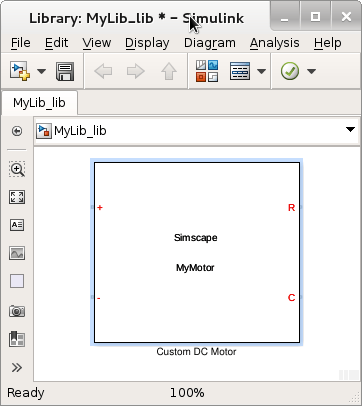

Build a Simscape library from the generated component.
if ~isdir('+MyLib') mkdir +MyLib; end copyfile MyMotor.ssc +MyLib; ssc_build MyLib;
Generating Simulink library 'MyLib_lib' in the current directory '/tmp/Bdoc24b_2679053_4069898/tpec333539/symbolic-ex98670381' ...
