boxchart

Box chart (box plot) for analysis of variance (ANOVA)

Since R2022b

    Description

    boxchart(aov) creates a notched box plot of the response data for each factor value of the one-way anova object aov. This syntax is supported only if the factor is categorical.

    example

    boxchart(aov,factors) creates a notched box plot for each value of the factors in factors. The argument factors must consist of up to two of the categorical factor names in aov.FactorNames.

    example

    boxchart(___,Name=Value) specifies options using one or more name-value arguments in addition to any of the input argument combinations in the previous syntaxes. For example, you can specify the box median line color and the marker style. For a list of properties, see BoxChart Properties.

    example

    boxchart(ax,___) plots the axes specified by ax instead of into the current axes (gca).

    example

    b = boxchart(___) returns a graphics vector b of BoxChart objects for the generated box plots.

    Examples

    collapse all

    Load popcorn yield data.

    load popcorn.mat

    The columns of the 6-by-3 matrix popcorn contain popcorn yield observations in cups for three different brands.

    Perform a one-way ANOVA to test the null hypothesis that the popcorn yield is not affected by the brand of popcorn.

    aov = anova(popcorn,FactorNames="Brand")
    aov =
    1-way anova, constrained (Type III) sums of squares.

    Y ~ 1 + Brand

                 SumOfSquares    DF    MeanSquares     F        pValue
                 ____________    __    ___________    ____    __________

        Brand       15.75         2        7.875      18.9    7.9603e-05
        Error        6.25        15      0.41667
        Total          22        17


      Properties, Methods




    The small p-value indicates that at least one brand has a different popcorn yield that is statistically significant.

    Create a box plot of the response data for each value of Brand.

    boxchart(aov)
    xlabel("Brand")
    ylabel("Popcorn Yield")

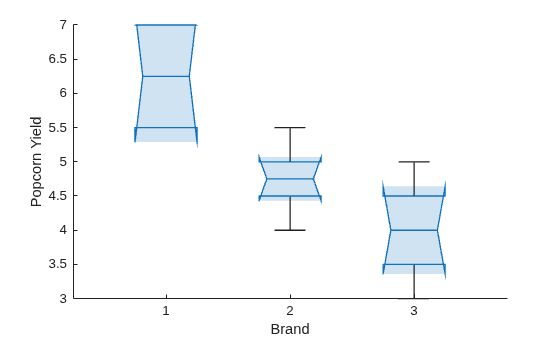

    Figure contains an axes object. The axes object with xlabel Brand, ylabel Popcorn Yield contains an object of type boxchart. This object represents Brand.

    The shaded region of the first box plot does not overlap with the shaded regions of the other box plots, indicating that the difference in popcorn yield for the first brand is statistically significant.

    Load popcorn yield data.

    load popcorn.mat

    The columns of the 6-by-3 matrix popcorn contain popcorn yield observations in cups for the brands Gourmet, National, and Generic. The first three rows of the matrix correspond to popcorn that was popped with an oil popper, and the last three rows correspond to popcorn that was popped with an air popper.

    Create string arrays containing factor values for the brand and popper type by using the repmat function.

    brand = [repmat("Gourmet",6,1);repmat("National",6,1);repmat("Generic",6,1)];
    poppertype = [repmat("Air",3,1);repmat("Oil",3,1);repmat("Air",3,1);...
        repmat("Oil",3,1);repmat("Air",3,1);repmat("Oil",3,1)];
    factors = {brand,poppertype};

    Perform a two-way ANOVA to test the null hypothesis that the popcorn yield is not affected by the brand of popcorn, type of popper, or the interaction between the brand and type of popper.

    aov = anova(factors,popcorn(:),FactorNames=["Brand","PopperType"],...
        ModelSpecification="interactions")
    aov =
    2-way anova, constrained (Type III) sums of squares.

    Y ~ 1 + Brand*PopperType

                            SumOfSquares    DF    MeanSquares     F        pValue
                            ____________    __    ___________    ____    __________

        Brand                    15.75       2        7.875      56.7     7.679e-07
        PopperType                 4.5       1          4.5      32.4    0.00010037
        Brand:PopperType      0.083333       2     0.041667       0.3       0.74622
        Error                   1.6667      12      0.13889
        Total                       22      17


      Properties, Methods




    aov is an anova object that contains the results of the two-way ANOVA. The small p-values for Brand and PopperType indicate that both the brand and type of popper have a statistically significant effect on the popcorn yield. The large p-value for Brand:PopperType indicates that not enough evidence exists to reject the null hypothesis that the interaction term does not have a statistically significant effect on the popcorn yield.

    Use boxchart to plot the response data grouped by the values for Brand and the response data grouped by PopperType. To see the color boxchart assigns to each popper type, add a legend.

    boxchart(aov,["Brand","PopperType"])
    legend

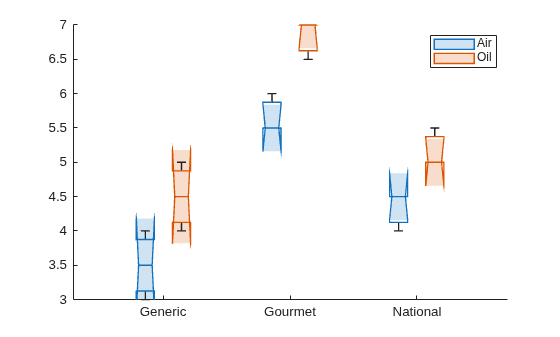

    Figure contains an axes object. The axes object contains 2 objects of type boxchart. These objects represent Air, Oil.

    The box plots indicate that the popcorn yield is higher for popcorn popped in oil, regardless of the brand. For each type of popper, the Gourmet brand yields the most popcorn and the Generic brand yields the least. This result is consistent with the results from the two-way ANOVA.

    Load popcorn yield data.

    load popcorn.mat

    The columns of the 6-by-3 matrix popcorn contain popcorn yield observations in cups for the brands Generic, Gourmet, and National. The first three rows of the matrix correspond to popcorn that was popped with an oil popper, and the last three rows correspond to popcorn that was popped with an air popper.

    Create string arrays containing factor values for the brand and popper type using the function repmat.

    brand = [repmat("Gour.",6,1);repmat("Nat.",6,1);repmat("Gen.",6,1)];
    poppertype = [repmat("Air",3,1);repmat("Oil",3,1);repmat("Air",3,1);...
        repmat("Oil",3,1);repmat("Air",3,1);repmat("Oil",3,1)];

    Perform a two-way ANOVA to test the null hypothesis that the popcorn yield is not affected by the brand of popcorn or type of popper.

    aov = anova({brand,poppertype}, popcorn(:), FactorNames=["Brand","PopperType"]);

    Create a 1-by-2 tiled chart layout. In the first set of axes, plot the box plots for the brand. In the second set of axes, plot the box plots for the popper type.

    tiledlayout(1,2)

    % Left axes
    ax1 = nexttile;
    boxchart(ax1,aov,"Brand")
    xlabel(ax1,"Brand")
    ylabel(ax1,"Popcorn Yield")

    % Right axes
    ax2 = nexttile;
    boxchart(ax2,aov,"PopperType")
    xlabel(ax2,"Popper Type")

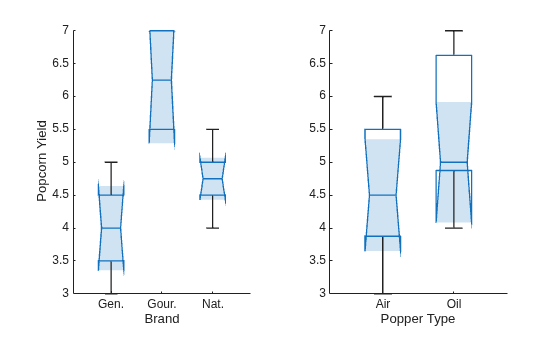

    Figure contains 2 axes objects. Axes object 1 with xlabel Brand, ylabel Popcorn Yield contains an object of type boxchart. This object represents Brand. Axes object 2 with xlabel Popper Type contains an object of type boxchart. This object represents PopperType.

    The box plot median lines indicate that the brand of popcorn has a larger effect on the popcorn yield than the type of popper.

    Load popcorn yield data.

    load popcorn.mat

    The columns of the 6-by-3 matrix popcorn contain popcorn yield observations in cups for three different brands.

    Perform a one-way ANOVA to test the null hypothesis that the popcorn yield is not affected by the brand of popcorn.

    aov = anova(popcorn,FactorNames="Brand")
    aov =
    1-way anova, constrained (Type III) sums of squares.

    Y ~ 1 + Brand

                 SumOfSquares    DF    MeanSquares     F        pValue
                 ____________    __    ___________    ____    __________

        Brand       15.75         2        7.875      18.9    7.9603e-05
        Error        6.25        15      0.41667
        Total          22        17


      Properties, Methods




    Plot the response data for the different values of Brand. Plot the median line in red, the box face in gray, and the box edges in black.

    boxchart(aov,BoxFaceAlpha=0.2,BoxFaceColor="k",...
        BoxEdgeColor="k",BoxMedianLineColor="r")
    xlabel("Brand")
    ylabel("Popcorn Yield")

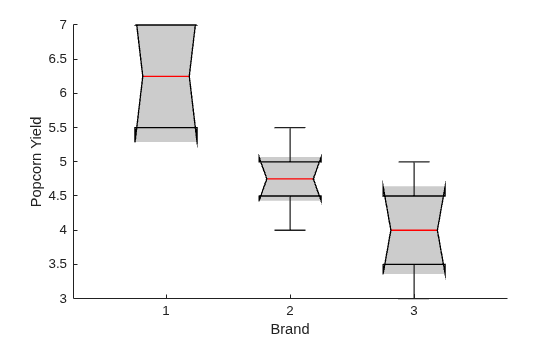

    Figure contains an axes object. The axes object with xlabel Brand, ylabel Popcorn Yield contains an object of type boxchart. This object represents Brand.

    The shaded region of the first box plot does not overlap with the shaded regions of the other box plots, indicating that the difference in the popcorn yield for the first brand is statistically significant.

    Input Arguments

    collapse all

    Analysis of variance results, specified as an anova object. The properties of aov contain the factors and response data used by boxchart to generate the box plots.

    Factors used to group the response data, specified as a string vector or cell array of character vectors. The boxchart function groups the response data by the combinations of values for factors in factors. The factors input argument must be one or two of the categorical factor names in aov.FactorNames.

    Example: ["g1","g2"]

    Data Types: string | cell

    Target axes, specified as an Axes object. If you do not specify the axes, then boxchart uses the current axes (gca).

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: Orientation="horizontal",BoxMedianLineColor="r",WhiskerLineStyle="--" creates horizontal box plots with red median lines and dashed whiskers.

    The BoxChart properties listed here are only a subset. For a complete list, see BoxChart Properties.

    Box color, specified as an RGB triplet, hexadecimal color code, color name, or short name. The box includes the box edges and median line. To specify the color of the box edges and median line separately, you can use the BoxEdgeColor property. To specify the color of the median line only, use the BoxMedianLineColor property.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    "red""r"[1 0 0]"#FF0000"

    Sample of the color red

    "green""g"[0 1 0]"#00FF00"

    Sample of the color green

    "blue""b"[0 0 1]"#0000FF"

    Sample of the color blue

    "cyan" "c"[0 1 1]"#00FFFF"

    Sample of the color cyan

    "magenta""m"[1 0 1]"#FF00FF"

    Sample of the color magenta

    "yellow""y"[1 1 0]"#FFFF00"

    Sample of the color yellow

    "black""k"[0 0 0]"#000000"

    Sample of the color black

    "white""w"[1 1 1]"#FFFFFF"

    Sample of the color white

    "none"Not applicableNot applicableNot applicableNo color

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410]"#0072BD"

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980]"#D95319"

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250]"#EDB120"

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560]"#7E2F8E"

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880]"#77AC30"

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330]"#4DBEEE"

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840]"#A2142F"

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Example: BoxFaceColor="red"

    Example: BoxFaceColor=[0 0.5 0.5]

    Example: BoxFaceColor="#EDB120"

    Outlier style, specified as one of the options listed in this table.

    MarkerDescriptionResulting Marker
    "o"Circle

    Sample of circle marker

    "+"Plus sign

    Sample of plus sign marker

    "*"Asterisk

    Sample of asterisk marker

    "."Point

    Sample of point marker

    "x"Cross

    Sample of cross marker

    "_"Horizontal line

    Sample of horizontal line marker

    "|"Vertical line

    Sample of vertical line marker

    "square"Square

    Sample of square marker

    "diamond"Diamond

    Sample of diamond marker

    "^"Upward-pointing triangle

    Sample of upward-pointing triangle marker

    "v"Downward-pointing triangle

    Sample of downward-pointing triangle marker

    ">"Right-pointing triangle

    Sample of right-pointing triangle marker

    "<"Left-pointing triangle

    Sample of left-pointing triangle marker

    "pentagram"Pentagram

    Sample of pentagram marker

    "hexagram"Hexagram

    Sample of hexagram marker

    "none"No markersNot applicable

    Example: MarkerStyle="x"

    Example: MarkerStyle="none"

    Outlier marker displacement, specified as "on" or "off", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. So, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    If you set the JitterOutliers property to "on", then boxchart randomly displaces the outlier markers along the XData direction to help you distinguish between outliers that have similar aov.Y values. For an example, see Visualize and Find Outliers.

    Example: JitterOutliers="on"

    Median comparison display, specified as "on" or "off", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. So, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

    If you set the Notch property to "on", then boxchart creates a tapered, shaded region around each median. Box plots whose notches do not overlap have different medians at the 5% significance level. For more information, see Box Chart (Box Plot).

    Notches can extend beyond the lower and upper quartiles.

    Example: Notch="off"

    Orientation of box plots, specified as "vertical" or "horizontal". By default, box plots have a vertical orientation, so that the maov.Y statistics are aligned with the y-axis. Regardless of the orientation, boxchart stores the maov.Y values in the YData property of the BoxChart object.

    Example: Orientation="horizontal";

    Output Arguments

    collapse all

    Box plots, returned as a vector of BoxChart objects. If the factors input argument contains only one categorical factor name, b contains a single BoxChart object. If factors contains two categorical factor names, b contains the same number of BoxChart objects as the number of values for the second factor. Use b to set properties of the box plots after creating them. For more information see BoxChart Properties.

    Version History

    Introduced in R2022b
