sltest.testsequence.addSymbol

Add symbol to test sequence

Syntax

sltest.testsequence.addSymbol(blockPath,name,kind,scope)

Description

sltest.testsequence.addSymbol(blockPath,name,kind,scope) adds a symbol name with properties specified by scope and kind to a Test Sequence block specified by blockPath. The new symbol appears in the Symbols sidebar of the Test Sequence Editor. Symbols include data, messages, function calls, and triggers.

Examples

Create a New Data Symbol

This example creates a parameter theta in the Test Sequence block.

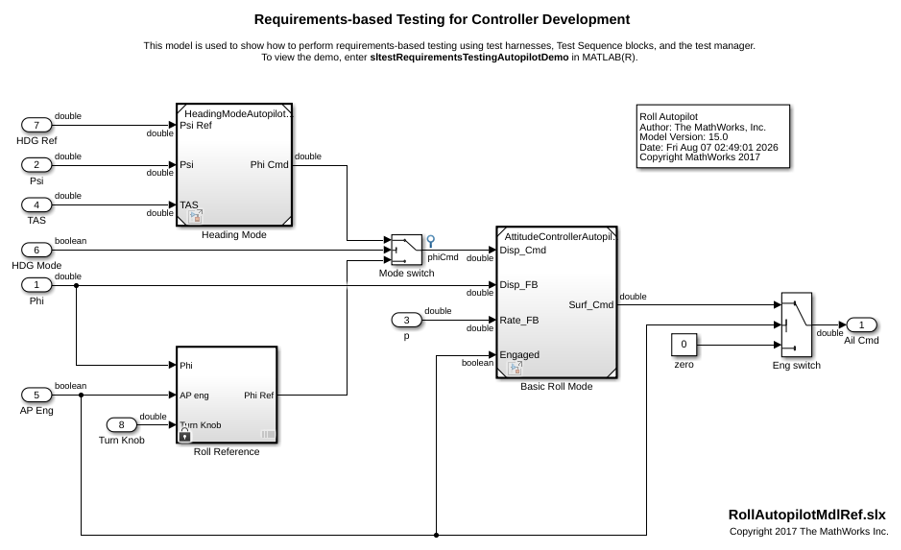

Open the Model and the Test Harness

rollModel = 'RollAutopilotMdlRef';
testHarness = 'RollReference_Requirement1_3';

open_system(rollModel);

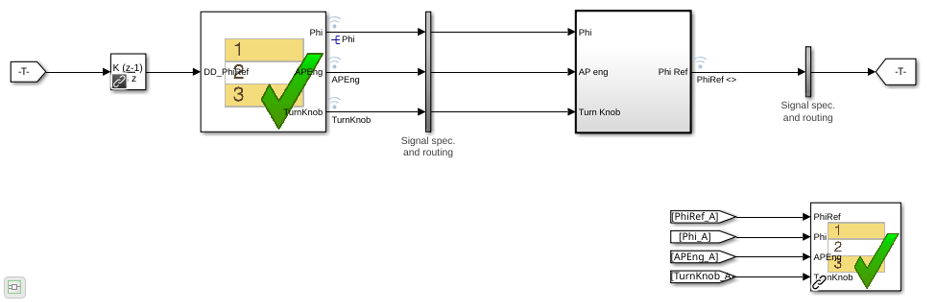

sltest.harness.open([rollModel '/Roll Reference'],testHarness);

Add a New Parameter

sltest.testsequence.addSymbol...
   ('RollReference_Requirement1_3/Test Sequence',...
   'theta','Data','Parameter');

Input Arguments

blockPath — Test Sequence block path or handle

string | character vector

Path to a Test Sequence block, including the block name, specified as a string or character vector. Instead of the block path, you can use a block handle.

Example: 'FanSpeedTestHarness/Test Sequence'

name — Name of new symbol

character vector

Name of the new symbol, specified as a character vector. The symbol must not already exist in the Test Sequence block.

Example: 'theta'

kind — Symbol type

'Data' | 'Message' | 'Function Call' | 'Trigger'

Symbol type, specified as a character vector.

Example: 'Data'

scope — Symbol scope

'Input' | 'Output' | 'Local' | 'Constant' | 'Parameter' | 'Data Store Memory'

Symbol scope, specified as a character vector.

Example: 'Parameter'

Version History

Introduced in R2016a
