sldvmergedata

R2026b

Merge test generation results from multiple sessions when the model remains unchanged

Since R2026a

Syntax

mergedSldvData = sldvmergedata(sldvData1,..,sldvDataN)

Description

mergedSldvData = sldvmergedata(sldvData1,..,sldvDataN) merges the test generation results into a single result structure.

The sldvmergedata function results from multiple test generation analysis sessions into a single data file. It assigns a suitable status value and, when possible, a test case to each coverage objective in the final data by processing input result files. When multiple test cases exist for an objective, sldvmergedata selects one. If any input file reports an objective as dead logic, sldvmergedata marks that objective as dead logic in the final data.

You must generate all input data files without changing the model semantics across analysis runs. This means you keep the model contents unchanged and use identical parameter configurations across runs that produce the input data files.

Note

Use sldvcombinetests when you want to aggregate generated test cases from multiple analysis runs into a single result file. This function is less strict than sldvmergedata function because it allows certain changes to the model during those runs.

Examples

Merge Test Generation Results

Merge test generation results for the model mState_machine.

Open the example. Set up test generation options for decision coverage.

model = "mState_Machine";
open_system(model);
opts = sldvoptions;
opts.MaxProcessTime = 60;
opts.Mode = "TestGeneration";
opts.ModelCoverageObjectives = "Decision";
[~,fileNames1,errors] = sldvrun(model,opts,true);

Use the generated results to generate a coverage file.

runOpts = sldvruntestopts;
runOpts.coverageEnabled = true;
[~,covData] = sldvruntest(model,fileNames1.DataFile,runOpts);
covFileNameDecision = "mState_Machine_cov.cvt";
cvsave(covFileNameDecision,covData);

You now have two different coverage files. Both the .cvt files are identical with different names to distinguish the usage with or without the usage of parameters. You can load these files later, merge, or review.

Use coverage data to run test cases with decision coverage.

opts.ModelCoverageObjectives = "ConditionDecision";
opts.IgnoreCovSatisfied = "on";
opts.CoverageDataFile = covFileNameDecision;

Use prior coverage and run Condition Decision.

opts2 = sldvoptions;
opts2.Mode = "TestGeneration";
opts2.ModelCoverageObjectives = "ConditionDecision";
opts2.IgnoreCovSatisfied = "on";            % Skip already satisfied objectives
opts2.CoverageDataFile = covFileNameDecision;
[~,fileNames2] = sldvrun(model,opts2,true);

Execute tests from second run with coverage collection.

[~,covData2] = sldvruntest(model,fileNames2.DataFile,runOpts);
covFileNameCondDec = "mState_Machine_conddec_cov.cvt";
cvsave(covFileNameCondDec,covData2);

Merge the analysis results.

sldvData = sldvmergedata(fileNames1.DataFile,fileNames2.DataFile);

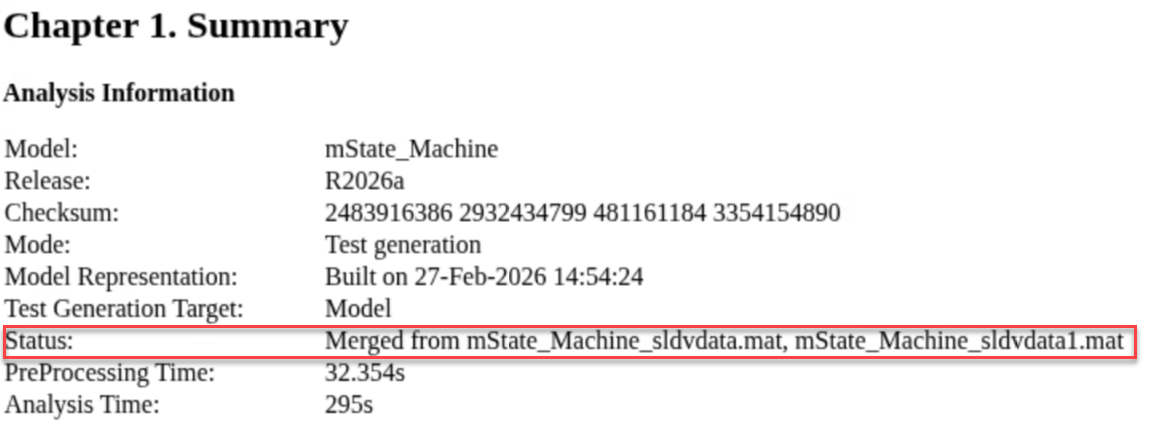

The analysis results from both the earlier runs of Simulink Design Verifier data files is here:

You can also save the merged data.

mergedDataFile = "mState_Machine_sldv_merged_sldvData.mat";
save(mergedDataFile,"sldvData");

Input Arguments

sldvData — Data file with analysis results

character vector | string scalar

Name of the data file that contains the analysis results, specified as a character vector or string scalar.

Example: mState_Machine_Merged.sldvData

Output Arguments

mergedSldvData — Merged results

structure

Merged results containing the test cases, returned as a structure.

Limitations

• You can merge only test generation results. Merging results from different analysis modes such as detecting design errors and property proving is not supported.

Version History

Introduced in R2026a
