Create a Real-Time Application

Open Model

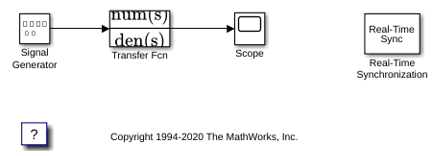

A Simulink® model is a graphical representation of your physical system. You create a Simulink model for a non-real-time simulation of your system, and then you use the Simulink model to create a real-time application.

Open the Model

This example uses sldrtex_model. To open this model, in the MATLAB® Command Window, type:

open_system('sldrtex_model')

Note: You cannot run a Simulink® Desktop Real-Time™ model in rapid accelerator mode.

Run the Model

To run sldrtex_model in Connected IO mode:

  1. Configure a Model for Simulink Desktop Real-Time

  2. Simulate Model in Connected IO Mode

To run sldrtex_model as a real-time application:

  1. Set Run in Kernel Mode Code Generation Parameters

  2. Prepare Run in Kernel Mode Application

  3. Set Run in Kernel Mode (External Mode) Scope Parameters

  4. Execute Real-Time Application in Run in Kernel Mode by Using Run in Real Time

Close the Model

To close the model, in the MATLAB Command Window, type:

bdclose("all");
