This example shows how to enable custom masked subsystems in Control System Designer. Once configured, you can tune a custom masked subsystem in the same way as any supported blocks in Simulink® Control Design™. For more information, see What Blocks Are Tunable?.
For this example, you tune the Lead-Lag Controller block in the
This block implements a compensator with a single zero, a single pole, and a gain. To configure the controller, you can specify the following block parameters.
Zero Frequency ()
Pole Frequency ()
The Lead-Lag Controller block implements the following transfer function.
To configure a masked subsystem for tuning with Control System Designer, you specify a configuration function. In this example, the block uses the configuration function in
scdleadexample.m. To open this file, at the MATLAB® command line, type
This function returns a structure with the following fields.
TunableParameters — Structure array with one element for each tunable parameter (gain, zero, pole)
EvalFcn — Handle to function that converts block parameters to zero-pole-gain form
InvFcn — Handle to function that computes block parameters given zero-pole-gain values
Constraints — Structure specifying constraints on the block, such as the number of poles and zeros
Inport — Port number for the controller input
Outport — Port number for the controller output
scdleadexample configuration function specifies the following constraints for the controller block.
There is only one pole allowed (
There is only one zero allowed (
The gain is tunable (
To use a configuration function, specify it as the

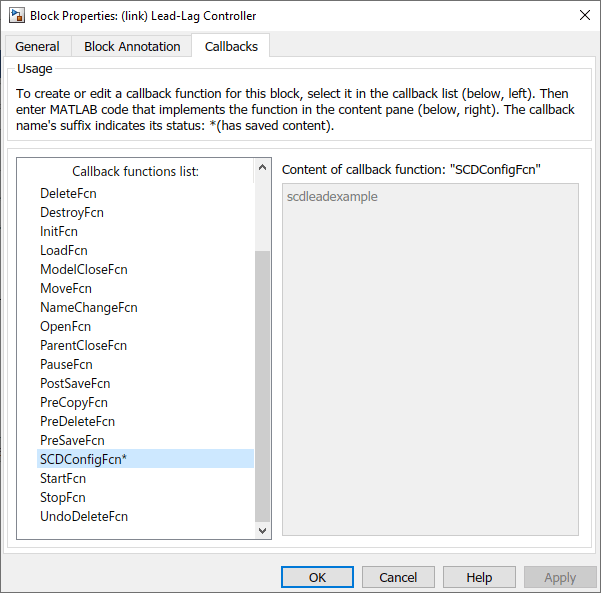

SCDConfigfcn callback function for the block. To do so, right-click the Lead-Lag Controller block and select Properties. Then, in the Block Properties dialog box, on the Callbacks tab, set
Alternatively, you can set
SCDConfigFcn using the
Once you set the block configuration function, you can tune the controller using Control System Designer.

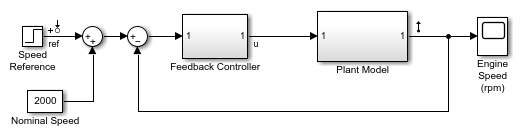

scdspeedctrlleadlag model uses the Lead-Lag Controller block to tune the feedback loop in Single Loop Feedback/Prefilter Compensator Design.

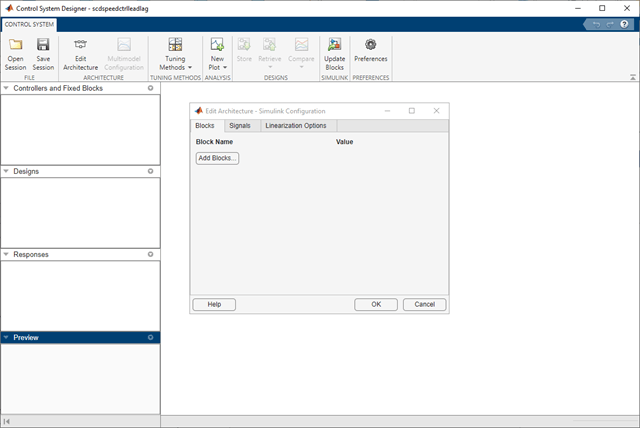

To open Control System Designer, in the Simulink model window, on the Apps tab, in the Apps gallery, click Control System Designer.

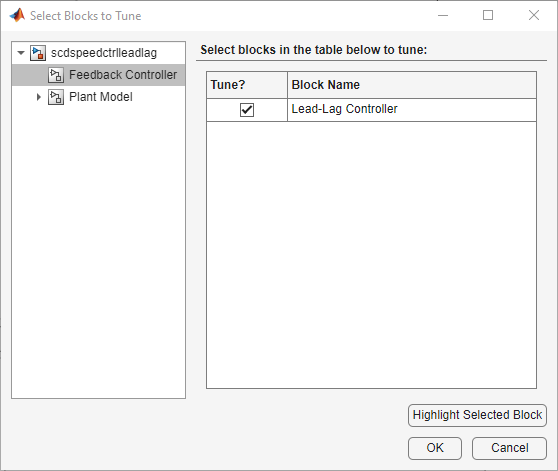

In the Edit Architecture dialog box, on the Blocks tab, click Add Blocks. Then, in the Select Blocks to Tune dialog box, click
Feedback Controller, and select

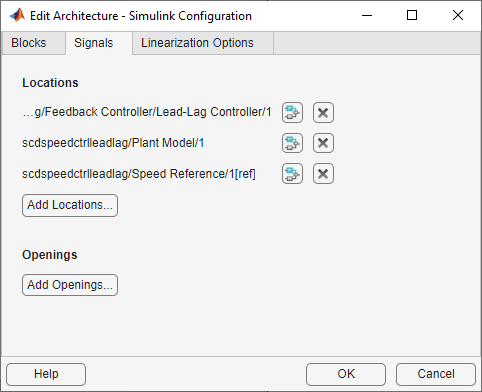

In the Edit Architecture dialog box, on the Signals tab, the analysis points defined in the Simulink model are automatically added as Locations.

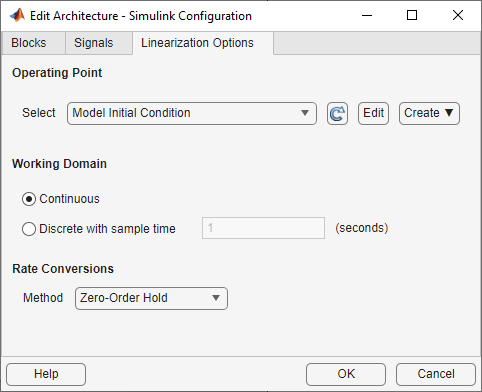

On the Linearization Options tab, in the Operating Point drop-down list, select
Model Initial Condition.
Create new plots to view the step responses while tuning the controllers. In Control System Designer, select New Plot > New Step.

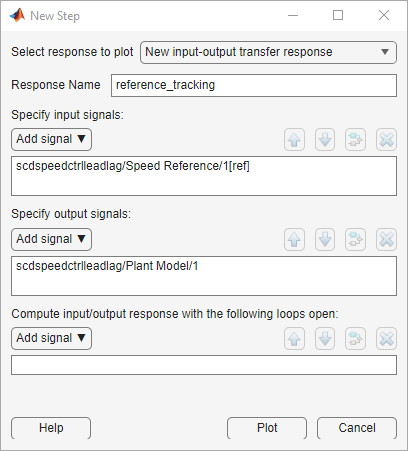

In the New Step dialog box, in the Select response to plot drop-down menu, select New input-output transfer response. Configure the response as shown in the following figure.
To view the response, click Plot.
The Control System Designer app contains four methods to tune a control system.

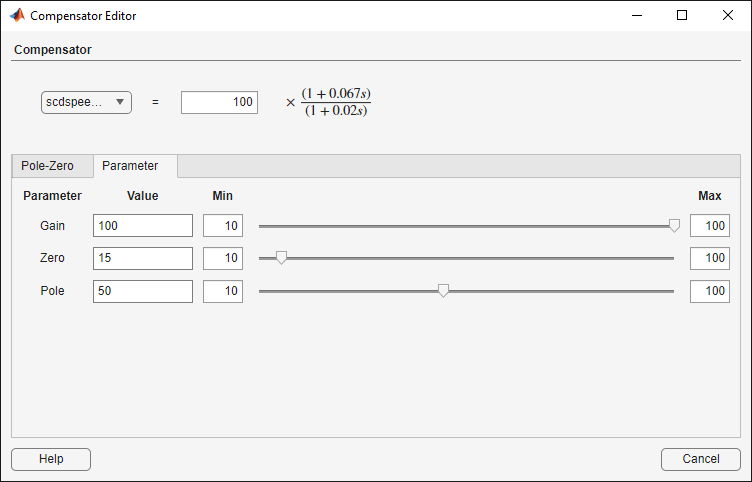

Manually tune the parameters of the
Lead-Lag Controller using the Compensator Editor. For more information, see Tune Simulink Blocks Using Compensator Editor.
Graphically tune the compensator poles, zeros, and gains using open-loop/closed-loop Bode, root locus, or Nichols editor plots. Click Tuning Methods, and select an editor under Graphical Tuning.
Optimize compensator parameters using both time-domain and frequency-domain design requirements (requires Simulink Design Optimization™ software). Click Tuning Methods, and select Optimization based tuning. For more information, see Enforcing Time and Frequency Requirements on a Single-Loop Controller Design (Simulink Design Optimization).
Compute initial compensator parameters using automated tuning based on parameters such as closed-loop time constants. Click Tuning Methods, and select either PID tuning, IMC tuning, Loop shaping (requires Robust Control Toolbox™ software), or LQG synthesis.
The design requirements for the reference step response in Single Loop Feedback/Prefilter Compensator Design can be met with the following Lead-Lag Controller block parameters.
Gain = 0.0075426
Zero Frequency (rad/s) = 2
Pole Frequency (rad/s) = 103.59
The following figure shows the closed-loop system response for these controller parameters.
To write the compensator parameters back to the Simulink model, click Update Blocks. You can then test your design on the nonlinear model.
