Validating Mask Parameters Using Constraints

A mask can contain parameters that accept user input values. You can provide input values for mask parameters using the mask dialog box. Mask parameter constraints help you to create validations on a mask parameter without having to write your own validation code. Constraints ensure that the input for the mask parameter is within a specified range. For example, consider a masked Gain block. You can set a constraint where the input value must be between 1 and 10. If you provide an input that is outside the specified range, an error displays.

Create and Associate a Constraint

Constraint Manager is embedded inside Mask Editor with attributes and options to create your constraints. Click Constraints tab to create or load an existing constraint.

Create a Constraint

You can create constraints according to your specification using the built-in attributes in the Constraint Manager. To create a constraint:

  1. In the Mask Editor, click Constraints tab and then click New in the toolstrip to create a constraint.

  2. Select attributes for the constraint in the Rule section. Based on the data type selection, the applicable rule attributes gets enabled/disabled.

    For more details on rule attributes, see Rule Attributes.

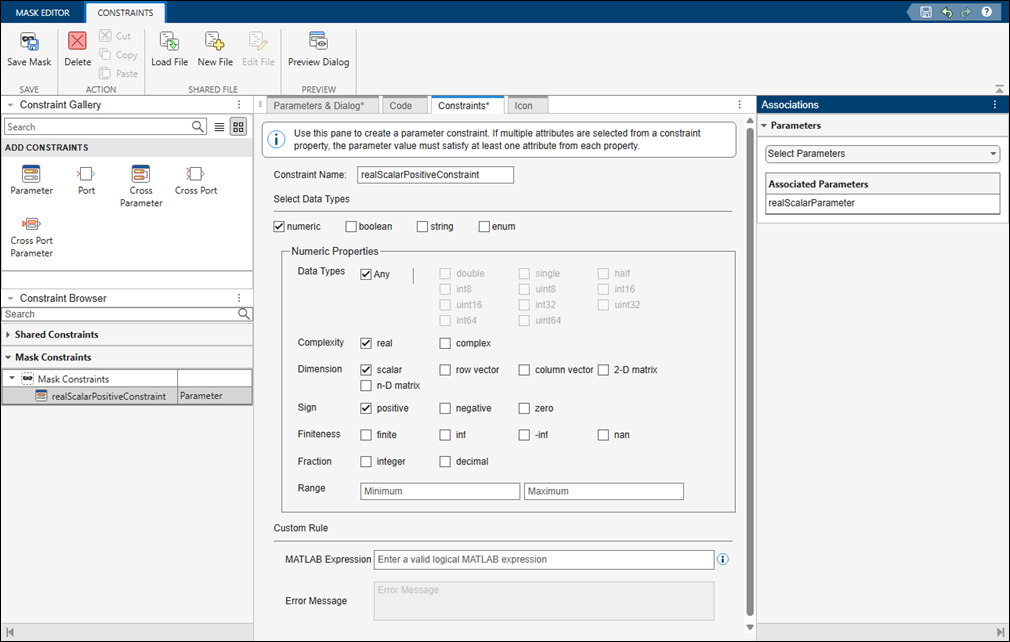

constraints

Associate the Constraint to a Mask Parameter

Once a constraint is created, you can associate it with any Edit or Combobox parameters in the Mask Editor.

  1. In the Mask Editor, select the parameter you want to associate a constraint with.

  2. Select the constraint name from the Constraint drop-down menu.

    Associate constraint

Validate the Constraint

To check if the parameter is in adherence with the associated constraint:

  1. Select a parameter with a constraint associated with it.

  2. Provide the input values for the parameter in the Property editor. If the input is outside the specification for the associated constraint, an error displays.

    validate constraint

Note

The parameter callback code gets executed after validating the parameter value against the associated constraint. If the validation fails, the callback code is not executed.

Create a Cross-Parameter Constraint

Cross-parameter constraints are applied among two or more Edit or Combobox type mask parameters. You can use a cross parameter constraint when you want to specify scenarios such as, Parameter1 must be greater than Parameter2.

  1. In the Mask Editor, click Constraints tab.

  2. Click Cross-Parameter Constraints.

  3. Click Create Constraint. A new cross-parameter constraint is created with a default name (Constraint_1). You can change the constraint name.

  4. Specify the following values for the new constraint:

    • Name – Specify a name for the constraint

    • MATLAB® Expression – Specify a valid MATLAB expression. This expression is evaluated during edit time and simulation

    • Error Message – Specify the error message to be displayed when the constraint rule is not met. If no error message is specified, a default error message displays.

Rule Attributes

Rule attributes to create constraints are shown in the table:

Rule AttributeAttribute ValueDescription

Data type

numeric, double, single, half, int8, uint8, int16, uint16, int32, uint32, int64, uint64 boolean, enum, string

Specify the acceptable data type of the mask parameter value. You can choose multiple data types. To validate the parameter value against a specific range, use the Minimum and Maximum properties because the Data Type property does not validate the parameter value against the range. For example, to validate the parameter value against the data type numeric and range 0 - 127, select numeric in Data Type and enter 0 and 127 in the Minimum and Maximum properties respectively.

Complexity

real, complex

Specify if the mask parameter value can be a real or complex number.

Dimensions

scalar, row vector, column vector, 2-D matrix, n-D matrix

Specify the acceptable dimensions for the mask parameter.

Sign

positive, negative, zero

Specify if the input value must be positive, negative, or zero.

Finiteness

finite, inf, -inf, NaN

Specify the acceptable finiteness of mask parameter value.

Fraction

integer, decimal

Specify if the input value must be an integer or decimal.

Range

Minimum, Maximum

Specify the acceptable range of mask parameter value.

Custom Rule

Valid MATLAB expression

Specify custom constraint for the mask parameter using a valid MATLAB expression. You can use the value token to parameterize the expression. During validation, the evaluated value of the parameter replaces the value token.

Error Message

Character vector

Specify a custom error message for the custom constraint. You can specify the error message as character vector or as a message catalog ID.

Support Constraints on Literal Edit Parameters

You can associate constraints to literal edit parameters. If the Evaluate option is not selected, Simulink takes a literal reading of the input entry as you type it in the mask parameter dialog box. For example, the IP address stored in a literal edit parameter is validated against a custom rule.
