Group Blocks into Subsystems Programmatically

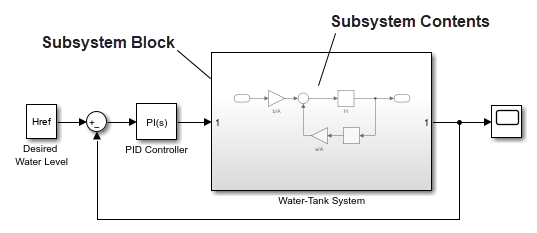

As a model increases in size and complexity, you can simplify it by grouping blocks into subsystems. A Subsystem block is a block that contains a subset of the contents of a model. For a brief introduction to subsystems, see Group Blocks into Subsystems. For more information about subsystems, see Subsystems.

The table shows examples of how to programmatically create and work with subsystems. For more syntaxes and examples, see the function documentation. For information about how to get model and block handles, see Get Handles and Paths. To configure subsystem port labels, see Configure Subsystem Port Labels.

The model, library, or subsystem in which you want to create or edit a subsystem must be loaded. For information about how to load models, libraries, and subsystems, see Create, Load, Open, Save, and Close Models Programmatically.

Action	Function	Example
Create a new subsystem.	add_block	In a model named myModel, create an empty subsystem called mySubsystem. Then, add a Gain block named myBlock to the subsystem. Create the subsystem by adding a new Subsystem block to the model. add_block("simulink/Ports & Subsystems/Subsystem", ... "myModel/mySubsystem"); Add a Gain block in the new subsystem. add_block("simulink/Math Operations/Gain", ... "myModel/mySubsystem/myBlock");
Create a new subsystem from an existing set of blocks.	Simulink.BlockDiagram.createSubsystem	Create a new subsystem from all the blocks in the root level of a model with the handle hModel. Get the handles of all blocks in the top level of the model. hBlocks = Simulink.findBlocks(hModel); Create the subsystem. Simulink.BlockDiagram.createSubsystem(hBlocks);
Copy the contents of a model, library, or component into an empty subsystem you specify.	Simulink.BlockDiagram.copyContentsToSubsystem	Copy the contents of a model with the handle hModel into an empty subsystem in another model. The empty subsystem has the handle hSub. Simulink.BlockDiagram.copyContentsToSubsystem(hModel,hSub)
Copy the contents of a subsystem into another model.	Simulink.SubSystem.copyContentsToBlockDiagram	Copy the contents of a subsystem represented by a Subsystem block with the handle hSub into a model with the handle hModel. Simulink.SubSystem.copyContentsToBlockDiagram(hSub,hModel)
Specify whether a subsystem is atomic. An atomic subsystem is treated as a unit when determining the execution order of block methods. For more information, see Specify Whether Subsystem Is Atomic.	set_param	Find out whether the Subsystem block with the handle hSub represents a subsystem that is atomic. Use the get_param function. get_param(hSub,"TreatAsAtomicUnit") Make the subsystem atomic. set_param(hSub,TreatAsAtomicUnit="on") Make the subsystem nonatomic. set_param(hSub,TreatAsAtomicUnit="off")
Specify subsystem read/write permissions.	set_param	Get the permissions of a subsystem represented by a Subsystem block with the handle hSub. Use the get_param function. get_param(hSub,"Permissions") Set the permissions to only permit viewing, not editing. set_param(hSub,Permissions="ReadOnly") Set the permissions to permit neither viewing nor editing. set_param(hSub,Permissions="NoReadOrWrite") Set the permissions to permit reading and writing. set_param(hSub,Permissions="ReadOrWrite")
Convert a subsystem into a model reference. The subsystem must be atomic.	Simulink.SubSystem.convertToModelReference	Convert a subsystem represented by a Subsystem block with the handle hSub into a model reference named myRef. Simulink.SubSystem.convertToModelReference(hSub,"myRef")
Replace a subsystem with its contents. Replacing atomic subsystems is not supported.	Simulink.BlockDiagram.expandSubsystem	Replace the subsystem represented by a Subsystem block with the handle hSub1 with an area that contains the subsystem contents. Simulink.BlockDiagram.expandSubsystem(hSub1) Replace the subsystem represented by a Subsystem block with the handle hSub2 with its contents without creating an area. Simulink.BlockDiagram.expandSubsystem(hSub2,CreateArea="Off")
Delete the contents of a subsystem.	Simulink.SubSystem.deleteContents	Delete the contents of a subsystem represented by a Subsystem block with the handle hSub. Simulink.SubSystem.deleteContents(hSub)
