TCP/IP Receive

Receive data over TCP/IP network from remote host

•

Libraries:
Simulink Coder Support Package for BeagleBone Blue Hardware / Communication
Simulink Support Package for Android Devices / Communication
Simulink Support Package for LEGO MINDSTORMS EV3 Hardware
Simulink Support Package for Raspberry Pi Hardware / Network

Description

Receive data from a remote host/another target hardware over a network. When you set the connection mode as server, you must provide the local port. The local port acts as the listening port of the TCP/IP server. When you set the block as a client, you must provide the remote address and the remote port of the TCP/IP server to receive data. The block accepts data either in blocking mode or in non-blocking mode. The Data port output contains the requested data at each time step. The Status port contains 0 or 1 to indicate whether the new data at the specified time step is received. The Status port value 1 indicates that the data from Data port is valid.

In blocking mode, the model blocks the execution while it waits for the requested data to be available.

At time step 1, the block requests four data values, and the TCP/IP receive buffer gets four data values. The execution runs.

At time step 2, the block requests for data again, but the TCP/IP receive buffer gets only three data values. The execution pauses until the buffer receives the fourth data value or the time-out value elapses. Then, the execution resumes.

At time step 3, the block requests for data, and the buffer receives five data values. The block returns the first four data values, and the remaining data value is used in the next receipt cycle.

In non-blocking mode, the model runs continuously.

At time step 1, the block requests data, and the buffer gets four data values. The block changes the Status port value to 0, indicating that new requested data is available. The Data port, at this point, contains the newly received data values. The block resets the Data port value to 0.

At time step 2, the block requests data again, but the buffer gets only three values. The block cannot return a value of 3 because the data size is specified as 4. Therefore, the block sets the Status port value to 1, indicating that there is no new data. All values on the Data port become 0. The buffer, at this point, has three data values. However, during this phase, the execution does not stop unlike in the blocking mode.

At time step 3, the buffer has five data values, and the block returns the first four data values in the order received and changes the Status port value to 0. The remaining data value is used in the next receipt cycle.

Examples

Connect Android Device to LEGO MINDSTORMS EV3

Connect an Android® device to a LEGO® MINDSTORMS® EV3 brick.

• Open Model

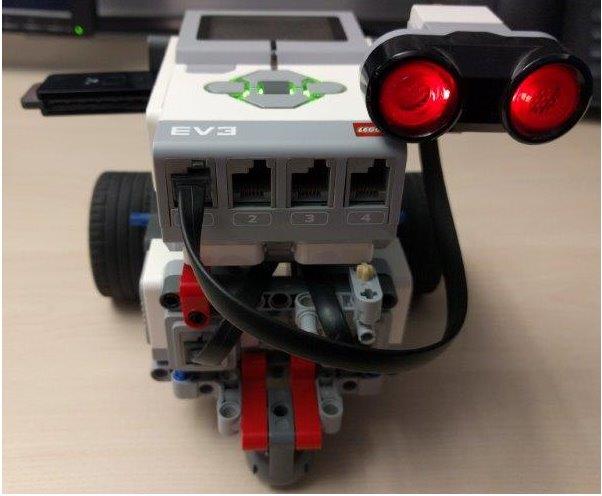

Control LEGO MINDSTORMS EV3 Robot Using Android Device

Use the Accelerometer sensor data of an Android® device to control the motion of a LEGO® MINDSTORMS® EV3 robot.

• Open Model

Ports

Output

Data — Output port to emit the data received

[Nx1] array

The block outputs data as an [Nx1] array.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Status — Output port to emit the data received status

1 | 0

This port shows the data received status. The status value 1 means successful receipt of data.

Data Types: int8

Parameters

Main Tab

Connection mode — The option to set the block as server or client

Server (default) | Client

Select the option to connect the block as TCP/IP server or TCP/IP client.

Local IP port — Local port acting as the listening port of the server

25000 (default) | scalar

Enter the local port number which acts as the listening port of the TCP/IP server. This parameter appears only when you set the Connection mode to Server

Remote IP address — Remote address of the server from which to receive data

127.0.0.1 (default) | scalar

Enter the remote server address from which to receive the data. This parameter appears only when you set the Connection mode to Client.

Remote IP port — Remote port of the server from which to receive data

25000 (default) | scalar

Enter the remote server port. This parameter appears only when you set the Connection mode to Client.

Data type — Data type to receive

uint8 (default) | double | single | int8 | uint16 | int16 | uint32 | int32 | boolean

Select the data type that is to be received from the remote host.

Data size(N) — Data size to receive

1 (default) | scalar

Enter the data size to be received from the remote host.

Sample time — The time frequency at which to receive data

0.1 (default) | scalar

Enter the time frequency at which to receive data.

Advanced Tab

Manually specify local IP port — Manually specify the number of the local IP port

off (default) | on

Allow manual specification of local IP port at which to receive data. This parameter appears only when you set the Connection mode to Client.

Local IP port — Local port at which to receive data

25000 (default) | scalar

Enter the local port of the client to receive data. This parameter appears only when you set the Connection mode to Client and select the check box Manually specify local IP port.

Wait until data received — Option to set for the block to wait for the data to be received

off (default) | on

Select this option to specify if the block waits for the data to be received. Selecting this check box enables the blocking mode.

Timeout in seconds — Time to wait until the data is received

0.1 (default) | scalar

Specify the time the block waits for the data to be received during each simulation time step. This field is unavailable, if you have not selected Wait until data received parameter. Enter ‘inf’ value in this parameter, if you want the block to wait indefinitely until it receives the data.

Version History

Introduced in R2017a
