Out Bus Element

Specify output of external port

•

Libraries:
Simulink / Ports & Subsystems
Simulink / Sinks
HDL Coder / Ports & Subsystems
HDL Coder / Sinks

Alternative Configurations of Out Bus Element Block:
Bus Element Out

Description

The Out Bus Element block provides a bus, signal, or message as the output of an external port.

To group multiple buses, signals, or messages into an output bus, use multiple Out Bus Element blocks that correspond with the same port. The Out Bus Element blocks combine the functionality of a Bus Creator block and an Outport block. All Out Bus Element blocks that correspond with the same port share a dialog box.

For interfaces that include buses composed of many bus elements, Out Bus Element blocks:

• Reduce signal line complexity and clutter in a block diagram.

• Allow you to more easily make incremental changes to the interface.

• Allow access to a bus element closer to the point of usage, avoiding the use of a Bus Creator and From block configuration.

To convert an interface to use Out Bus Element blocks, see Simplify Subsystem and Model Interfaces with Bus Element Ports.

The Out Bus Element block does not support mixing message and signal elements as inputs.

When you save output data to the workspace or a file, bus data defined by groups of root-level Out Bus Element blocks are logged along with root-level Outport block data.

Examples

Create Output Bus Element Port

In a model component, each output bus element port is represented by one or more Out Bus Element blocks.

Open the model named CreateOutputBusElementPort.

How you add a bus element port depends on whether you are in the model component or its parent.

To add an output bus element port to the currently open subsystem or model, add an Out Bus Element block. For example, double-click the canvas and start typing the block name. Then, select the Out Bus Element block.

To add an output bus element port to a Subsystem or Model block in the current component, click the edge of the block and select Create out bus port. For example, add an output bus element port to the Subsystem block.

To open the subsystem, double-click the Subsystem block.

The subsystem contains a default Out Bus Element block that corresponds to the output port you created on the Subsystem block. The block label uses default values for its two interactive text fields: the port name (OutBus) and the bus element (signal1).

To create another output bus element port from inside a model component, hold Ctrl while you drag an existing Out Bus Element block to a new location. Upon releasing the pointer, click New Port.

An Out Bus Element block with a unique port name appears.

In this example, the new port is named OutBus1.

To edit the port name, click the port name in the block label. Then, enter a new name.

Alternatively, set the Port name block parameter.

When multiple blocks are associated with the same port and you change the name of the port, all blocks that share the port update to reflect the new port name.

Output Signal with Bus Element Port

When you have only one Out Bus Element block for a port, you can pass the block input to the output port without nesting it in a bus.

Open and compile the example model named SignalOutputBusPort. To compile the model, on the Modeling tab of the Simulink Toolstrip, click Update Model or Run. Compiling the model updates the line styles, which you can use to visually identify buses.

A Subsystem block has an output port that passes a bus to a Scope block.

To view the Out Bus Element block that corresponds with the output port, open the subsystem.

In the subsystem, a Sine Wave block connects to an Out Bus Element block. Based on the block label, OutBus.signal1, the port output is a bus that contains an element named signal1. The dot in the block label indicates the bus hierarchy.

To pass the signal to the output port without nesting it in a bus, delete the second text field from the block label. For example, click signal1 to edit the text field.

Then, delete signal1. To commit the change, click elsewhere on the canvas.

To change the name of the port associated with the block, edit the first text field in the block label. For example, click OutBus to edit the text field.

Then, delete OutBus and enter SineWave. Ignore the placeholder text that shows where you can enter an element name.

Alternatively, set the Port name block parameter to the desired name for the port.

Navigate up to the parent model and recompile.

The output port of the Subsystem block now passes a signal rather than a bus to the Scope block.

Output Multiple Signals with One Port

To provide multiple signals to one output port, use an Out Bus Element block for each signal that you want in the output.

Open the model named BusOutputPort.

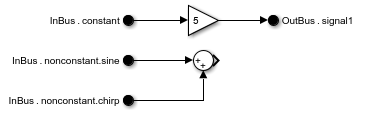

An Out Bus Element block writes to an element named signal1 of a port named OutBus.

To rename an element, edit the second text field in the block label. For example, double-click signal1 and enter constant*5.

Open the Property Inspector. Then, select the Out Bus Element block. Alternatively, double-click the block to open a dialog box.

The signal that the block selects is highlighted.

To add an element to the port with a block, select the element that you want to contain the new element. For this example, select OutBus. Then, click and select Add element with block.

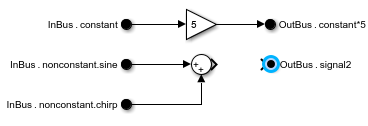

An Out Bus Element block labeled OutBus.signal2 appears in the block diagram.

In the Property Inspector or dialog box, double-click the name signal2 and enter sine+chirp.

The corresponding block label updates.

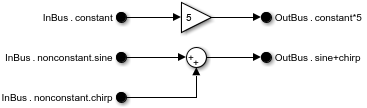

Connect the new Out Bus Element block to the unconnected port of the Sum block.

All element names associated with the same output port must be unique. The software does not support overlapping writes to an output element.

Create Multilevel Bus Hierarchy at Output Port

The default Out Bus Element block nests the output element in a bus. When the output port has many elements, organize the elements in nested buses within the output bus.

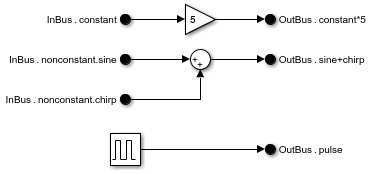

Open the model named OutputBusPortHierarchy, which contains three Out Bus Element blocks.

Each dot in an Out Bus Element block label indicates a new level of hierarchy. To nest an element under another bus in the output bus, edit the second text field of the corresponding block label and add a dot after each nested bus in the hierarchy.

For example, click the label constant*5. Then, change it to NestedBus.constant*5.

This label creates an intermediate bus named NestedBus that contains constant*5.

To add elements to the new bus, you can similarly edit other block labels. Alternatively, double-click an Out Bus Element block or open the Property Inspector and select an Out Bus Element block.

To move elements within the output bus, select the elements to move and drag them to a new location. For example, drag the signal named sine+chirp into the nested bus.

The block label indicates the new hierarchy.

In the Property Inspector or dialog box, you can add elements under an existing element in the bus hierarchy. Select the element that you want to contain a new element. Then, click and select Add element with block or Add element without block.

When an Out Bus Element block represents the element that you want to contain a new element, to avoid conflicts, your only option is Add element without block.

Define Output Bus Without Extra Blocks or Bus Objects

Since R2024a

To specify the elements of a bus at a bus element port, you can:

• Add elements to the interface with or without adding blocks to the block diagram.

• Define the bus hierarchy with a Simulink.Bus object.

This example shows how to define a bus at an output bus element port without a Simulink.Bus object.

In a blank model or subsystem, add an Out Bus Element block.

Open the Property Inspector. Then, select the Out Bus Element block. Alternatively, double-click the block to open a dialog box.

To add an element to the port without a block, select the element that you want to contain the new element. For example, select OutBus. Then, click , and select Add element without block.

The new element is nested under the previously selected element. The block diagram is unchanged.

The element name is gray and italicized to indicate that an Out Bus Element block does not represent the element directly.

By adding elements without adding blocks, you can define the entire output bus hierarchy with only one Out Bus Element block and without a Simulink.Bus object.

Optionally:

• Add more elements with or without blocks.

• Rename elements by double-clicking their names and entering new names.

• Reorder elements by dragging them to new locations.

• Specify element attributes by pausing on an element name then clicking the pencil button that appears. Alternatively, click an attribute summary next to an element name to edit the attributes.

Defining the elements at an output port is useful when you create a file for reuse. The interface definition validates the hierarchy and properties of the output bus that the component provides.

Suppose you add elements without blocks then decide that you want Out Bus Element blocks to represent the elements. To add a block for an output element, click an element name. Then, click . For example, add a block for the element named Chirp.

In the block diagram, an Out Bus Element block labeled OutBus.NestedBus.Chirp appears.

You cannot add blocks for elements that an existing Out Bus Element block represents. For example, you cannot add a block for NestedBus. The Out Bus Element block labeled OutBus.NestedBus.Chirp already represents NestedBus because NestedBus is the parent bus for Chirp.

Customize Appearance of In Bus Element and Out Bus Element Blocks

Use compact labels and block colors to customize the appearance of In Bus Element and Out Bus Element blocks.

Open the model named BusElementPortBlocks.

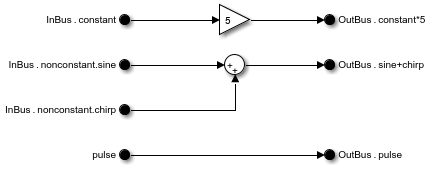

The model contains:

• In Bus Element blocks that represent two unique bus element ports named InBus and pulse

• Out Bus Element blocks that represent a bus element port named OutBus

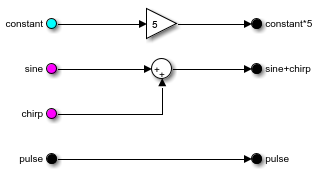

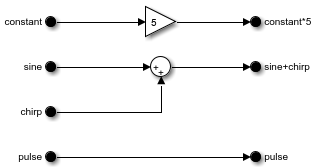

To reduce the size of the block labels, display only the leaf element names. Select an In Bus Element or Out Bus Element block, pause on the ellipsis, and in the action bar, click Compact Notation.

All In Bus Element and Out Bus Element blocks in the block diagram display shortened block labels that use only the leaf element name.

To show the full block label, in the action bar, you can click Expanded Notation. For this example, keep the compact block labels.

Block colors can help differentiate unique ports when the block labels are compact.

Open the Property Inspector. Then, select an In Bus Element block that corresponds with the port named InBus. For example, select the block labeled constant. Alternatively, double-click the block to open a dialog box.

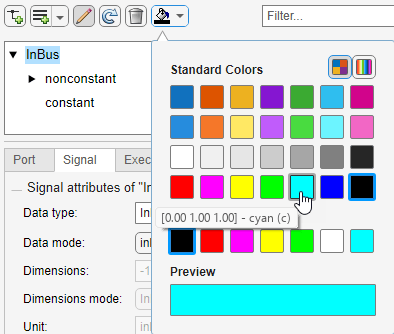

In the Property Inspector or dialog box, select InBus. Then, click Set color and select a color from the menu.

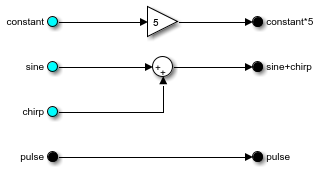

The blocks related to the port use the chosen color.

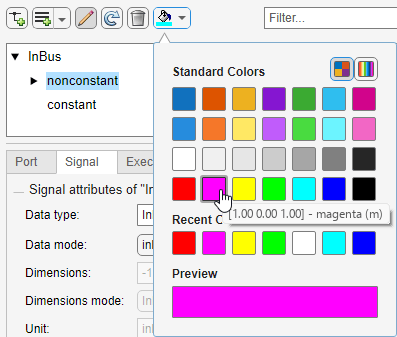

To identify the blocks that select the nested bus named nonconstant or its elements, select nonconstant. Then, click Set color and select a different color from the menu.

The blocks related to the nested bus use the chosen color.

Extended Examples

Simulink Bus Capabilities

Work with buses in components, simplify component interfaces, and streamline common bus workflows.

• Open Live Script

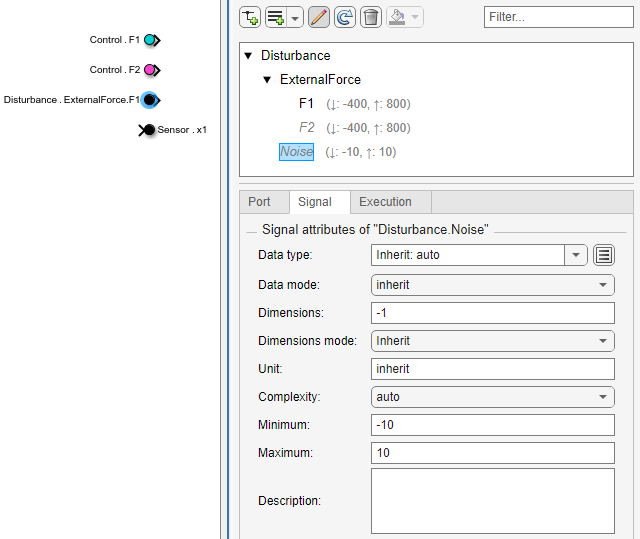

Programmatically Create Bus Element Ports

Add blocks for bus element ports and specify element attributes using MATLAB^® functions.

• Open Live Script

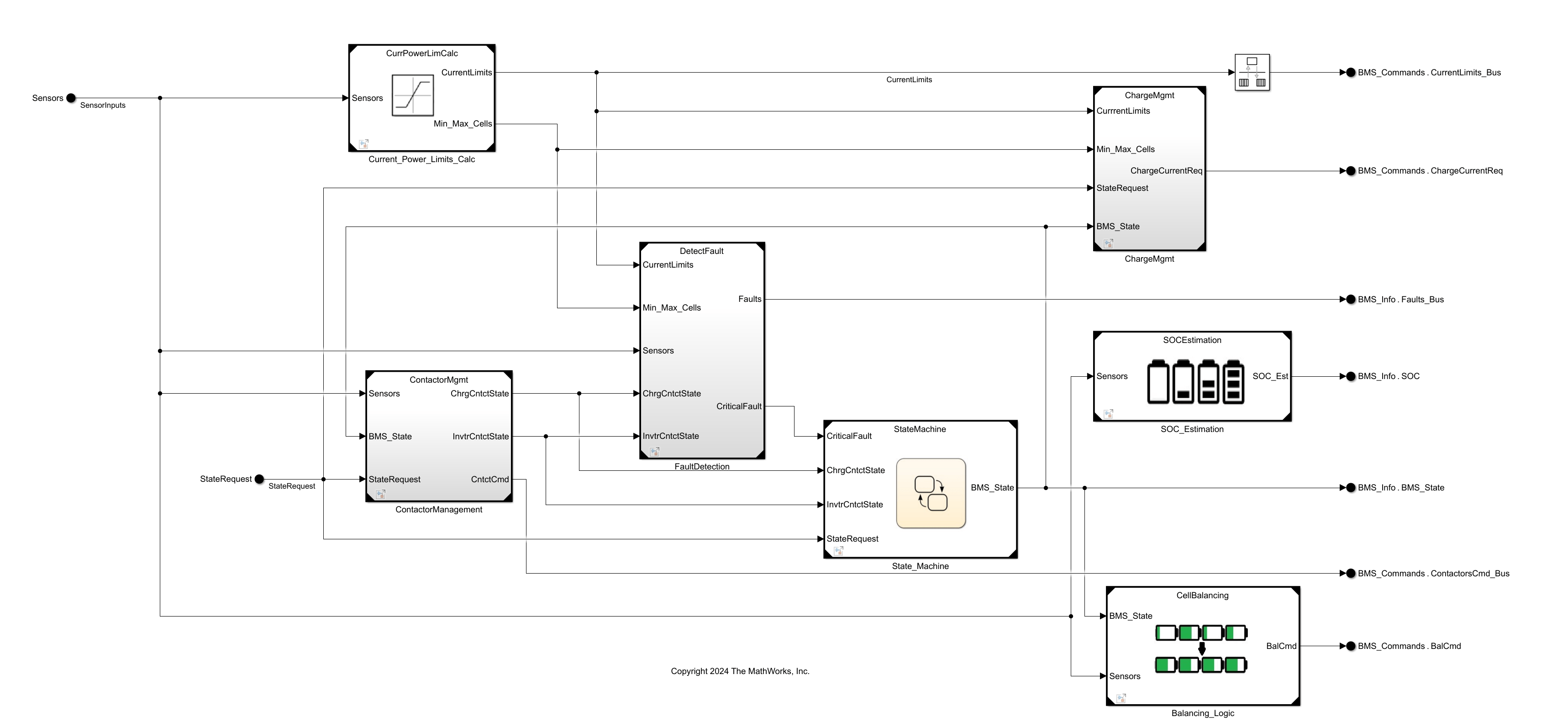

Use Model-Based Design To Build a Battery Management System

Best practices for collaborative design in large-scale modeling. The example shows how development teams can build a battery management system (BMS) that uses a Nickel-Manganese-Cobalt (NMC) cell with a capacity of 27 Ah. The example describes MathWorks® tools, tips, and processes that you and your teams can use in these development stages:

• Open Live Script

Ports

Input

Port_1 — Full or partial output for external port

scalar | vector | matrix | array | bus

Connect a bus, signal, or message to pass to the corresponding external output port of the parent subsystem or model.

When multiple Out Bus Element blocks are associated with the same external port, the input to this block is an element of the bus at the output port. The second text field in the block label specifies the element name.

When one Out Bus Element block is associated with the external port, the input to this block is passed directly to the output port or nested in a bus at the output port. To pass the input of the block to the output port without nesting it in a bus, delete the text from the second text field in the block label.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | string | Boolean | fixed point | enumerated | bus
Complex Number Support: Yes

Parameters

To interactively edit the parameters of the block, the corresponding port, and the elements at the port, double-click the block or open the Property Inspector and select the block.

Port name — Name of output port

OutBus (default) | port name

Specify a port name that is not already in use by another block or port within the system. The name appears on the parent Subsystem or Model block.

To change the port name from the Simulink^® Editor, edit the first text field of the block label.

Multiple blocks can provide output for the same port as long as each block provides output for a unique element of the port.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	PortName
Values:	"OutBus" (default) | port name in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/PortBlock",PortName="myBus")

Element — Optional bus element specification

signal1 (default) | element path

To create a bus at the output port, specify an element in the second text field of the block label.

How you specify the element depends on where the element is in the bus hierarchy.

• For an element at the top level of the output bus, specify the element name, for example, constant.

• For an element in a nested bus, specify the name of the nested bus, intermediary nested buses, and the leaf signal separated by dots, for example, sinusoidal.sine. This element path does not include the top-level bus.

Each output element must be unique and must not overlap with other elements of the port. For example, for a nested bus, use one Out Bus Element block that corresponds with the nested bus or multiple Out Bus Element blocks that correspond with the nested bus elements.

To output a signal, message, or bus without creating a bus, delete the text from the second text field of the block label.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	Element
Values:	"signal1" (default) | element path in quotes

Example: set_param("mymodel/Subsystem1/PortBlock",Element="constant")

Example: set_param("mymodel/Subsystem1/PortBlock",Element="sinusoidal.sine")

Port number — Position of port on parent block

1 (default) | real integer

Specify the order in which the port that corresponds to the block appears on the parent Subsystem or Model block.

• If you add a block that creates another port, the port number is the next available number.

• Deleting all blocks associated with a port deletes the port. Other ports are renumbered so that they are sequential and do not skip any numbers.

• Specifying a port number that exceeds the number of ports creates a port for that number and for any skipped sequential numbers.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	Port
Values:	"1" (default) | real integer in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/PortBlock",Port="5")

Set color — Block background color

Black (default) | White | Red | Green | Blue | Cyan | Magenta | Yellow | Gray | Light Blue | Orange | Dark Green | More Colors

Specify the block background color. This specification sets the color of blocks associated with selected elements, or of all blocks associated with the port if you do not select any elements.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	BackgroundColor
Values:	"black" (default) | "white | "red" | "green" | "blue" | "cyan" | "magenta" | "yellow" | "gray" | "lightBlue" | "orange" | "darkGreen" | "[r,g,b]" where r, g, and b, are the red, green, blue values of the color in the range 0.0 to 1.0

Example: set_param("mymodel/Subsystem1/PortBlock",BackgroundColor="magenta")

Filter — Filter for displayed bus elements

no default

Specify a search term to use for filtering a long list of bus elements. Do not enclose the search term in quotation marks. The filter does a partial string search and supports regular expressions. To use a regular expression character as a literal, include an escape character (\). For example, to use a question mark, type sig\?1.

Attributes

To specify attributes, such as data type, pause on the name of a bus, signal, or message. Then, click the pencil button that appears.

When you specify attributes, they appear next to the name of the bus, signal, or message. Click an attribute summary to edit the attributes of the bus, signal, or message.

Data type — Data type

Inherit: auto (default) | double | single | half | int8 | uint8 | int16 | uint16 | ...

The data type of a bus, signal, or message can be inherited, specified directly, or expressed as a data type object such as a Simulink.NumericType object.

You can specify any of these options:

• Inherited data type

• Built-in Simulink data type — For example, specify single or uint8. See Data Types Supported by Simulink.

• Fixed-point data type — Use the fixdt function. For example, specify fixdt(1,16,0).

• Enumerated data type — Use the name of the type preceded by Enum:. For example, specify Enum: myEnumType.

• Bus data type — Use the name of the Simulink.Bus object preceded by Bus:. For example, specify Bus: myBusObject.

• Value type — Use the name of the Simulink.ValueType object preceded by ValueType:. For example, specify ValueType: windVelocity.

• Custom data type — Use a MATLAB expression that specifies the type. For example, you can specify a Simulink.NumericType object whose DataTypeMode property is set to a value other than "Fixed-point: unspecified scaling".

When you specify a Simulink.ValueType object as the data type, some parameters of the element are ignored. For example, the Min, Max, and Unit parameters are ignored. The software uses the corresponding properties of the Simulink.ValueType object. For example, suppose you set Unit to ft/s for an element. When the Data type of the element specifies a ValueType object that has m/s as its unit, the element uses m/s instead of ft/s.

When you specify a Simulink.Bus object as the data type, some parameters of the element are reset to their default values. For example, the Min, Max, and Unit parameters are reset. The software uses the corresponding properties of the Simulink.BusElement objects in the Simulink.Bus object instead.

Tips

When you specify a bus using a Simulink.Bus object or a Simulink.ValueType object with a Simulink.Bus object data type, the Property Inspector and block dialog box display the elements defined by the corresponding Simulink.BusElement objects.

Dependencies

To specify a Simulink.Bus object as the data type of a bus at a bus element port, an Out Bus Element block must represent the bus or an element of the bus.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	OutDataTypeStr
Values:	"Inherit: auto" (default) | "double" | "single" | "half" | "int8" | "uint8" | "int16" | "uint16" | "int32" | "uint32" | "int64" | "uint64" | "boolean" | "fixdt(1,16)" | "fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" | "string" | "Enum: <class name>" | "Bus: <object name>" | "ValueType: <object name>" | data type expression in quotes

Example: set_param("mymodel/myBus.signal1",OutDataTypeStr="int32")

Data mode — Data mode of output element

inherit (default) | signal | message

Specify the data mode of the output element.

• inherit — Output element inherits its data mode.

• signal — Output element must be a signal or a bus that contains signals.

• message — Output element must be a message or a bus that contains messages.

Dependencies

To enable this parameter, the block must be at the top level of a model.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	DataMode
Values:	"inherit" (default) | "signal" | "message"

Example: set_param("mymodel/OutBus",DataMode="signal")

Bus virtuality — Virtual or nonvirtual bus

inherit (default) | virtual | nonvirtual

Specify whether to inherit the bus virtuality or define the bus as virtual or nonvirtual. For more information, see Composite Interface Guidelines.

This parameter determines whether the blocks inherit or define the bus virtuality. If the blocks define the bus virtuality and the virtuality of the input bus does not match, compiling the model produces an error.

Dependencies

To enable this parameter, Data type must resolve to a Simulink.Bus object. For example, set Data type to a Simulink.Bus object or a Simulink.ValueType object that specifies a Simulink.Bus object as its data type.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	BusVirtuality
Values:	"inherit" (default) | "virtual" | "nonvirtual"

Example: set_param("mymodel/myBus.nestedBus",BusVirtuality="nonvirtual")

Dimensions — Signal dimensions

-1 (default) | integer | 1-by-2 vector of integers

Specify the dimensions of a signal.

• -1 — The signal can have any dimensions.

• N — The signal must be a vector of size N.

• [R C] — The signal must be a matrix having R rows and C columns.

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to 1. The software uses the dimensions specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the dimensions specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	PortDimensions
Values:	"-1" (default) | integer in quotes | 1-by-2 vector of integers in quotes
Data Types:	char | string

Example: set_param("mymodel/myBus.signal1",PortDimensions="[1 3]")

Dims mode — Option to allow only variable-size or fixed-size signals

Inherit (default) | Fixed | Variable

Specify the type of signals allowed.

• Inherit — Allow variable-size and fixed-size signals.

• Variable — Allow only variable-size signals.

• Fixed — Allow only fixed-size signals. Do not allow variable-size signals.

When the signal is variable-sized, the Dimensions parameter specifies the maximum dimensions of the signal.

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to Inherit. The software uses the dimensions modes specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the dimensions mode specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	VarSizeSig
Values:	"Inherit" (default) | "No" | "Yes"

Example: set_param("mymodel/Subsystem1/myBus.signal1",VarSizeSig="No")

Unit — Physical unit

inherit (default) | unit supported by Simulink software

Specify the physical unit of the signal. For a list of supported units, in the MATLAB Command Window, enter showunitslist.

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to inherit. The software uses the units specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the unit specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	Unit
Values:	"inherit" (default) | unit supported by Simulink software in quotes
Data Types:	char | string

Example: set_param("mymodel/myBus.signal1",Unit="m/s")

Complexity — Numeric type

auto (default) | real | complex

Specify the numeric type of the signal. To choose the numeric type of the signal, select auto. Otherwise, choose a real or complex signal type.

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to auto. The software uses the complexity specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the complexity specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	SignalType
Values:	"auto" (default) | "real" | "complex"

Example: set_param("mymodel/myBus.signal1",SignalType="real")

Minimum — Minimum value

[] (default) | scalar

Lower value of the range that the software checks.

This number must be a finite real double scalar value.

The software uses this value to perform:

• Simulation range checking. For more information, see Specify Signal Ranges.

• Automatic scaling of fixed-point data types.

• Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to []. The software uses the minimum values specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the minimum value specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	OutMin
Values:	"[]" (default) | scalar in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/myBus.signal1",OutMin="0")

Maximum — Maximum value

[] (default) | scalar

Upper value of the range that the software checks.

This number must be a finite real double scalar value.

The software uses this value to perform:

• Simulation range checking. For more information, see Specify Signal Ranges.

• Automatic scaling of fixed-point data types.

• Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to []. The software uses the maximum values specified by the Simulink.BusElement objects in the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the maximum value specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	OutMax
Values:	"[]" (default) | scalar in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/myBus.signal1",OutMax="2")

Description — Description of bus, signal, or message

no default

Use the description to document information about the bus, signal, or message, such as where it is used. This information does not affect processing.

Dependencies

• When Data type specifies a Simulink.Bus object, the software sets this parameter to "" (empty). The software uses the description specified by the Simulink.Bus object.

• When Data type specifies a Simulink.ValueType object, the software ignores the value of this parameter. The software uses the description specified by the Simulink.ValueType object instead.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	Description
Values:	"" (default) | description in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/myBus.signal1",Description="This signal is used by...")

Output name — Name of output bus, signal, or message in parent subsystem or model

no default

Since R2023a

Specify the name of the output bus, signal, or message in the parent subsystem or model. The name appears as a label on the line.

To display propagated labels for individual lines or all lines in a model, see Display Propagated Signal Labels.

Dependencies

• To enable this parameter:

  • The block must be at the top level of a model.

  • The element must be the top-level bus, signal, or message.

• When you set Data type to a Simulink.Bus object, the software sets this parameter to "" (empty).

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	OutputName
Values:	"" (default) | output name in quotes
Data Types:	char | string

Example: set_param("mymodel/OutBus",OutputName="model-output")

Initial output — Initial output for parent conditionally executed subsystem

[] (default) | scalar | structure

Since R2024b

For conditionally executed subsystems, specify the block output before the subsystem executes and while the subsystem is disabled. To inherit the initial output value from the input signal, apply both of these default settings:

• Set Initial output to [].

• Set Output when disabled to held.

The software attempts to inherit the output value from the input signal. If the input signal is not a valid source for the initial output value, the initial output value [] is treated as double(0). For more information, see Conditional Subsystem Initial Output Values.

For information about specifying an initial condition structure, see Specify Initial Conditions for Bus Elements.

Tips

If the conditional subsystem is driving a Merge block, you do not need to specify an initial condition for the Out Bus Element block. For more information, see Underspecified initialization detection.

Dependencies

To enable this parameter:

• The block must be at the top level of a conditionally executed subsystem or model.

• The element must be the top-level bus, signal, or message.

Limitations

• This block does not support an initial output of inf or NaN.

• When the input is a virtual bus, an Initial output value of [] is treated as double(0).

• When the input contains a nonvirtual bus, Initial output does not support nonzero scalar values.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	InitialOutput
Values:	'[]' (default) | scalar in quotes | structure in quotes
Data Types:	char | string

Example: set_param("mdl/condss/Output",InitialOutput="3")

Output when disabled — Output when parent conditionally executed subsystem is disabled

held (default) | reset

Since R2024b

Specify what happens to the block output when the parent conditionally executed subsystem is disabled.

• held — The output is held when the subsystem is disabled.

• reset — The output is reset to the value given by Initial output when the subsystem is disabled.

Tips

• If the output of the parent subsystem connects to a Merge block, do not set this parameter to reset.

• For an Out Bus Element block in a function-call subsystem, this parameter is meaningful only if the Function-Call Subsystem block connects to a state in a Stateflow^® chart. For more information, see Bind a Function-Call Subsystem to a State (Stateflow).

Dependencies

To enable this parameter:

• The block must be at the top level of a conditional subsystem with valid enabling and disabling semantics. For example, an Out Bus Element block in an enabled subsystem supports this parameter, but an Out Bus Element block in a triggered subsystem does not support this parameter.

• The element must be the top-level bus, signal, or message.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	OutputWhenDisabled
Values:	"held" (default) | "reset"

Example: set_param("mdl/condss/Output",InitialOutput="3",OutputWhenDisabled="reset")

Execution Attributes

To specify execution attributes, such as sample time, pause on the name of a bus, signal, or message. Then, click Specify execution attributes .

Sample time — Sample time

-1 (default) | scalar

Specify the discrete interval between sample time hits or specify another type of sample time, such as continuous (0) or inherited (-1). For more options, see Types of Sample Time.

By default, the signal inherits its sample time.

Programmatic Use

To programmatically set the attribute value for an element, use the set_param function. Specify the element as the model name or subsystem block path, a forward slash, and the port name or bus element path. For a bus element port, the bus element path provides the hierarchy from the top-level bus to the target element, separating each name in the hierarchy with a dot.

Parameter:	SampleTime
Values:	"-1" (default) | scalar in quotes
Data Types:	char | string

Example: set_param("mymodel/Subsystem1/myBus.signal1",SampleTime="0.01")

Block Characteristics

Data Types	Boolean | bus | double | enumerated | fixed point | half | integer | single | string
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	yes
Zero-Crossing Detection	no

Alternative Configurations

Bus Element Out — Specify output that connects to external port

The Bus Element Out block differs from the Out Bus Element block by name only.

Libraries:
Simulink / Signal Routing
HDL Coder / Signal Routing

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

This block can be used to simplify subsystem bus interfaces when you use the block in subsystems that generate HDL code, but it is not included in the hardware implementation.

To learn more about using buses for HDL code generation, see Buses (HDL Coder) and Use Buses to Improve Readability of Model and Generate HDL Code (HDL Coder).

This block supports code generation for Simulink.ValueType object. For more information about value types, see Specify Common Set of Signal Properties as Value Type.

Data Type Support

This block supports these data types for HDL code generation:

Input Port	Dimension	Fixed-Point	Floating-Point	Built-in Integers	Boolean	Complex Signal
Port_1	Scalar Vector Matrix	Yes	Half Single Double	Yes	Yes	Yes

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced in R2017a

R2024b: Specify initial conditions

In conditionally executed subsystems and models, Out Bus Element blocks now support initial conditions on the top-level element. For nonbus signals, set Initial output to a value with the same dimensions and complexity as the signal. For buses, set Initial output to a MATLAB structure with fields that have the same names and hierarchy as the elements of the bus. To specify what happens to the block output when the subsystem is disabled, use the Output when disabled block parameter.

R2024a: Specify elements without bus objects or additional blocks

When a subsystem or model has an output bus element port, you do not need to specify a Simulink.Bus object or add Out Bus Element blocks to:

• Add elements to the output port.

• Specify attributes of the elements at the output port.

To add an element to the port, select the element that you want to contain the new element. Then, click and select one of these options:

• Add element with block — Add an element to the port and an Out Bus Element block that represents the element.

• Add element without block — Add an element to the port without adding an Out Bus Element block that represents the element.

To programmatically add elements to the output bus without adding blocks to the block diagram, use the Simulink.Bus.addElementToPort function.

R2024a: Select new options when dragging block to new location

When you press Ctrl and drag an Out Bus Element block to a new location, you receive clearer options:

• New Port — Create a port.

• New Element — When the dragged block represents an element of the port and not the full port, add an element to the port.

In previous releases, you receive two options:

• Create New Port — Create a port.

• Use Existing Port — When the dragged block represents an element of the port and not the full port, add an element to the port. Otherwise, create a port.

R2024a: Adding or copying block creates a port

These actions now consistently create a port:

• Double-click the canvas. Then, start typing Out Bus Element, and select the block from the menu.

• Copy and paste an Out Bus Element block.

In previous releases, these actions create a port or add an element to a port.

R2023a: Specify name of port output

For an Out Bus Element block at the top level of a model, use the Output name block parameter to specify the name of the top-level bus, signal, or message that appears in a parent subsystem or model.

R2023a: Property Inspector supports Out Bus Element blocks

The Property Inspector supports In Bus Element and Out Bus Element blocks.

R2023a: Diagnostic messages link to related Out Bus Element blocks

Warning and error messages for In Bus Element and Out Bus Element blocks now link to the corresponding block in the block diagram, helping you quickly find the source of the warning or error. In previous releases, warning and error messages refer to a hidden block and do not provide a link.
