plomb

Lomb-Scargle periodogram

Description

[pxx,f] = plomb(x,t) returns the Lomb-Scargle power spectral density (PSD) estimate, pxx, of a signal, x, that is sampled at the instants specified in t. t must increase monotonically but need not be uniformly spaced. All elements of t must be nonnegative. pxx is evaluated at the frequencies returned in f.

  • If x is a vector, it is treated as a single channel.

  • If x is a matrix, then plomb computes the PSD independently for each column and returns it in the corresponding column of pxx.

x or t can contain NaNs or NaTs. These values are treated as missing data and excluded from the spectrum computation.

example

[pxx,f] = plomb(x,fs) treats the case where the signal is sampled uniformly, at a rate fs, but has missing samples. Specify the missing data using NaNs.

example

[pxx,f] = plomb(___,fmax) estimates the PSD up to a maximum frequency, fmax, using any of the input arguments from previous syntaxes. If the signal is sampled at N non-NaN instants, and Δt is the time difference between the first and the last of them, then pxx is returned at round(fmax / fmin) points, where fmin = 1/(4 × N × ts) is the smallest frequency at which pxx is computed and the average sample time is ts = Δt/(N – 1). fmax defaults to 1/(2 × ts), which for uniformly sampled signals corresponds to the Nyquist frequency.

[pxx,f] = plomb(___,fmax,ofac) specifies an integer oversampling factor, ofac. The use of ofac to interpolate or smooth a spectrum resembles the zero-padding technique for FFT-based methods. pxx is again returned at round(fmax/fmin) frequency points, but the minimum frequency considered in this case is 1/(ofac × N × ts). ofac defaults to 4.

example

[pxx,fvec] = plomb(___,fvec) estimates the PSD of x at the frequencies specified in fvec. fvec must have at least two elements. The second output argument is the same as the input fvec.

You cannot specify a maximum frequency or an oversampling factor if you use this syntax.

example

[___] = plomb(___,spectrumtype) specifies the normalization of the periodogram.

  • Set spectrumtype to 'psd', or leave it unspecified, to obtain pxx as a power spectral density.

  • Set spectrumtype to 'power' to get the power spectrum of the input signal.

  • Set spectrumtype to 'normalized' to get the standard Lomb-Scargle periodogram, which is scaled by two times the variance of x.

example

[___,pth] = plomb(___,'Pd',pdvec) returns the power-level threshold, pth, such that a peak with a value larger than pth has a probability pdvec of being a true signal peak and not the result of random fluctuations. pdvec can be a vector. Every element of pdvec must be greater than 0 and smaller than 1. Each row of pth corresponds to an element of pdvec. pth has the same number of channels as x. This option is not available if you specify the output frequencies in fvec.

example

[pxx,w] = plomb(x) returns the PSD estimate of x evaluated at a set of evenly spaced normalized frequencies, w, spanning the Nyquist interval. Use NaNs to specify missing samples. All of the above options are available for normalized frequencies. To access them, specify an empty array as the second input.

example

plomb(___) with no output arguments plots the Lomb-Scargle periodogram PSD estimate in the current figure window.

example

Examples

collapse all

The Lomb-Scargle method can handle signals that have been sampled unevenly or have missing samples.

Generate a two-channel sinusoidal signal sampled at 1 kHz for about 0.5 s. The sinusoid frequencies are 175 Hz and 400 Hz. Embed the signal in white noise with variance σ2=1/4.

Fs = 1000;
f0 = 175;
f1 = 400;

t = 0:1/Fs:0.5;

wgn = randn(length(t),2)/2;

sigOrig = sin(2*pi*[f0;f1]*t)' + wgn;

Compute and plot the periodogram of the signal. Use periodogram with the default settings.

periodogram(sigOrig,[],[],Fs)

axisLim = axis;
title('Periodogram')

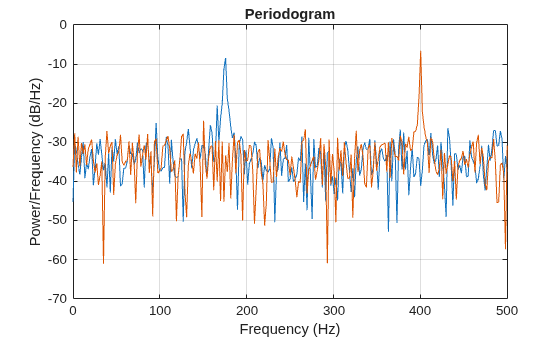

Figure contains an axes object. The axes object with title Periodogram, xlabel Frequency (Hz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line.

Use plomb with the default settings to estimate and plot the PSD of the signal. Use the axis limits from the previous plot.

plomb(sigOrig,t)

axis(axisLim)
title('Lomb-Scargle')

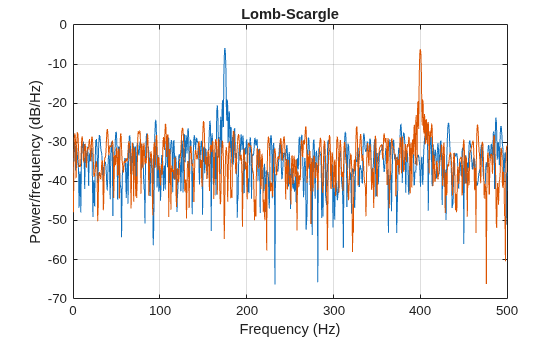

Figure contains an axes object. The axes object with title Lomb-Scargle, xlabel Frequency (Hz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line.

Suppose the signal is missing 10% of the original samples. Place NaNs in random locations to simulate the missing data points. Use plomb to estimate and plot the PSD of the signal with missing samples.

sinMiss = sigOrig;

misfrac = 0.1;
nTime = length(t)*2;

sinMiss(randperm(nTime,round(nTime*misfrac))) = NaN;

plomb(sinMiss,t)

axis(axisLim)
title('Missing Samples')

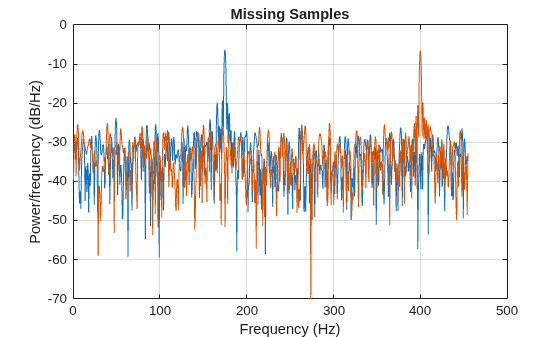

Figure contains an axes object. The axes object with title Missing Samples, xlabel Frequency (Hz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line.

Sample the original signal, but make the sampling nonuniform by adding jitter (uncertainty) to the time measurements. The first instant continues to be at zero. Use plomb to estimate and plot the PSD of the nonuniformly sampled signal.

tirr = t + (1/2-rand(size(t)))/Fs/2;
tirr(1) = 0;

sinIrreg = sin(2*pi*[f0;f1]*tirr)' + wgn;

plomb(sinIrreg,tirr)

axis(axisLim)
title('Nonuniform Sampling')

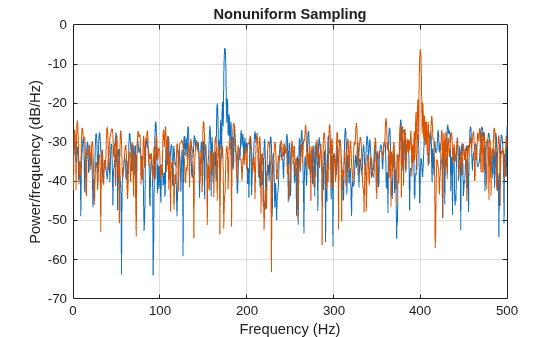

Figure contains an axes object. The axes object with title Nonuniform Sampling, xlabel Frequency (Hz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line.

Galileo Galilei observed the motion of Jupiter's four largest satellites during the winter of 1610. When the weather allowed, Galileo recorded the satellites' locations. Use his observations to estimate the orbital period of one of the satellites, Callisto.

Callisto's angular position is measured in minutes of arc. Missing data due to cloudy conditions are specified using NaNs. The first observation is dated January 15. Generate a datetime array of observation times.

yg = [10.5 NaN 11.5 10.5 NaN NaN NaN -5.5 -10.0 -12.0 -11.5 -12.0 -7.5 ...
    NaN NaN NaN NaN 8.5 12.5 12.5 10.5 NaN NaN NaN -6.0 -11.5 -12.5 ...
    -12.5 -10.5 -6.5 NaN 2.0 8.5 10.5 NaN 13.5 NaN 10.5 NaN NaN NaN ...
    -8.5 -10.5 -10.5 -10.0 -8.0]';

obsv = datetime(1610,1,14+(1:length(yg)));

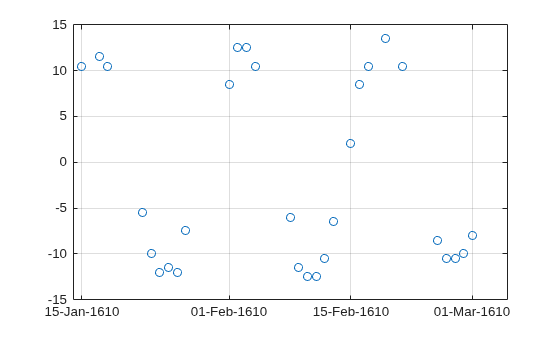

plot(yg,'o')

ax = gca;
nights = [1 18 32 46];
ax.XTick = nights;
ax.XTickLabel = char(obsv(nights));
grid

Figure contains an axes object. The axes contains a line object which displays its values using only markers.

Estimate the power spectrum of the data using plomb. Specify an oversampling factor of 10. Express the resulting frequencies in inverse days.

[pxx,f] = plomb(yg,obsv,[],10,'power');
f = f*86400;

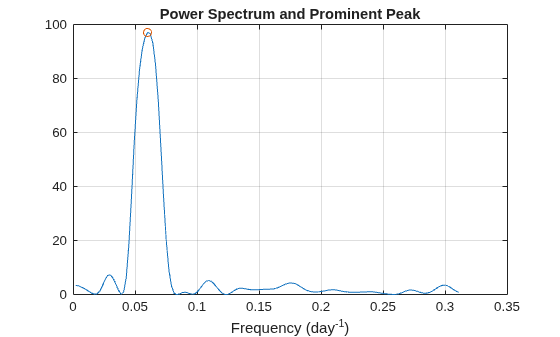

Use findpeaks to determine the location of the only prominent peak of the spectrum. Plot the power spectrum and show the peak.

[pk,f0] = findpeaks(pxx,f,'MinPeakHeight',10);

plot(f,pxx,f0,pk,'o')
xlabel('Frequency (day^{-1})')
title('Power Spectrum and Prominent Peak')
grid

Figure contains an axes object. The axes object with title Power Spectrum and Prominent Peak, xlabel Frequency (day toThePowerOf - 1 baseline ) contains 2 objects of type line. One or more of the lines displays its values using only markers

Determine Callisto's orbital period (in days) as the inverse of the frequency of maximum energy. The result differs by less than 1% from the value published by NASA.

Period = 1/f0
Period =
16.6454
NASA = 16.6890184;
PercentDiscrep = (Period-NASA)/NASA*100
PercentDiscrep =
-0.2613

Galileo Galilei discovered Jupiter's four largest satellites in January of 1610 and recorded their locations every clear night until March of that year. Use Galileo's data to find the orbital period of Callisto, the outermost of the four satellites.

Galileo's observations of Callisto's angular position are in minutes of arc. There are several gaps due to cloudy conditions. Generate a duration array of observation times.

t = [0 2 3 7 8 9 10 11 12 17 18 19 20 24 25 26 27 28 29 31 32 33 35 37 ...
    41 42 43 44 45]';
td = days(t);

yg = [10.5 11.5 10.5 -5.5 -10.0 -12.0 -11.5 -12.0 -7.5 8.5 12.5 12.5 ...
    10.5 -6.0 -11.5 -12.5 -12.5 -10.5 -6.5 2.0 8.5 10.5 13.5 10.5 -8.5 ...
    -10.5 -10.5 -10.0 -8.0]';

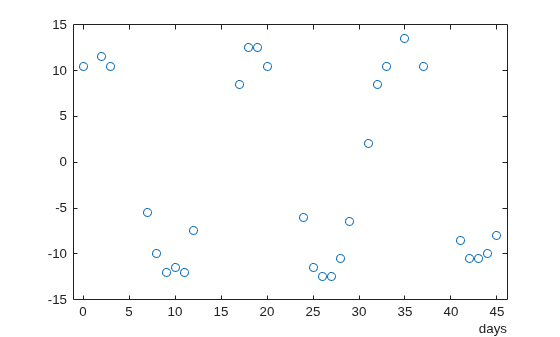

plot(td,yg,'o')

Figure contains an axes object. The axes contains a line object which displays its values using only markers.

Use plomb to compute the periodogram of the data. Estimate the power spectrum up to a frequency of 0.5day-1. Specify an oversampling factor of 10. Choose the standard Lomb-Scargle normalization.

oneday = seconds(days(1));

[pxx,f] = plomb(yg,td,0.5/oneday,10,'normalized');

f = f*oneday;

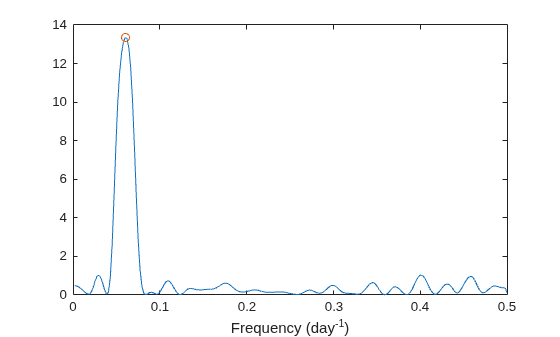

The periodogram has one clear maximum. Name the peak frequency f0. Plot the periodogram and annotate the peak.

[pmax,lmax] = max(pxx);
f0 = f(lmax);

plot(f,pxx,f0,pmax,'o')
xlabel('Frequency (day^{-1})')

Figure contains an axes object. The axes object with xlabel Frequency (day toThePowerOf - 1 baseline ) contains 2 objects of type line. One or more of the lines displays its values using only markers

Use linear least squares to fit to the data a function of the form

y(t)=A+Bcos2πf0t+Csin2πf0t.

The fitting parameters are the amplitudes A, B, and C.

ft = 2*pi*f0*t;

ABC = [ones(size(ft)) cos(ft) sin(ft)] \ yg
ABC = 3×1

    0.4243
   10.4444
    6.6137

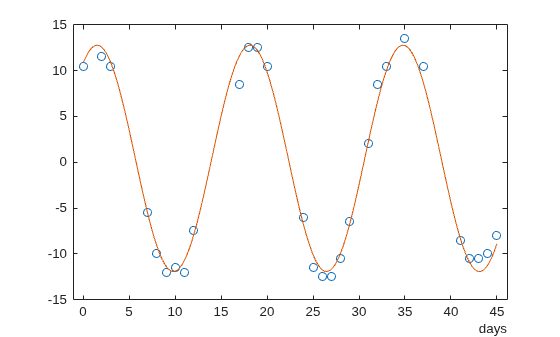

Use the fitting parameters to construct the fitting function on a 200-point interval. Plot the data and overlay the fit.

x = linspace(t(1),t(end),200)';
fx = 2*pi*f0*x;

y = [ones(size(fx)) cos(fx) sin(fx)] * ABC;

plot(td,yg,'o',days(x),y)

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Sample a 0.8 Hz sinusoid at 1 Hz for 100 s. Embed the sinusoid in white noise with a variance of 1/100. Reset the random number generator for repeatable results.

f0 = 0.8;

rng default
wgn = randn(1,100)/10;

ts = 1:100;
s = sin(2*pi*f0*ts) + wgn;

Compute and plot the power spectral density estimate up to the sample rate. Specify an oversampling factor of 10.

plomb(s,ts,1,10)

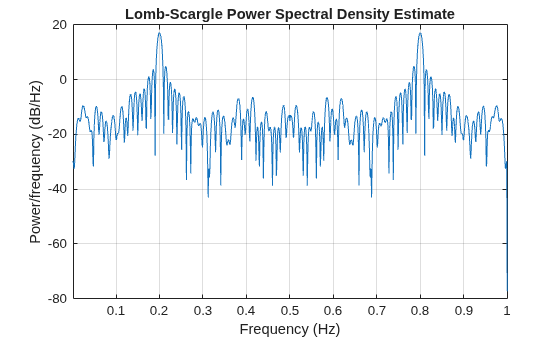

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Frequency (Hz), ylabel Power/frequency (dB/Hz) contains an object of type line.

There is aliasing because the frequency of the sinusoid is greater than the Nyquist frequency.

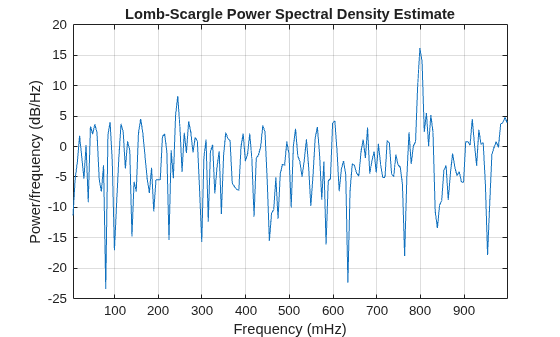

Repeat the calculation, but now sample the sinusoid at random times. Include frequencies up to 1 Hz. Specify an oversampling factor of 2. Plot the PSD.

tn = sort(100*rand(1,100));
n = sin(2*pi*f0*tn) + wgn;

ofac = 2;

plomb(n,tn,1,ofac)

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Frequency (mHz), ylabel Power/frequency (dB/Hz) contains an object of type line.

The aliasing disappears. The irregular sampling increases the effective sample rate by shrinking some time intervals.

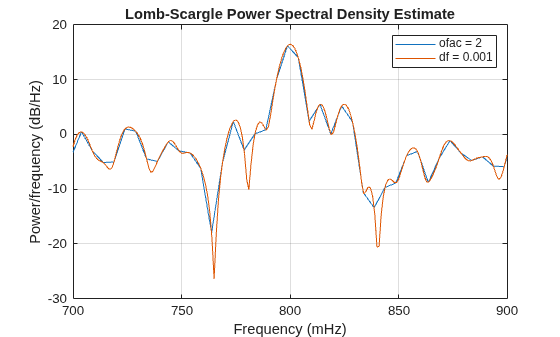

Zoom in on the frequencies around 0.8 Hz. Use a fine grid with a spacing of 0.001 Hz. You cannot specify an oversampling factor or a maximum frequency in this case.

df = 0.001;
fvec = 0.7:df:0.9;

hold on
plomb(n,tn,fvec)
legend('ofac = 2','df = 0.001')

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Frequency (mHz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line. These objects represent ofac = 2, df = 0.001.

Generate N=1024 samples of white noise with variance σ=1, given a sample rate of 1 Hz. Compute the power spectrum of the white noise. Choose the Lomb-Scargle normalization and specify an oversampling factor ofac=15. Reset the random number generator for repeatable results.

rng default

N = 1024;
t = (1:N)';
wgn = randn(N,1);

ofac = 15;
[pwgn,f] = plomb(wgn,t,[],ofac,'normalized');

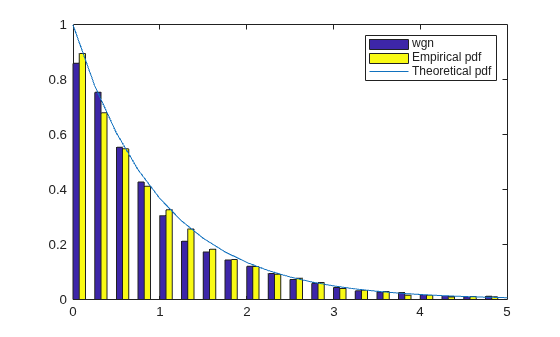

Verify that the Lomb-Scargle power spectrum estimate of white noise has an exponential distribution with unit mean. Plot a histogram of the values of pwgn and a histogram of a set of exponentially distributed random numbers generated using the distribution function f(z|1)=e-z. To normalize the histograms, recall that the total number of periodogram samples is N×ofac/2. Specify a bin width of 0.25. Overlay a plot of the theoretical distribution function.

dx = 0.25;
br = 0:dx:5;

Nf = N*ofac/2;

hpwgn = histcounts(pwgn,br)';

hRand = histcounts(-log(rand(Nf,1)),br)';

bend = br(1:end-1);

bar(bend,[hpwgn hRand]/Nf/dx,'histc')
hold on
plot(br,exp(-br))
legend('wgn','Empirical pdf','Theoretical pdf')
hold off

Figure contains an axes object. The axes object contains 3 objects of type patch, line. These objects represent wgn, Empirical pdf, Theoretical pdf.

Embed in the noise a sinusoidal signal of frequency 0.1 Hz. Use a signal-to-noise ratio of ξ=0.01. Specify the sinusoid amplitude, x0, using the relation x0=σ2ξ. Compute the power spectrum of the signal and plot its histogram alongside the empirical and theoretical distribution functions.

SNR = 0.01;
x0 = sqrt(2*SNR);
sigsmall = wgn + x0*sin(2*pi/10*t);

[psigsmall,f] = plomb(sigsmall,t,[],ofac,'normalized');

hpsigsmall = histcounts(psigsmall,br)';

bar(bend,[hpsigsmall hRand]/Nf/dx,'histc')
hold on
plot(br,exp(-br))
legend('sigsmall','Empirical pdf','Theoretical pdf')
hold off

Figure contains an axes object. The axes object contains 3 objects of type patch, line. These objects represent sigsmall, Empirical pdf, Theoretical pdf.

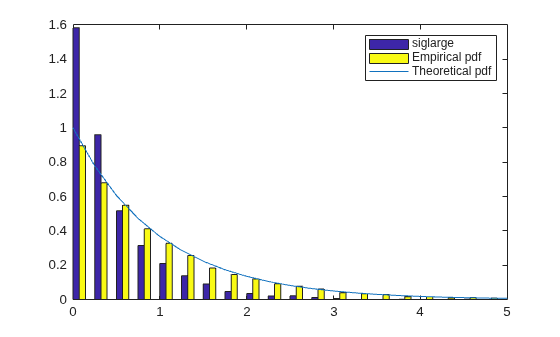

Repeat the calculation using ξ=1. The distribution now differs noticeably.

SNR = 1;
x0 = sqrt(2*SNR);
siglarge = wgn + x0*sin(2*pi/10*t);

[psiglarge,f] = plomb(siglarge,t,[],ofac,'normalized');

hpsiglarge = histcounts(psiglarge,br)';

bar(bend,[hpsiglarge hRand]/Nf/dx,'histc')
hold on
plot(br,exp(-br))
legend('siglarge','Empirical pdf','Theoretical pdf')
hold off

Figure contains an axes object. The axes object contains 3 objects of type patch, line. These objects represent siglarge, Empirical pdf, Theoretical pdf.

Generate 100 samples of a sinusoidal signal at a sample rate of 1 Hz. Specify an amplitude of 0.75 and a frequency of 0.6/2π0.096Hz. Embed the signal in white noise of variance 0.902. Reset the random number generator for repeatable results.

rng default

X0 = 0.75;
f0 = 0.6;
vr = 0.902;

Nsamp = 100;
t = 1:Nsamp;
X = X0*cos(f0*(1:Nsamp))+randn(1,Nsamp)*sqrt(vr);

Discard 10% of the samples at random. Plot the signal.

X(randperm(Nsamp,Nsamp/10)) = NaN;

plot(t,X,'o')

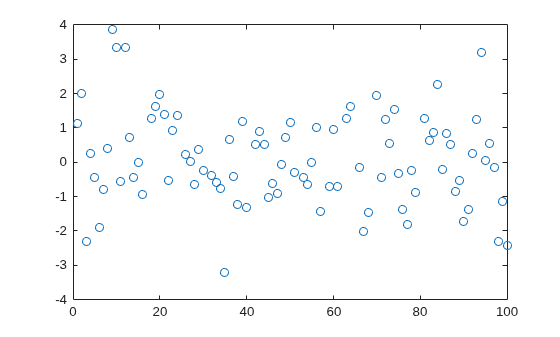

Figure contains an axes object. The axes contains a line object which displays its values using only markers.

Compute and plot the normalized power spectrum. Annotate the levels that correspond to false-alarm probabilities of 50%, 10%, 1%, and 0.01%. If you generate many 90-sample white noise signals with variance 0.902, then half of them have one or more peaks higher than the 50% line, 10% have one or more peaks higher than the 10% line, and so on.

Pfa = [50 10 1 0.01]/100;
Pd = 1-Pfa;

[pxx,f,pth] = plomb(X,1:Nsamp,'normalized','Pd',Pd);

plot(f,pxx,f,pth*ones(size(f')))
xlabel('f')
text(0.3*[1 1 1 1],pth-.5,[repmat('P_{fa} = ',[4 1]) num2str(Pfa')])

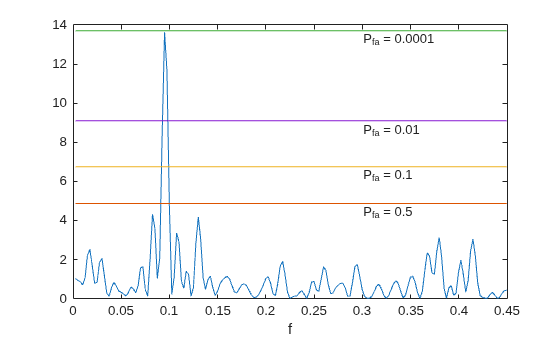

Figure contains an axes object. The axes object with xlabel f contains 9 objects of type line, text.

In this case, the peak is high enough that only about 0.01% of the possible signals can attain it.

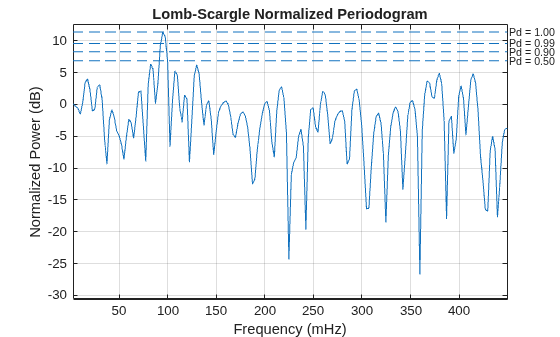

Use plomb with no output arguments to repeat the calculation. The plot is now logarithmic, and the levels are drawn in terms of detection probabilities.

plomb(X,1:Nsamp,'normalized','Pd',Pd)

Figure contains 2 axes objects. Axes object 1 is empty. Axes object 2 with title Lomb-Scargle Normalized Periodogram, xlabel Frequency (mHz), ylabel Normalized Power (dB) contains 5 objects of type line.

When given a data vector as the only input, plomb estimates the power spectral density using normalized frequencies.

Generate 128 samples of a sinusoid of normalized frequency π/2 rad/sample embedded in white Gaussian noise of variance 1/100.

t = (0:127)';
x = sin(2*pi*t/4);
x = x + randn(size(x))/10;

Estimate the PSD using the Lomb-Scargle procedure. Repeat the calculation with periodogram.

[p,f] = plomb(x);
[pper,fper] = periodogram(x);

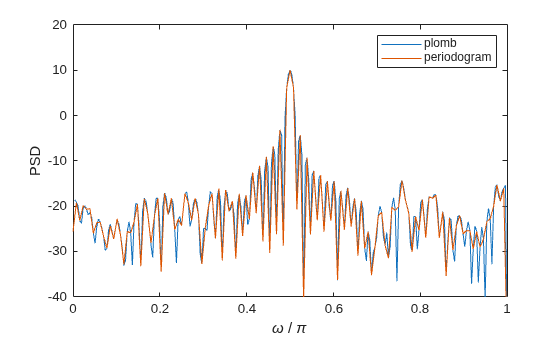

Plot the PSD estimates in decibels. Verify that the results are equivalent.

plot(f/pi,pow2db(p))
hold on
plot(fper/pi,pow2db(pper))

axis([0 1 -40 20])
xlabel('\omega / \pi')
ylabel('PSD')
legend('plomb','periodogram')

Figure contains an axes object. The axes object with xlabel omega blank / blank pi, ylabel PSD contains 2 objects of type line. These objects represent plomb, periodogram.

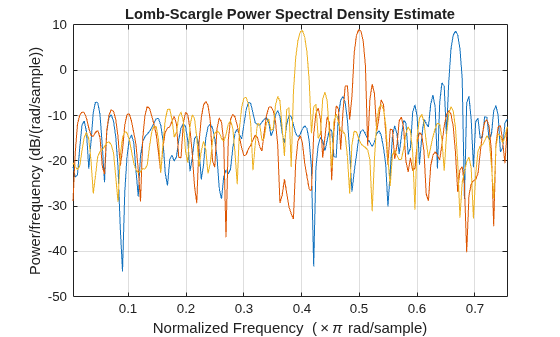

Estimate the Lomb-Scargle PSD of a three-channel signal composed of sinusoids. Specify the frequencies as 2π/3 rad/sample, π/2 rad/sample, and 2π/5 rad/sample. Add white Gaussian noise of variance 1/100. Use plomb with no output arguments to compute and plot the PSD estimate in decibels.

x3 = [sin(2*pi*t/3) sin(2*pi*t/4) sin(2*pi*t/5)];
x3 = x3 + randn(size(x3))/10;

figure
plomb(x3)

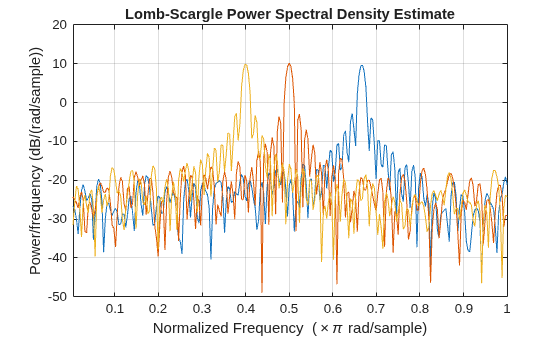

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Power/frequency (dB/(rad/sample)) contains 3 objects of type line.

Compute the PSD estimate again, but now remove 25% of the data at random.

x3(randperm(numel(x3),0.25*numel(x3))) = NaN;

plomb(x3)

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Power/frequency (dB/(rad/sample)) contains 3 objects of type line.

If you do not have a time vector, use NaN's to specify missing samples in a signal.

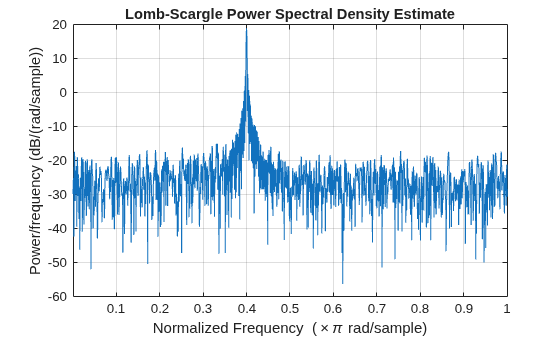

Generate 1024 samples of a sinusoid of normalized frequency 2π/5 rad/sample embedded in white noise of variance 1/100. Estimate the power spectral density using the Lomb-Scargle procedure. Use plomb with no output arguments to plot the estimate.

t = (0:1023)';
x = sin(2*pi*t/5);
x = x + randn(size(x))/10;

[pxx,f] = plomb(x);

plomb(x)

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Power/frequency (dB/(rad/sample)) contains an object of type line.

Remove every other sample by assigning NaN's. Use plomb to compute and plot the PSD. The periodogram peaks at the same frequency because the time axis is unchanged.

xnew = x;
xnew(2:2:end) = NaN;

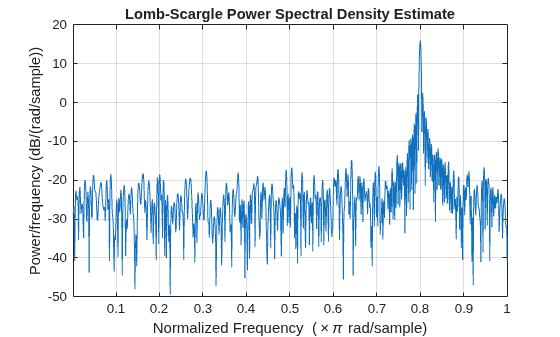

plomb(xnew)

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Power/frequency (dB/(rad/sample)) contains an object of type line.

Remove every other sample by downsampling. The function now estimates the periodicity at twice the original frequency. This is probably not the result you want.

xdec = x(1:2:end);

plomb(xdec)

Figure contains an axes object. The axes object with title Lomb-Scargle Power Spectral Density Estimate, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Power/frequency (dB/(rad/sample)) contains an object of type line.

Input Arguments

collapse all

Input signal, specified as a vector or matrix. If x is a vector, it is treated as a single channel. If x is a matrix, then plomb computes the PSD estimate independently for each column and returns it in the corresponding column of pxx. x can contain NaNs. NaNs are treated as missing data and are excluded from the spectrum computation.

Data Types: single | double

Time instants, specified as a nonnegative real vector, a datetime array, or a duration array. t must increase monotonically but need not be uniformly spaced. t can contain NaNs or NaTs. These values are treated as missing data and excluded from the spectrum computation.

Data Types: single | double | datetime | duration

Sample rate, specified as a positive scalar. The sample rate is the number of samples per unit time. If the unit of time is seconds, the sample rate has units of hertz.

Data Types: single | double

Maximum frequency, specified as a positive scalar. fmax can be higher than the Nyquist frequency.

Data Types: single | double

Oversampling factor, specified as a positive integer scalar.

Data Types: single | double

Input frequencies, specified as a vector. fvec must have at least two elements.

Data Types: single | double

Power spectrum scaling, specified as one of 'psd', 'power', or 'normalized'. Omitting spectrumtype, or specifying 'psd', returns the power spectral density estimate. Specifying 'power' scales each estimate of the PSD by the equivalent noise bandwidth of the window. Specify 'power' to obtain an estimate of the power at each frequency. Specifying 'normalized' scales pxx by two times the variance of x.

Probabilities of detection, specified as the comma-separated pair consisting of 'Pd' and a scalar or a vector of real values between 0 and 1, exclusive. The probability of detection is the probability that a peak in the spectrum is not due to random fluctuations.

Data Types: single | double

Output Arguments

collapse all

Lomb-Scargle periodogram, returned as a vector or matrix. When the input signal, x, is a vector, then pxx is a vector. When x is a matrix, the function treats each column of x as an independent channel and computes the periodogram of each channel.

Frequencies, returned as a vector.

Data Types: single | double

Normalized frequencies, returned as a vector.

Data Types: single | double

Power-level thresholds, returned as a vector or matrix. The power-level threshold is the amplitude that a peak in the spectrum must exceed so it can be ruled out (with probability pdvec) that the peak is due to random fluctuations. Each row of pth corresponds to an element of pdvec. pth has the same number of channels as x.

Data Types: single | double

More About

collapse all

Lomb-Scargle Periodogram

The Lomb-Scargle periodogram lets you find and test weak periodic signals in otherwise random, unevenly sampled data.

Consider N observations, xk, taken at times tk, where k = 1, …, N. The Lomb-Scargle periodogram is defined by [2]

PLS(f)=12σ2{[k=1N(xkx¯)cos(2πf(tkτ))]2k=1Ncos2(2πf(tkτ))+[k=1N(xkx¯)sin(2πf(tkτ))]2k=1Nsin2(2πf(tkτ))},

where

x¯=1Nk=1Nxk

and

σ2=1N1k=1N(xkx¯)2

are respectively the mean and the variance of the data.

The time offset, τ, is chosen as

tan(2(2πf)τ)=k=1Nsin(2(2πf)tk)k=1Ncos(2(2πf)tk)

to guarantee the time invariance of the computed spectrum. Any shift tktk + T in the time measurements results in an identical shift in the offset: ττ + T. Moreover, the choice ensures that "a maximum in the periodogram occurs at the same frequency which minimizes the sum of squares of the residuals of the fit of a sine wave to the data." [4] The offset depends only on the measurement times and vanishes when the times are equally spaced.

If the input signal consists of white Gaussian noise, then PLS(f) follows an exponential probability distribution with unit mean [3].

References

[1] Horne, James H., and Sallie L. Baliunas. "A Prescription for Period Analysis of Unevenly Sampled Time Series." Astrophysical Journal. Vol. 302, 1986, pp. 757–763.

[2] Lomb, Nicholas R. "Least-Squares Frequency Analysis of Unequally Spaced Data." Astrophysics and Space Science. Vol. 39, 1976, pp. 447–462.

[3] Press, William H., and George B. Rybicki. "Fast Algorithm for Spectral Analysis of Unevenly Sampled Data." Astrophysical Journal. Vol. 338, 1989, pp. 277–280.

[4] Scargle, Jeffrey D. "Studies in Astronomical Time Series Analysis. II. Statistical Aspects of Spectral Analysis of Unevenly Spaced Data." Astrophysical Journal. Vol. 263, 1982, pp. 835–853.

Extended Capabilities

Version History

Introduced in R2014b
