getTFMap

Get short-time Fourier transform for time-frequency labeling

Since R2026a

Syntax

s = getTFMap(opts,x)

s = getTFMap(opts,x,Fs)

[s,f,t] = getTFMap(___)

Description

s = getTFMap(opts,x) gets the short-time Fourier transform (STFT) of the signal x using spectrogram options opts.

s = getTFMap(opts,x,Fs) also specifies the sample rate Fs of the input signal.

[s,f,t] = getTFMap(___) also returns the frequencies and times associated with the STFT of x for any of the previous syntaxes.

Examples

Get STFT from Signal for Time-Frequency Labeling

Generate a signal that consists of a voltage-controlled oscillator and four Gaussian atoms. The signal is sampled at 14 kHz for 2 seconds. Plot the spectrogram of the signal.

Fs = 14000;
t = (0:1/Fs:2)';
gaussFun = @(A,x,mu,f) exp(-(x-mu).^2/(2*0.01^2)).*sin(2*pi*f.*x)*A';
atoms = gaussFun([1 1 1 1]/10,t,[0.2 0.5 1 1.75],1e3*[2 6 2 5]);
vcoIn = vco(chirp(t+.1,0,t(end),3).*exp(-2*(t-1).^2),[0.1 0.4]*Fs,Fs);
vcoOut = vcoIn + 0.1*atoms;

Create a set of spectrogram options for time-frequency labeling. Control the spectrogram resolution by leakage. Specify a leakage $\beta =0.2$ and an overlap of 99%.

beta = 0.2;
opts = labelSpectrogramOptions("leakage", ...
    Leakage=40*(1-beta),Overlap=99);

Get the STFT map to be used in time-frequency labeling.

[s,w,n] = getTFMap(opts,vcoOut);

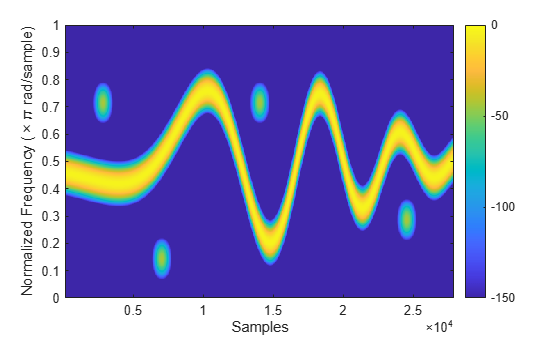

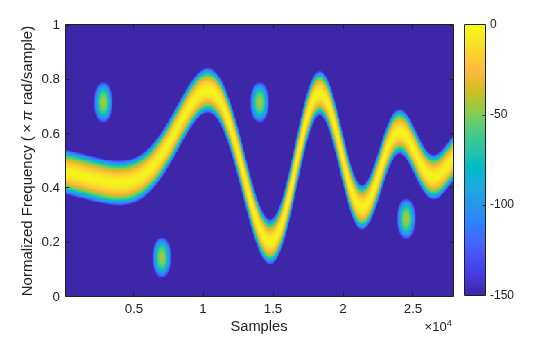

Plot the STFT along normalized frequencies and samples.

function tfImage(s,f,t,xlbl,ylbl)
    imagesc(t,f,s)
    axis xy
    xlabel(xlbl)
    ylabel(ylbl)
    colorbar
    clim([-150 0])
end

wn = w/pi;
tfImage(s,wn,n,"Samples","Normalized Frequency (\times\pi rad/sample)")

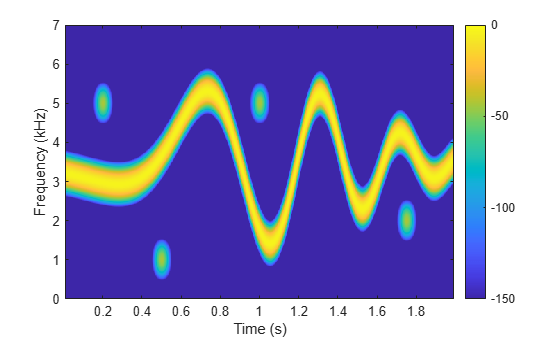

Get the STFT map to be used in time-frequency labeling. Plot the STFT along cyclical frequencies and midpoint-segment times.

[s,f,t] = getTFMap(opts,vcoOut,Fs);

fn = f/1e3;
tfImage(s,fn,t,"Time (s)","Frequency (kHz)")

Input Arguments

opts — Spectrogram options

labelSpectrogramOptions object

Spectrogram options, specified as a labelSpectrogramOptions object.

Example: opts = labelSpectrogramOptions("windowlength",Window="chebyshev") specifies a labelSpectrogramOptions object that stores spectrogram options for time-frequency labeling.

x — Input signal

vector | timetable

Input signal, specified as a vector or MATLAB^® timetable with uniformly sampled times and one variable comprising a column vector.

Example: x = chirp(0:1e-3:1,0,0.5,100,"quadratic") specifies a quadratic swept-frequency signal.

Example: x = timetable(seconds(0:1e-3:1)',chirp(0:1e-3:1,0,0.5,100,"quadratic")') specifies a timetable containing a quadratic swept-frequency signal.

Data Types: single | double
Complex Number Support: Yes

Fs — Sample rate

[] (default) | positive scalar

Sample rate, specified as a positive scalar.

• If you specify Fs, then getTFMap assumes that the input signal x has a sample rate of Fs Hz.

• If you do not specify Fs or set it to empty [], then getTFMap uses a normalized sample rate.

Do not specify Fs if you specify x as a timetable. The getTFMap function infers the sample rate from the time values specified in x.

Output Arguments

s — STFT output

matrix

Size of STFT of input signal, returned as a matrix. Time increases across the columns of s and frequency increases down the rows.

f — Frequencies associated with STFT output

vector

Frequencies associated with STFT output, returned as a vector.

• If you specify Fs, then f contains cyclical frequencies in Hz.

• If you do not specify Fs, then f contains normalized frequencies in radians/sample.

The frequencies that the getTFMap function returns in f depends on the resolution type of the spectrogram (opts.ResolutionType), on whether x is real-valued or complex-valued, and on whether you specify the sample rate, Fs.

opts.ResolutionType	x	Frequency Range for f
		Fs Unspecified	Fs Specified
"leakage"	Real-valued	[0,π] rad/sample	[0,Fs/2] Hz
	Complex-valued	[–π,π] rad/sample	[–Fs/2,Fs/2] Hz
"rbw" or "windowlength"	Real-valued	[0,π] rad/sample	[0,Fs/2] Hz
	Complex-valued	(–π,π] rad/sample	(–Fs/2,Fs/2] Hz

t — Times associated with STFT output

vector

Times associated with STFT output, returned as a vector.

• If you specify Fs, then t contains time instants in seconds.

• If you do not specify Fs, then t contains sample indices in sample numbers.

The values in t correspond to the midpoint of each segment.

Version History

Introduced in R2026a
