Scripting in Parallel Link Projects

Use MATLAB scripting commands to control the Parallel Link Designer app

You can use MATLAB^® scripts in the command window to control the Parallel Link Designer app. Scripting allows you to:

Open a signal integrity project.
Select a sheet.
Access the data in the project or sheet.
Set up simulations.
Run simulations.
Analyze and compare the simulation results.

Objects

`SignalIntegrityProject`	Create Signal Integrity Toolbox project object (Since R2023a)
`SignalIntegrityInterface`	Return interface object of given Signal Integrity Toolbox project object (Since R2023a)
`SignalIntegritySheet`	Return sheet object of given Signal Integrity Toolbox interface object (Since R2023a)
`SignalIntegrityState`	Return state object of given Signal Integrity Toolbox sheet object (Since R2023a)
`SignalIntegritySimulation`	Return simulation object of given Signal Integrity Toolbox sheet object (Since R2023a)
`SignalIntegrityWaveform`	Return waveform object of given Signal Integrity Toolbox simulation object (Since R2023a)

Topics

Access Project Data from MATLAB Command Window
Access project data from MATLAB command window to create your own evaluation environment.
Control Project from MATLAB Command Window
Control project from MATLAB command window to create your own evaluation environment.

Featured Examples

Using Signal Integrity Toolbox Analog Channels in SerDes Toolbox

SerDes Toolbox™ has a variety of channel modeling options such as a loss-based channel, user provided impulse response matrix, or importing an s-parameter. To gain more channel modeling flexibility including via models, w-lines, concatenating s-parameters, and full IBIS analog model support, Signal Integrity Toolbox™ is the best choice. With access to Signal Integrity Toolbox project data from the MATLAB® command window, you can combine the best abilities for both toolboxes for ultimate flexibility.

Open Live Script

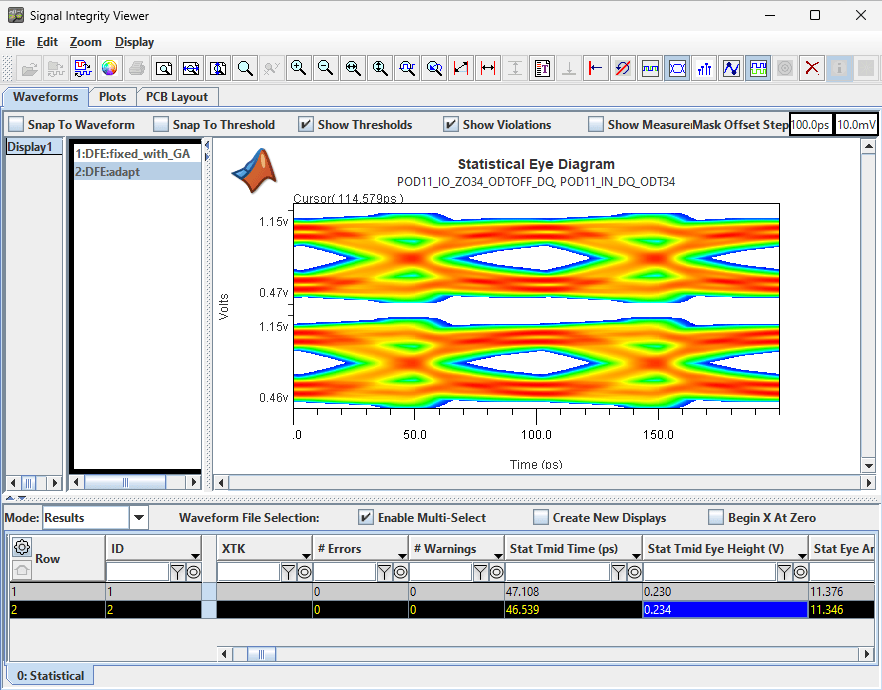

Optimize DDR5 Write Transfer Using Digital Twin

Optimize the on-die terminations (ODT), controller Tx FFE equalization settings, and SDRAM Rx DFE equalization settings for a DDR5 write transfer.

Open Live Script
