camheading

Set or get heading angle of camera for Satellite Scenario Viewer

Since R2021a

Syntax

camheading(viewer,heading)

outHeading = camheading(viewer,___)

Description

camheading(viewer,heading) sets the heading angle of the camera for the specified Satellite Scenario Viewer. Setting the heading angle shifts the camera left or right about its z-axis.

outHeading = camheading(viewer,___) returns the heading angle of the camera. If the second input is heading, then the function sets the output equal to the input heading.

Examples

Set Camera Heading Angle of Satellite Scenario Viewer

Create a satellite scenario object.

sc = satelliteScenario;

Add a ground station to the scenario.

latitude = 42.3001;                         % degrees
longitude = -71.3504;                       % degrees
groundStation(sc,latitude+0.05,longitude);

Launch the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

In the Satellite Scenario Viewer, set the height of the camera to 50 meters.

height = 50;                        % meters
campos(v,latitude,longitude,height);
pause(2);

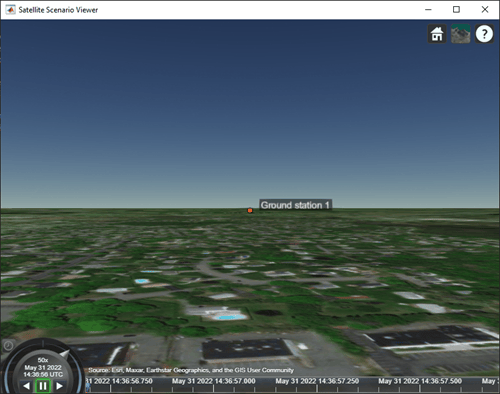

Set the pitch angle of the camera to 0 degrees.

pitch = 0;
campitch(v,pitch);
pause(2);

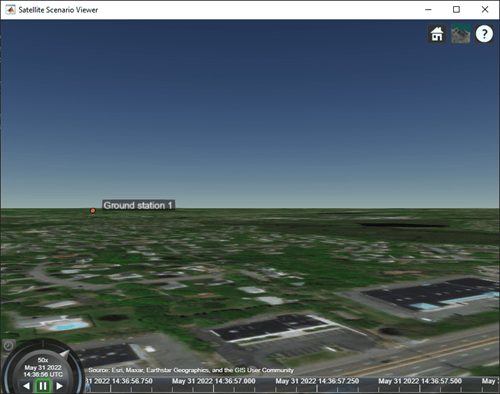

Set the heading angle of the camera to 20 degrees.

heading = 20;         % degrees
camheading(v,heading);

Input Arguments

viewer — Satellite Scenario Viewer

satelliteScenarioViewer object

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.¹

heading — Heading angle of camera

360 (default) | numeric scalar in the range [–360, 360]

Heading angle of the camera in degrees, specified as a scalar value in the range [–360, 360].

Output Arguments

outHeading — Camera heading angle

numeric scalar in the range [-360, 360]

Camera heading angle in degrees, returned as a numeric scalar.

Tips

• When the pitch angle is near –90 (the default value) or 90 degrees, the camera loses one rotational degree of freedom. As a result, when you change the roll angle, the heading angle might change instead. This phenomenon is called gimbal lock. To avoid the effects of gimbal lock, call the camheading function instead of the camroll function.

Version History

Introduced in R2021a
