Automated Parking Valet with ROS in Simulink
Distribute an automated parking valet application among various nodes in a ROS network in Simulink®. This example extends the Automated Parking Valet (Automated Driving Toolbox) example in the Automated Driving Toolbox™. Using the Simulink model in the Automated Parking Valet in Simulink example, tune the planner, controller and vehicle dynamics parameters before partitioning the model into ROS nodes.

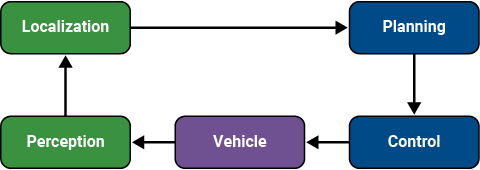

A typical autonomous vehicle application has the following workflow.
This example concentrates on simulating the Planning, Control and the Vehicle components. For Localization, this example uses pre-recorded map localization data. The Planning component are further divided into Behavior planner and Path Planner components. This results in a ROS network comprised of four ROS nodes:

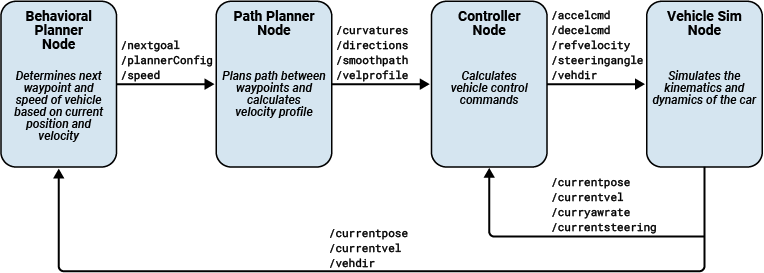

Vehicle Sim. The following figure shows the relationships between each ROS node in the network and the topics used in each.
Explore the Simulink ROS nodes and connectivity
Observe the division of the components into four separate Simulink models. Each Simulink model represents a ROS node that sends and receives messages on different topics.

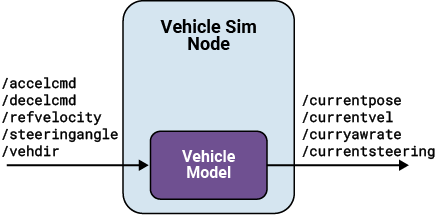

Vehicle Sim Node
1. Open the vehicle model.
Vehicle model subsystem contains a Bicycle Model (Automated Driving Toolbox) block,
Vehicle Body 3DOF, to simulate the vehicle controller effects and sends the vehicle information over the ROS network through ROS Publish blocks in the

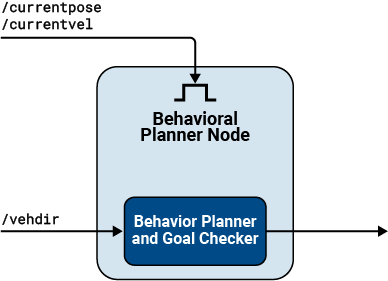

Behavioral Planner Node
1. Open the behavioral planner model.
2. This model reads the current vehicle pose, velocity, and direction from the ROS network, and sends the next goal. It checks if the vehicle has reached the goal pose of the segment using
Goal Checker model runs when a new message is available on either
4. The model sends the status if the vehicle has reached the parking goal using the
/reachgoal topic, which uses a
std_msgs/Bool message. All the models stop simulation when this message is

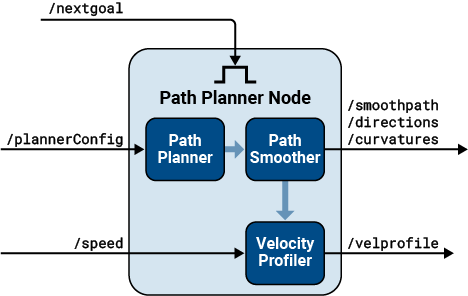

Path Planner Node
1. Open the path planner model.
2. This model plans a feasible path through the environment map using a
pathPlannerRRT (Automated Driving Toolbox) object, which implements the optimal rapidly exploring random tree (RRT*) algorithm and sends the plan to the controller over the ROS network.
Path Planner subsystem runs when a new message is available on

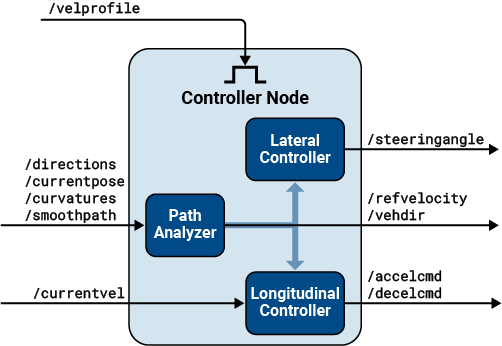

1. Open the vehicle controller model.
2. This model calculates and sends the steering and velocity commands over the ROS network.
3. The Controller subsystem runs when a new message is available on the
Simulate the ROS nodes to verify partitioning
Verify that the behavior of the model remains the same after partitioning the system into four ROS nodes.
rosinit in MATLAB® Command Window to initialize the global node and ROS master
Launching ROS Core... Done in 1.0312 seconds. Initializing ROS master on http://172.29.199.134:54041. Initializing global node /matlab_global_node_25433 with NodeURI http://dcc664524glnxa64:34069/ and MasterURI http://localhost:54041.
2. Load the pre-recorded localization map data in MATLAB base workspace using the
exampleHelperROSValetLoadLocalizationData helper function.
3. Open the simulation model.
In the left parking selection area, you can also select a spot. The default parking spot is the sixth spot at the top row.
4. In the SIMULATION tab, click Run from SIMULATE section or run

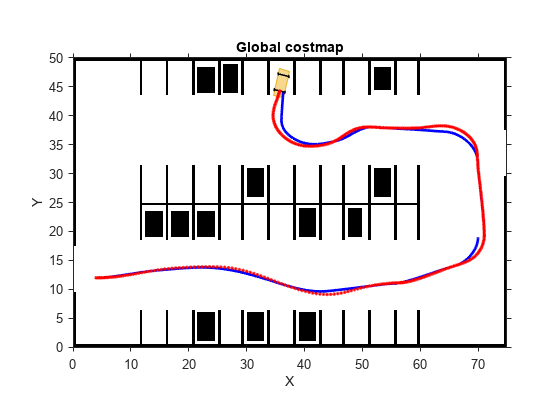

sim('ROSValetSimulationExample.slx') in MATLAB Command Window. A figure opens and shows how the vehicle tracks the reference path. The blue line represents the reference path while the red line is the actual path traveled by the vehicle. Simulation for all the models stop when the vehicle reaches the final parking spot.
Visualization subsystem in the vehicle model generates the results for this example.

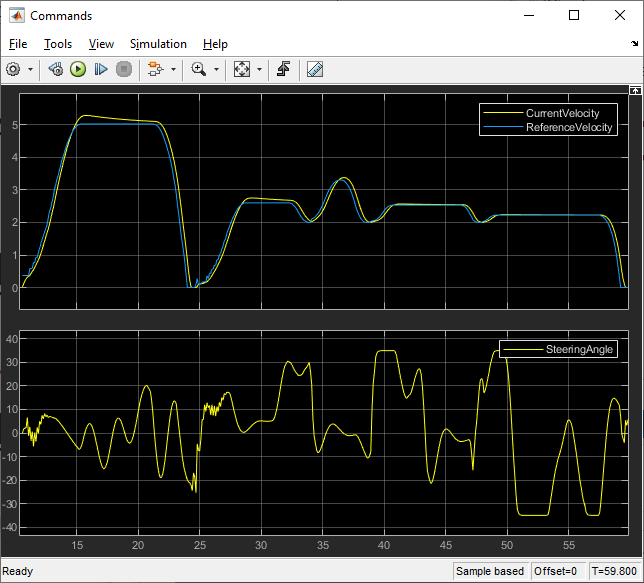

isualizePath block is responsible for creating and updating the plot of the vehicle paths shown previously. The vehicle speed and steering commands are displayed in a scope.
Deploy ROS Nodes
Generate ROS applications for
Controller nodes, and simulate the
Vehicle node in MATLAB and compare the results with simulation. For more informaiton on generating ROS notes, see Generate a Standalone ROS Node from Simulink.
1. Deploy the
Path planner and
Controller ROS nodes.
2. Open the vehicle model.
3. From the Simulation tab, click Run to start the simulation.
4. Observe the vehicle movement on the plot and compare the results from simulation run.
5. Shut down the ROS network using
Shutting down global node /matlab_global_node_25433 with NodeURI http://dcc664524glnxa64:34069/ and MasterURI http://localhost:54041. Shutting down ROS master on http://172.29.199.134:54041.
