Getting Started with Connecting and Controlling a UR5e Cobot from Universal Robots Using RTDE Interface

This example uses:

Robotics System Toolbox Support Package for Universal Robots UR Series Manipulators Robotics System Toolbox Support Package for Universal Robots UR Series Manipulators

This example shows how to use the urRTDEClient object to connect to a Universal Robots cobot and move the robot using joint space control, task space control, waypoint tracking in task space, and waypoint tracking in joint space. This example uses Robotics Systems Toolbox™ Support Package for Universal Robots UR Series Manipulators.

By default, the example uses the Universal Robots UR5e cobot model to simulate. You can choose between URSim simulator or UR hardware to run this example.

This example uses the functionalities offered by the urRTDEClient object to connect with simulated or physical cobot using the TCP network. Once the connection is established with the cobot, you can use various object functions of urRTDEClient to manipulate the cobot.

Clear all output in the live script by right-clicking anywhere in the live script and then clicking ‘Clear All Output’ or navigate to VIEW > Clear all Output.

Note: Execute the script section by section as mentioned in this example.

Required Products

Robotics System Toolbox™
Robotics System Toolbox™ Support Package for Universal Robots UR Series Manipulators

Prerequisites

Complete initial setup to establish communication between MATLAB and URSim or between MATLAB and UR Series hardware. For more information, see Set Up URSim Offline Simulator for RTDE or Set Up UR Series Cobot for RTDE.

Initialize urRTDEClient Interface

Specify the IP address of UR controller and the cobot name.

ur = urRTDEClient('192.168.75.134','CobotName','universalUR5e')

ur =
  urRTDEClient with properties:

            CobotName: 'universalUR5e'
       URControllerIP: '192.168.75.134'
    ControllerVersion: '5.11.1.0'
        RTDEFrequency: 125
    ConnectionTimeOut: 10

The urRTDEClient object has several useful properties. The CobotName property contains the name of the rigid body tree model required to be loaded. This is used internally for trajectory generation and motion planning for the cartesian pose to joints estimation. You can use RigidBodyTree.show() to visualize the robot manipulator in MATLAB. The RTDEFrequency sets the frequency at which data is sampled and exchanged between the MATLAB Client and UR Control server.

Read Various Robot State Data

Read current joint angle configuration with a timeout of 10 seconds. The readJointConfiguration function returns the current joint angle of the cobot in the range of -2pi to 2pi. The order of the joints is similar to the rigid body tree model.

jointAngles = readJointConfiguration(ur)

jointAngles = 1×6

    0.0027   -1.5700   -1.5699    0.0001   -0.0000    3.1399

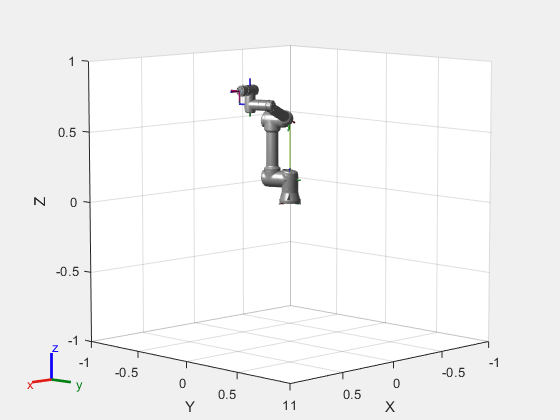

Show the robot in current joint configuration

show(ur.RigidBodyTree,jointAngles)

ans =
  Axes (Primary) with properties:

             XLim: [-1.5000 1.5000]
             YLim: [-1.5000 1.5000]
           XScale: 'linear'
           YScale: 'linear'
    GridLineStyle: '-'
         Position: [0.1300 0.1100 0.7750 0.8150]
            Units: 'normalized'

  Show all properties

Read current end-effector pose

The readCartesianPose function returns current cartesian pose of the end-effector in the form of [thetaz thetay thetax X Y Z] with units [rad rad rad m m m].

pose = readCartesianPose(ur)

pose = 1×6

    0.0027   -0.0001    1.5708    0.3923   -0.2318    0.6879

Read the current velocity of each joint

The readJointVelocity function returns current joint angle velocity of the manipulator. The unit is rad/s.

jointVelocity = readJointVelocity(ur)

jointVelocity = 1×6

     0     0     0     0     0     0

Read the current end-effector velocity

The readEndEffectorVelocity method returns the velocity of the end-effector in the form of [theta_dotz theta_doty theta_dotx Vx Vy Vz] with units [rad/s rad/s rad/s m/s m/s m/s].

eeVelocity = readEndEffectorVelocity(ur)

eeVelocity = 1×6

     0     0     0     0     0     0

Control the UR5e Cobot

Joint Space Control

Command the robot to reach to desired joint configuration and wait for the robot to complete the motion

The expected input to sendJointConfigurationAndWait function is desired joint configuration in the range of -pi to pi for all six joints. It also accepts an optional argument EndTime in seconds, The cobot tries to complete the motion from current joint configuration to desired joint configuration within the specified EndTime. The default value of EndTime is 5 seconds.

This method has a blocking function call and it waits for the robot to complete the motion. The result is 'true' if the robot motion has been completed successfully and 'false' otherwise. The state output contains more information about the status of the robot motion.

jointWaypoints = [0 -90 0 -90 0 0]*pi/180;
[result,state] = sendJointConfigurationAndWait(ur,jointWaypoints,'EndTime',5) %#ok<ASGLU>

result = logical
   1

state =
'Succeeded'

Command the robot to reach to desired joint configuration

The expected input to sendJointConfiguration method is a desired joint configuration in the range of -pi to pi for all six joints. It also accepts an optional argument EndTime in seconds, The cobot tries to complete the motion from current joint configuration to desired joint configuration within the specified EndTime. The default value of EndTime is 5 seconds.

jointWaypoints = [20 -90 -70 -20 70 0]*pi/180;

Visualize the robot in desired joint angle configuration

show(ur.RigidBodyTree,jointWaypoints);

Command the cobot to move to desired joint angle configuration.

sendJointConfiguration(ur,jointWaypoints,'EndTime',5);

Record the robot data during the motion

The recordRobotState function allows you to record joint configuration cobot data during the cobot's motion. This method is currently supported for sendJointConfiguration. Once the move command is initiated, the path can be recorded using this command.

data = recordRobotState(ur,10,0.5)

data = 20×6

    0.0001   -1.5708   -0.0002   -1.5706    0.0002   -0.0000
    0.0063   -1.5708   -0.0221   -1.5487    0.0221   -0.0000
    0.0227   -1.5708   -0.0794   -1.4914    0.0794   -0.0000
    0.0486   -1.5708   -0.1701   -1.4007    0.1701   -0.0000
    0.0843   -1.5708   -0.2949   -1.2759    0.2949   -0.0000
    0.1300   -1.5708   -0.4549   -1.1158    0.4549   -0.0000
    0.1777   -1.5708   -0.6221   -0.9487    0.6221   -0.0000
    0.2255   -1.5708   -0.7893   -0.7815    0.7893   -0.0000
    0.2703   -1.5708   -0.9460   -0.6248    0.9460         0
    0.3052   -1.5708   -1.0681   -0.5027    1.0681         0
      ⋮

Wait for the robot to complete the motion

[result,~] = readMotionStatus(ur);
while ~result
    [result,~] = readMotionStatus(ur);
end

Task Space Control

Command the cobot to reach to desired cartesian pose and wait for the robot to complete the motion

The expected input to sendCartesianPoseAndWait function is desired end-effector pose in the form of [thetaz thetay thetax X Y Z]. It also accepts an optional argument EndTime in seconds, The cobot tries to complete the motion from current pose to the desired pose within the specified EndTime. The defualt value of EndTime is 5 seconds.

This method has a blocking function call and it waits for the cobot to complete the motion. The result will be 'true' if the cobot motion has been completed successfully and 'false' otherwise. The state output contains more information about the status of the cobot motion.

desPos = [-pi/2  0  -pi/2 0.5    0    0.8];
[result,state] = sendCartesianPoseAndWait(ur,desPos,'EndTime',2)

result = logical
   1

state =
'Succeeded'

Task Space Waypoint Tracking

Command robot to follow desired set of task waypoints

The expected input to followCartesianWaypoints function is a set of cartesian waypoints and the time from start to reach each waypoint. The cartesian waypoints are interpolated interanally using the minjerkpoly to move the cobot.

taskWayPoints = [-pi/2    0  -pi/2 0.5     0  0.5;
                 -pi/4    0  -pi/2 0.5   0.3  0.6;
                 -pi/2    0  -pi/2 0.5     0  0.8;
                 -3*pi/4  0  -pi/2 0.5  -0.3  0.6;
                 -pi/2    0  -pi/2 0.5     0  0.5];

wayPointTimes = [0 2 4 6 8];
followCartesianWaypoints(ur,taskWayPoints,wayPointTimes);

Joint Space Waypoint Tracking

Command robot to follow desired set of joint waypoints

The followJointWaypoints function enables the cobot to pass through the specified set of joint waypoints. The expected input to followJointWaypoints is joint position, and the waypoint times for the robot motion.

jointwayPoints = [-20 -85 110 150 -70 0;
                  -10 -70  80 200 -70 0;
                    0 -40  90 270 -70 0;
                  -10 -70  80 200 -70 0;
                  -20 -85 110 150 -70 0;]*pi/180;

waypointTimes = [0 2 4 6 8];
trajTimes = linspace(0.5,waypointTimes(end),10);

% Get the smooth joint trajectory with 10 jointspace points
q = bsplinepolytraj(jointwayPoints',[0 waypointTimes(end)],trajTimes);

% send the trajectory
followJointWaypoints(ur,q,trajTimes)

Move the cobot in Joint space using ServoJ and SpeedJ commands

sendServoJCommands(ur,jointconfig) commands the Universal Robots cobot connected through RTDE interface, based on the specified joint configuration.

The gain parameter works the same way as the P-term of a PID controller, where it adjusts the current position towards the desired position. The higher the gain, the faster will be the cobot's recation. The parameter 'LookAheadTime' is used to project the current position forward in time with the current velocity. A low value gives fast reaction, a high value prevents overshoot.

jointWaypoints = [0.0,-1.57,-1.57,0,0,3.14];
sendServoJCommands(ur, jointWaypoints, "LookAheadTime",0.05, "PGain",500)

sendSpeedJCommand(ur,jointVelocities) accelerates the cobot linearly in joint space and continue with constant joint speed. The EndTime argument is optional; if specified, the function will return after EndTime, regardless of the target speed has been reached. If the EndTime is not provided, the function will return when the target speed is reached.

% Moves the wrist3 joint at a constant velocity
jointVelocities = [0.1 0 0 0 0 0];
sendSpeedJCommands(ur,jointVelocities);

Clear the object.

clear ur
