Send KINOVA Gen3 Robot Arm to Desired Cartesian Pose

This example shows you how to connect to the KINOVA Gen3 7-DoF Ultralightweight Robot arm with with Simulink® using Robot Operating System (ROS). This includes ROS message Subscribe and Publish blocks to get feedback from the robot and then send commands to the robot to reach a particular Cartesian configuration.

Products Required


  • Simulink

  • Robotics System Toolbox™

  • ROS Toolbox

Hardware Required

KINOVA® Gen3 Robot


Robotics System Toolbox Support Package for KINOVA Gen3 Manipulators enables you to control manipulators using MATLAB and Simulink. This support package utilizes ROS packages provided by robot manufacturers to acquire various sensor data, simulate robot models, and control the robot. You can prototype algorithms and perform simulations of these robots using rigid body tree models from Robotics System Toolbox or Simscape™ Multibody™ robot models. This support package also allows you to connect with the robot hardware to test and validate your algorithms.

In this example /my_gen3/base_feedback/ ROS message is used to get current Cartesian configuration of KINOVA Gen3 robot. Then /my_gen3/base/play_cartesian_trajectory custom ROS service is used to send commands to a robot to follow a desired joint configuration.



Open the manipdemo_setCartesianROS model.

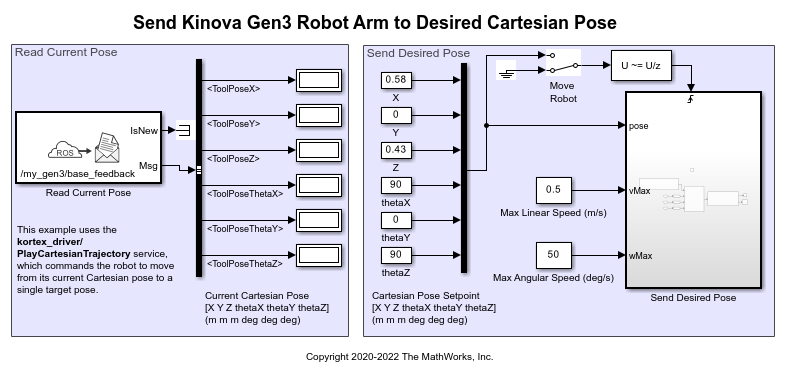

The model consists of a ROS Subscriber block which is configured for /my_gen3/joint_states ROS topic. As explained in the GitHub page of Kinova Robotics, the first part of the ROS topic, 'my_gen3' might be different based on the robot name set during the roslaunch command. From the received message, information about the current Cartesian pose is extracted and displayed on various Display blocks. These values can be used as a reference while providing the Cartesian setpoint to the robot. Further, user specified Cartesian setpoint is given to the Send Desired Pose subsystem.

Send Desired Pose

This subsystem consists of three different blocks. The Blank ROS message block , first from the left, is configured to create a blank message for kortex_driver/PlayCartesianTrajectoryRequest ROS service request. The MATLAB function block, packCartesianTraj assigns various values such as desired Cartesian configuration, type of constraint, and maximum velocity to blank message fields. The call service block is configured for /my_gen3/base/play_cartesian_trajectory service and for sending commands to robot to reach the desired Cartesian configuration.

Run the Model

Note: Ensure that the E-STOP is close to you to stop the movement of robot, as the robot moves according to the specified Cartesian setpoint.

After launching required ROS nodes and connecting to the ROS network, click Simulate on the Simulink toolbar and then click Run. The robot will not move from the current position at the start as there is no change in the joint angle offset. The 'Move Robot manual switch is initially connected to a ground, so the Send Desired Pose subsystem will not trigger. Now, change the desired Cartesian pose and then change the state of 'Move Robot' manual switch. This triggers the Send Desired Pose subsystem and the robot moves to the desired Cartesian configuration.
