Control Individual Joint Angle of KINOVA Gen3 Robot

This example shows you how to connect to the KINOVA Gen3 7-DoF Ultralightweight Robot arm with Simulink® using Robot Operating System (ROS). This includes ROS message Subscribe and Publish blocks to get feedback from the robot and then send commands to the robot to reach a particular joint configuration.

Products Required

  • MATLAB®

  • Simulink

  • Robotics System Toolbox™

  • ROS Toolbox

Hardware Required

KINOVA® Gen3 Robot

Introduction

Robotics System Toolbox Support Package for KINOVA Gen3 Manipulators enables you to control manipulators using MATLAB and Simulink. This support package utilizes ROS packages provided by robot manufacturers to acquire various sensor data, simulate robot models, and control the robot. You can prototype algorithms and perform simulations of these robots using rigid body tree models from Robotics System Toolbox or Simscape™ Multibody™ robot models. This support package also allows you to connect with the robot hardware to test and validate your algorithms.

In this example, sensor_msgs/JointState ROS message is used to get current joint configuration of Kinova Gen3 robot.

Prerequisites

Model

Open the manipdemo_setJointAnglesROS model.

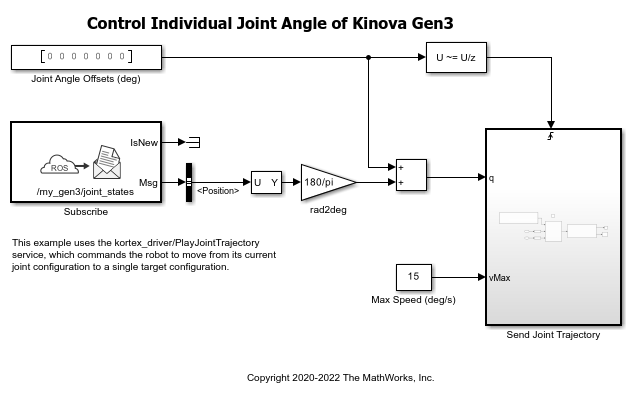

The model consists of a ROS subscriber block which is configured for /my_gen3/joint_states ROS topic. As explained in the GitHub page of Kinova Robotics, the first part of the ROS topic, 'my_gen3' might be different based on the robot name set during the roslaunch command. Current joint angles are extracted from the received message and then converted to degrees. Further, user specified offset in each joint angle is added to the current value and given to the Send Joint Trajectory subsystem.

Send Joint Trajectory

This subsystem consists of three different blocks. The Blank ROS message block, first from the left, is configured to create a blank message for kortex_driver/PlayJointTrajectoryRequest ROS service request. The MATLAB function block packJointTraj, assigns various values such as desired joint configuration, type of constraint, and maximum velocity to blank message fields. The call service block is configured for /my_gen3/base/play_joint_trajectory service and sends commands to robot to reach the desired joint configuration.

Run the Model

Note: Ensure that the E-STOP is close to you to stop the movement of robot, as the robot moves according to the specified offset.

After launching required ROS nodes and connecting to the ROS network, click Simulate on the Simulink toolbar and then click Run. The robot will not move from the current position at the start as there is no change in the joint angle offset. Now change the offset values and apply the change. This triggers the Send Joint Trajectory subsystem and the robot moves to the desired joint angle configuration.
