ubendRightAngle

Create right-angle U-bend shape on X-Y plane

Since R2021b

Description

Use the ubendRightAngle object to create a right-angle U-bend shape on the X-Y plane.

Creation

Syntax

bend = ubendRightAngle

bend = ubendRightAngle(Name=Value)

Description

bend = ubendRightAngle creates a right-angle U-bend shape on the X-Y plane.

bend = ubendRightAngle(Name=Value) sets Properties using one or more name-value arguments. For example, ubendRightAngle(ReferencePoint=[1 1]) creates a right-angle U-bend at the reference point [1 1]. Properties not specified retain their default values.

Properties

Name — Name of right-angle U-bend

'myRightAngleubend' (default) | character vector | string scalar

Name of the right-angle U-bend, specified as a character vector or a string scalar.

Example: bend = ubendRightAngle(Name="ubendrightangle1")

Data Types: char | string

ReferencePoint — Reference point of right-angle U-bend

[0 0] (default) | two-element vector

Reference point of the right-angle U-bend in Cartesian coordinates, specified as a two-element vector.

Example: bend = ubendRightAngle(ReferencePoint=[1 2])

Data Types: double

Length — Length of right-angle U-bend

[0.0150 0.0050 0.0150] (default) | three-element vector

Length of the right-angled U-bend in meters, specified as a three-element vector of positive elements.

Example: bend = ubendRightAngle(Length=[0.0250 0.0150 0.0250])

Data Types: double

Width — Width of right-angle U-bend

[0.0050 0.0050 0.0050] (default) | three-element vector

Width of the right-angle U-bend in meters, specified as a three-element vector of positive values.

Example: bend = ubendRightAngle(Width=[0.0150 0.0150 0.0010])

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
mirrorX	Mirror shape along X-axis
mirrorY	Mirror shape along Y-axis
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Default Right-Angle U-Bend

Create a right-angle U-bend with default properties.

bend = ubendRightAngle

bend =
  ubendRightAngle with properties:

              Name: 'myRightAngleubend'
    ReferencePoint: [0 0]
            Length: [0.0150 0.0050 0.0150]
             Width: [0.0050 0.0050 0.0050]

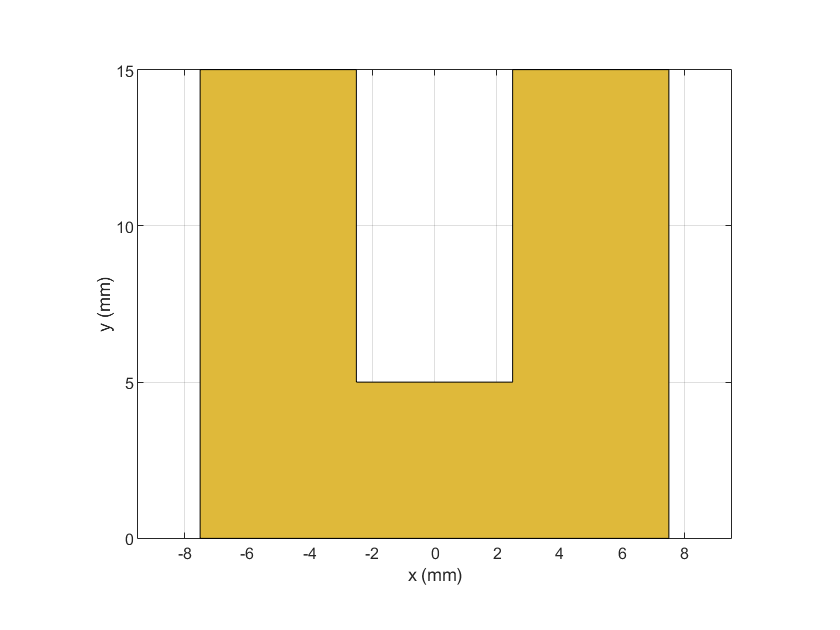

View the shape.

show(bend)

Version History

Introduced in R2021b
