splitRing

Create split ring shape on X-Y plane

Since R2023a

Description

Use the splitRing object to create a split-ring shape centered at the origin on the X-Y plane.

Creation

Syntax

splitringshape = splitRing

splitringshape = splitRing(Name=Value)

Description

splitringshape = splitRing creates a split-ring shape centered at the origin and on the X-Y plane.

splitringshape = splitRing(Name=Value) sets Properties using one or more name-value arguments. For example, splitRing(ReferencePoint=[1 1]) creates a split ring shape at the reference point [1 1]. Properties not specified retain their default values.

Properties

Name — Name of split-ring shape

'mysplitring' (default) | character vector | string scalar

Name of the split-ring shape, specified as a character vector or string scalar.

Example: splitringshape = splitRing(Name='splitringshape1')

Data Types: char | string

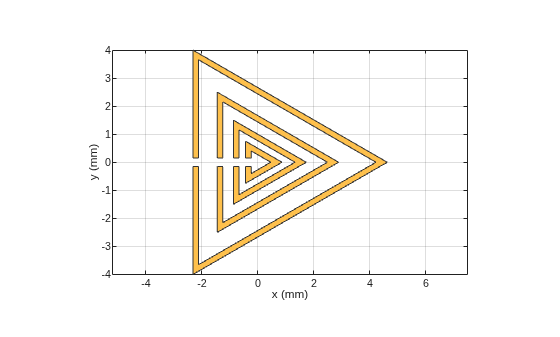

Type — Shape of split ring

'Circle' (default) | 'Triangle' | 'Square' | 'Hexagon' | 'Octagon'

Shape of split ring, specified as: 'Circle', 'Triangle', 'Square', 'Hexagon', or 'Octagon'.

Example: splitringshape = splitRing(Type='Hexagon')

Data Types: char

ReferencePoint — Reference point

[0 0] (default) | two-element vector

Reference point of the split-ring shape in Cartesian coordinates, specified as a two-element vector.

Example: splitringshape = splitRing(ReferencePoint=[1 1])

Data Types: double

RingDiameterInner — Diameter of inner ring

0.0015 (default) | positive scalar

Diameter of the inner ring in meters, specified as a positive scalar.

Example: splitringshape = splitRing(RingDiameterInner=0.0025)

Dependencies

To enable this property, set Type to 'Circle'.

Data Types: double

RingDiameterOuter — Diameter of outer ring

0.0030 (default) | positive scalar

Diameter of the outer ring in meters, specified as a positive scalar.

Example: splitringshape = splitRing(RingDiameterOuter=0.0040)

Dependencies

To enable this property, set Type to 'Circle'.

Data Types: double

SideLengthInner — Side length of inner ring

0.0015 (default) | positive scalar

Side length of the inner ring in meters, specified as a positive scalar.

Example: splitringshape = splitRing(SideLengthInner=0.0025)

Dependencies

To enable this property, set Type to 'Triangle', 'Hexagon', 'Square', or 'Octagon'.

Data Types: double

SideLengthOuter — Side length of outer ring

0.0030 (default) | positive scalar

Side length of the outer ring in meters, specified as a positive scalar.

Example: splitringshape = splitRing(SideLengthOuter=0.0030)

Dependencies

To enable this property, set Type to 'Triangle', 'Hexagon', 'Square', or 'Octagon'.

Data Types: double

TraceWidth — Width of inner and outer ring

2.0000e-04 (default) | positive scalar

Width of the inner and the outer rings in meters, specified as a positive scalar.

Example: splitringshape = splitRing(TraceWidth=5.0000e-04)

Data Types: double

SplitAngle — Angle of split

[0 0] (default) | two-element vector

Angle of the split between the inner and outer ring in degrees, specified as a two-element vector.

Example: splitringshape = splitRing(SplitAngle=[10 10])

Dependencies

To enable this property, set Type to 'Circle'.

Data Types: double

SplitSide — Side of split in polygon

[1 1] (default) | two-element vector

Side of the split between the inner and outer ring in meters, specified as a two-element vector.

Example: splitringshape = splitRing(SplitSide=[2 2])

Dependencies

To enable this property, set Type to 'Triangle', 'Hexagon', 'Square', or 'Octagon'.

Data Types: double

SplitGap — Width of split

3.0000e-04 (default) | positive scalar

Width of split on both inner and outer ring in meters, specified as a positive scalar.

Example: splitringshape = splitRing(SplitSide=2.0000e-04)

Dependencies

To enable this property, set Type to 'Triangle', 'Hexagon', 'Square', or 'Octagon'.

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Split-Ring Shape with Default Values

Create a default split-ring shape.

splitringshape = splitRing

splitringshape =
  splitRing with properties:

                 Name: 'mysplitring'
                 Type: 'Circle'
       ReferencePoint: [0 0]
    RingDiameterInner: 0.0015
    RingDiameterOuter: 0.0030
           TraceWidth: 2.0000e-04
             SplitGap: 3.0000e-04
           SplitAngle: [0 0]

View the shape.

show(splitringshape)

Hexagonal Split Ring

Create a hexagonal split ring.

splitringshape = splitRing('Type','Hexagon');
show(splitringshape)

Mesh it with maximum edge length of 0.5 mm.

figure; mesh(splitringshape,'MaxEdgeLength',0.5e-3);

Version History

Introduced in R2023a
